24
3-WIRE POWER SUPPLY CONNECTION
IMPORTANT: Use the 3-wire cable from power supply where local codes
permit connecting the frame-ground conductor to the neutral (white) junction
box wire.
1. Disconnect power.
2. Remove junction box cover, if present.
3. Connect the flexible cable conduit from the cooktop to the junction box
using a UL listed or CSA approved conduit connector.
4. Tighten screws on conduit connector if present.
5. Connect the two black wires together using the UL listed wire connectors.
6. Connect the two red wires together using the UL listed wire connectors.
7. Connect the green wire to the white (neutral) wire in the junction box
using the UL listed wire connectors.
8. Install junction box cover, and reconnect power.

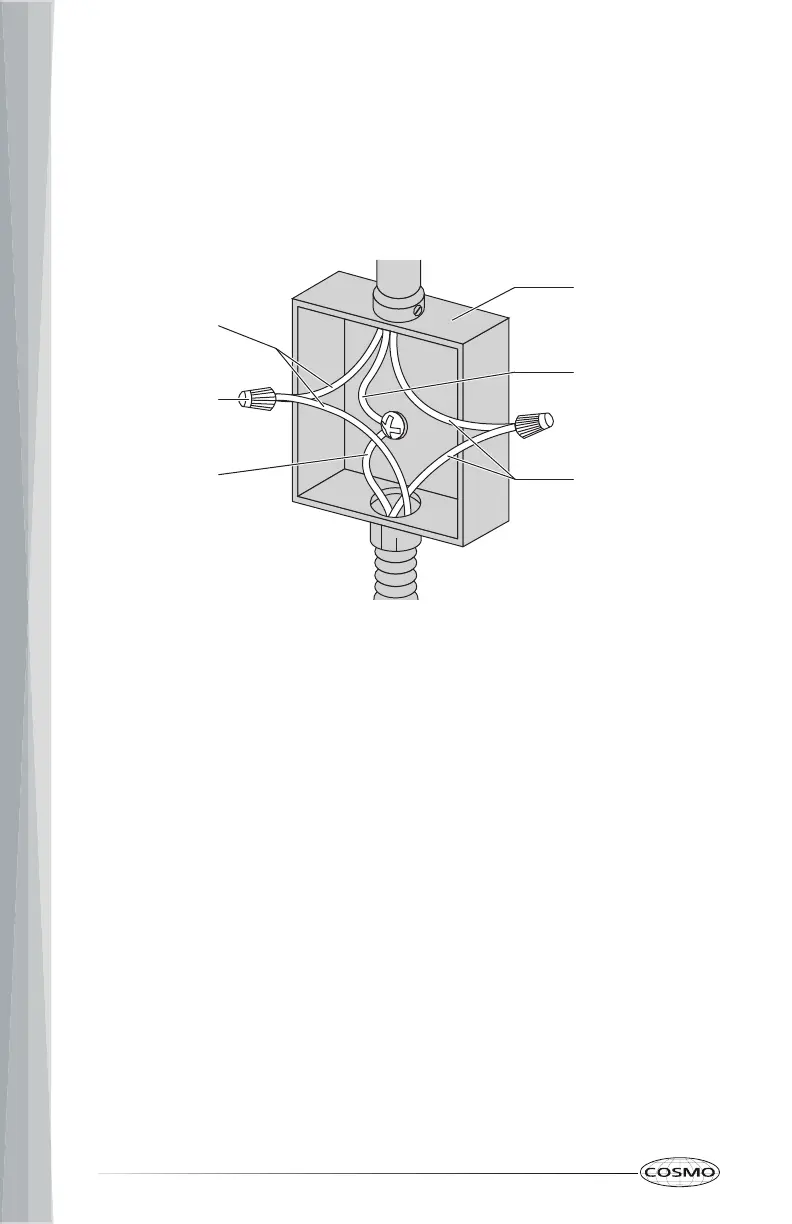

3-Wire Cable from Power Supply
3-Wire Cable from Cooktop
Red Wires
Black Wires
Green
Ground Wire
White Wire
Junction Box
UL Listed or CSA
Approved Wire
Connector
