COSMO
High
‐
efficiency
pump
CPH
2.0
39
7.3.4.
Electrical
connection
–

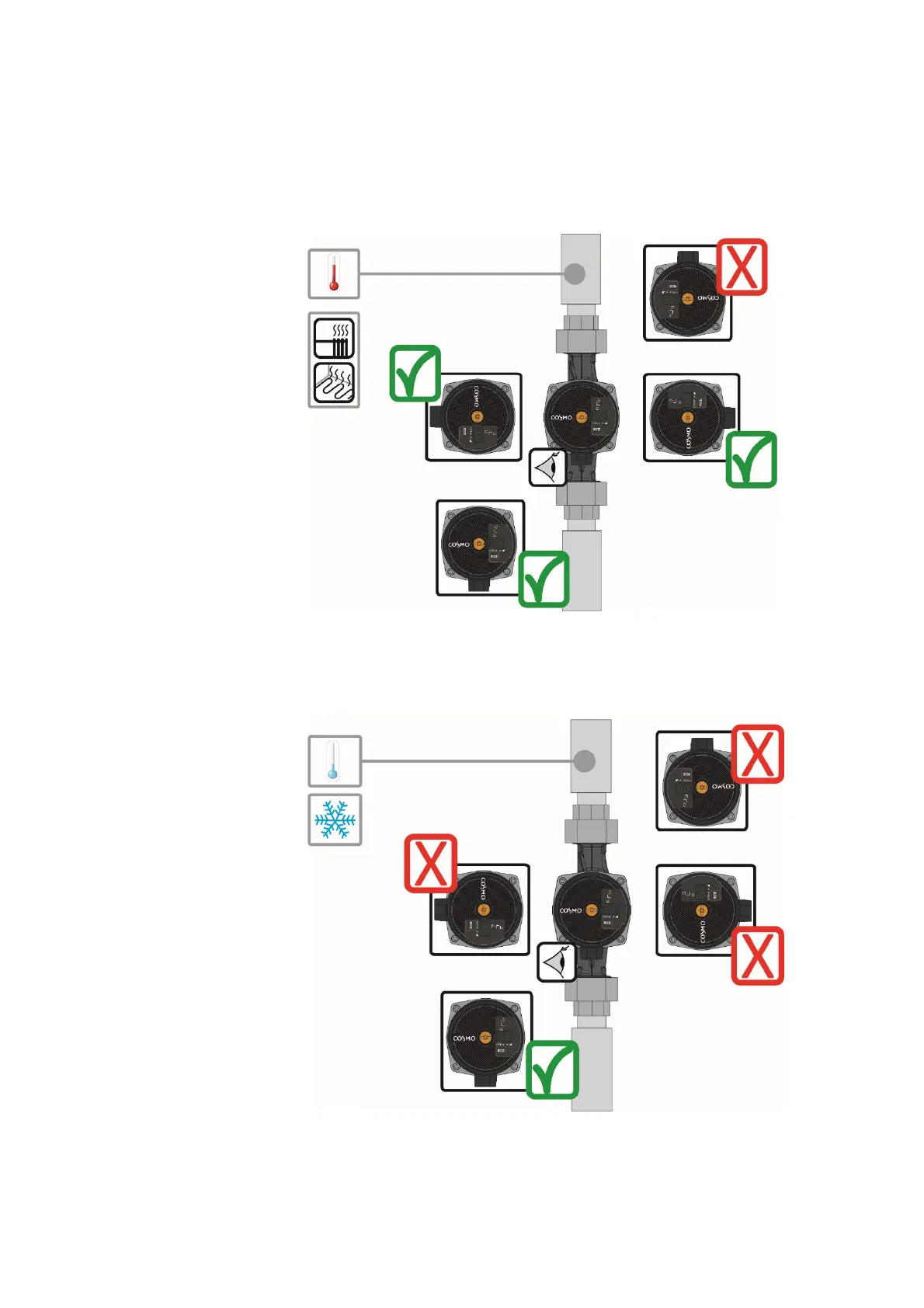

Positioning
Central
heating
systems:
The
user
interface
can
be
posi
tioned
with
the
cables
facing
left,
right,
or
downwards.
Cooling
systems:
The
user
interface
may
only
be
positioned
with
the
cables
facing
downwards.
38
40
