Cosmo Multi 2 User Manual

GND
S1 CS10 S8 S10 V40
R7-A R7-M R7-R
R6 R5 R1 R2 R3 R4
S9 S7 S6 S5 S4 S3 S2
Sensors
Bus
VBus
floating relay semiconductor relay
OK / Set
R1-R6
1 (1) A (100 ... 240) V~
4 (1) A (100 ... 240) V~
R7
Netz / Mains
100 ... 240 V~
50-60 Hz
T4A
IP 20
L' LN
SW 2.0
Vor Öffnen Gerät spannungslos
schalten!
Isolate mains before removing cover!
Masse-Sammelklemme benutzen
Use the ground common terminal block
Neutralleiter.
Sammelklemme benutzen!
Use neutral conductor
collective block
Erdungsleiter-Sammel-
klemme benutzen!
Use ground common
terminal block!
GND
PWM1 PWM2
PWM3
GND
GND
12
34 5
6
COSMO GmbH
D-22549 Hamburg
Multi 2

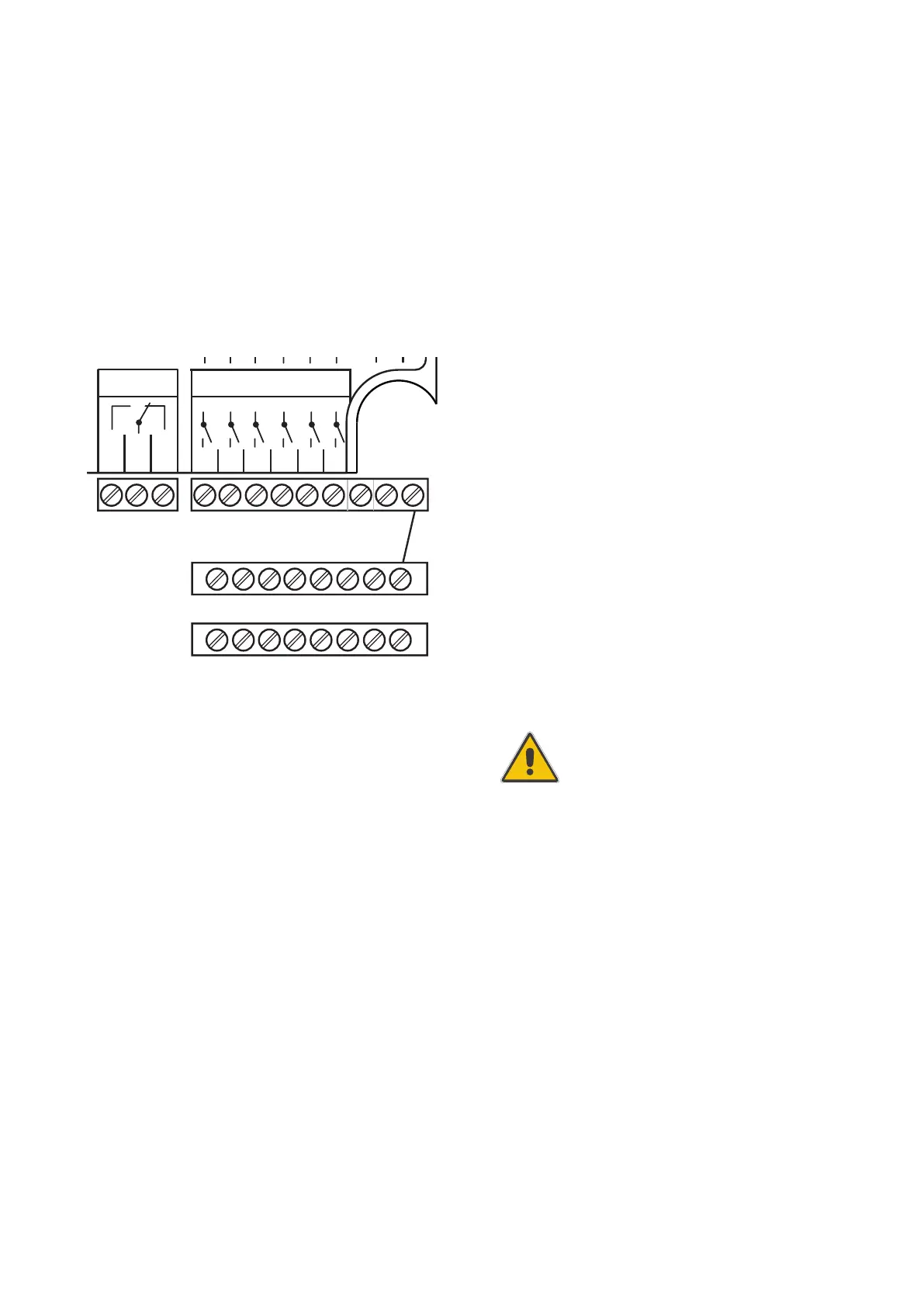

1.2.2 Actuators
(pumps, valves etc.)
The controller is equipped with 7 relays to which loads
(actuators) such as pumps, valves and auxiliary relays
can be connected (A= normally open contact; R =
normally closed / break contact):
• Relays R1 ... R6 are semiconductor relays:
R1 ... R3 = normally open R1 ... R3
(designed for pump speed control)
R4 ... R6 = normally open R4 ... R6
N = neutral conductor N
(common terminal block)
PE = protective conductor PE
(common terminal block)
• Relay R7 is a potential-free (floating) relay with
change-over contact:
R7-M = center contact R7
R7-A = normally open R7
R7-R = normally closed R7
Note:
The minimum pump speed must be set to 100% when
auxiliary relays or valves are connected
.
neutral conductor-common terminal block
protective conductor-common terminal block
1. Installation
ATTENTION!
High-efficiency pumps can be connected to
semiconductor relay outputs only!
68
