3. Commissioning
Function Function block 1 Function block 2 Function block 3 Function block 4 Function block 5
Thermostat
Thermostat 1- S3 Thermostat 3- S5 Thermostat 5- S5 Thermostat 7- S7 Thermostat 9- S9
Thermostat 2- S4 Thermostat 4- S6 Thermostat 6- S6 Thermostat 8- S8 Thermostat 10- S10
Differential
function DT
DT-5
Sen. 1 – S3
DT-6
Sen. 1 – S5
DT-7
Sen. 1 – S5
DT-8
Sen. 1 – S7
DT-9
Sen. 1 – S9
Sen. 2 – S4 Sen. 2 – S6 Sen. 2 – S6 Sen. 2 – S8 Sen. 2 – S10
Timer 1 2 3 4 5
Relay 3 4 5 6 7
Function Function block 1
Thermostat
Thermostat 1- S3
Thermostat 2- S4
Differential func-
tion DT
DT-5
Sen. 1 – S3
Sen. 2 – S4
Timer 1
Relay 3
Th1-S3
Th2-S4
DT5-S3>S4
Timer 1
R3

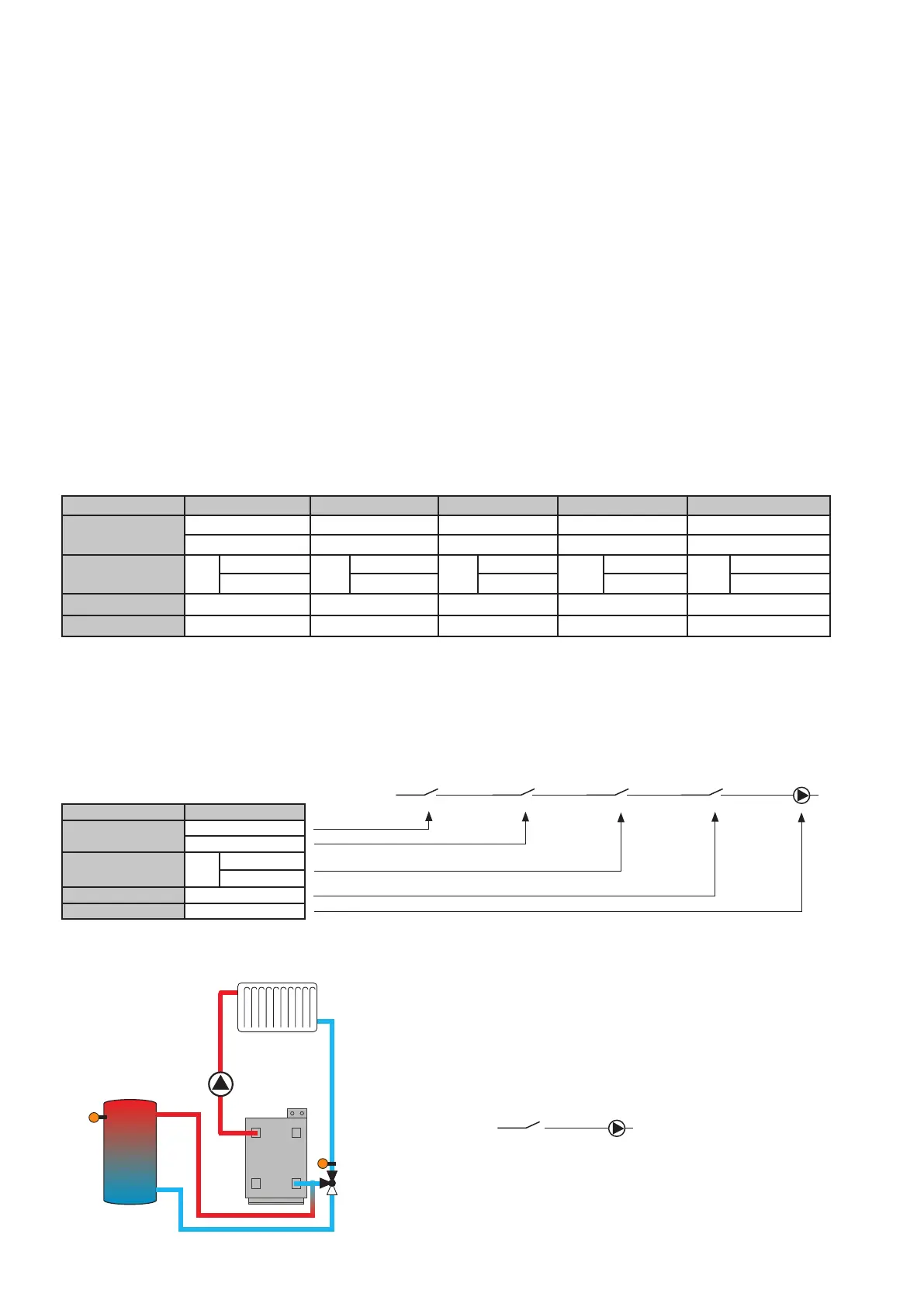

3.3 Function blocks
Depending on the selected system/variant and other
options e.g. internal heating circuit module, certain re-
lays are already assigned. Relays which are not assigned
can be allocated to one of the 5 function blocks other
uses e.g.(extra valves, stores, heat sources etc ).
Each function block provides 4 functions:
1 temperature differential function
2 thermostat functions
1 timer (with 21 time frames)
Within a function block, these functions can be activated
and combined as required in the menu (Arrangement/
Options/...). All switch-on conditions of all activated
functions have to be fulfilled in order to energise the
relay allocated to the function block (Arrangement/Adj.
values/...). These functions can be compared to swit-
ches connected in series:
The temperature differential function of a function block
has to be activated in order to implement a simple
return preheating function.
Arrangement/Options/DT-Func6 change setting to
„Yes“.
S5
S6
R4
Examples:
DT6-S5>S6
R4
77
