3.2 Basic systems
and hydraulic variants
A solar system with a store charging in layers is imple-
mented as a 2-store system (store top = store 1; store
bottom = store 2).

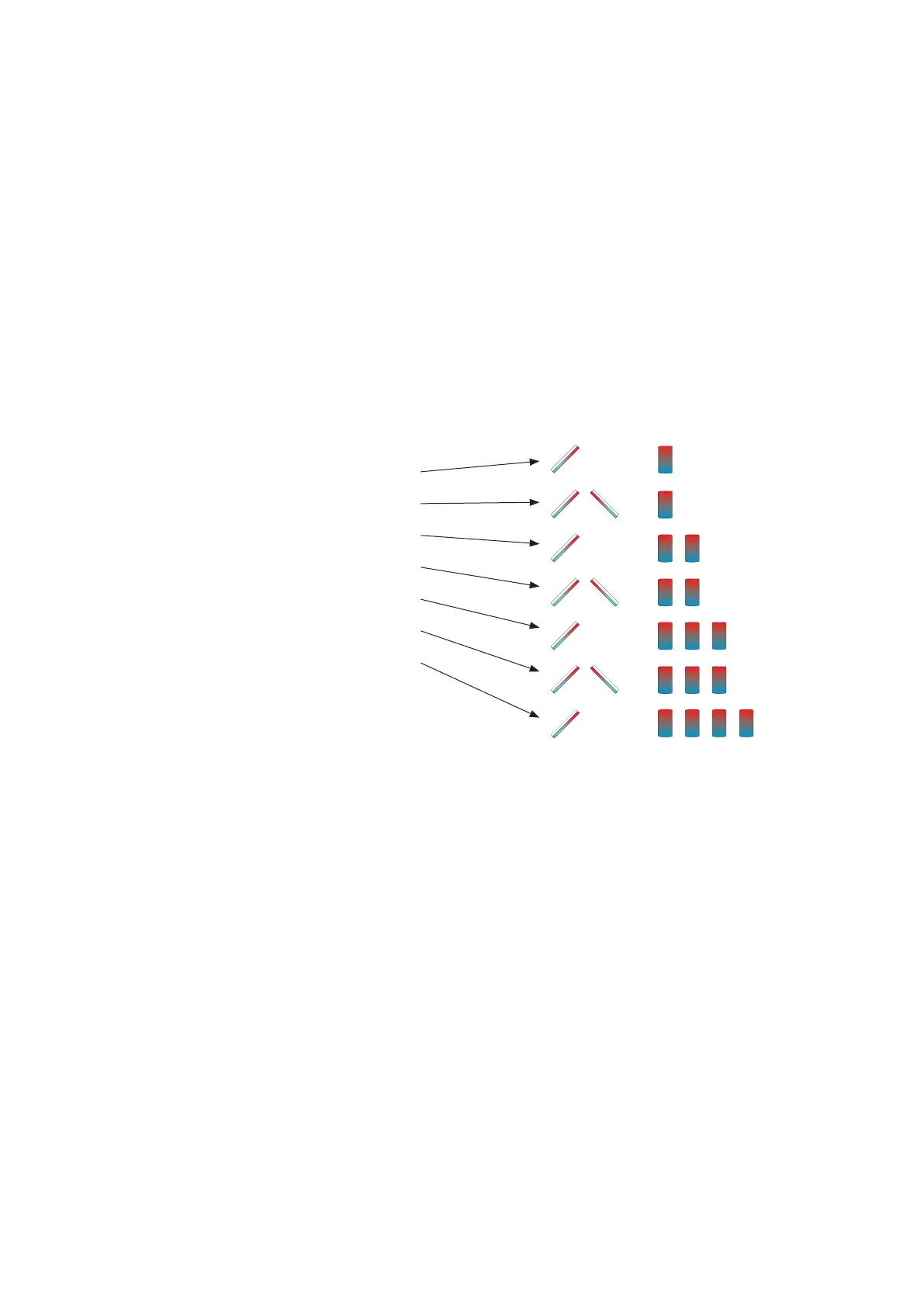

System 1: 1 collector field - 1 store
System 2: east/west collectors - 1 store
System 3: 1 collector field - 2 stores
System 4: east/west collectors - 2 stores
System 5: 1 collector field - 3 stores
System 6: east/west collectors - 3 stores
System 7: 1 collector field - 4 stores
The controller is preprogrammed for 7 basic systems.
The selection depends on the number of heat sources
(collector fields) and heat sinks (stores, pool). Factory
setting is system 1.
3. Commissioning
75
