GND
S1
CS10
S8
S10
V40
R7-A
R7-M
R7-R
R6
R5
R1
R2
R3
R4
S9
S7
S6
S5
S4
S3
S2
Sensors
Bus
VBus
floating relay
semiconductor relay
OK / Set
R1-R6
1 (1) A (100 ... 240) V~
4 (1) A (100 ... 240) V~
R7
Netz / Mains
100 ... 240 V~
50-60 Hz
T4A
IP 20
L' LN
SW 2.0
Vor Öffnen Gerät spannungslos
schalten!
Isolate mains before removing cover!
Masse-Sammelklemme benutzen
Use the ground common terminal block
Neutralleiter.
Sammelklemme benutzen!
Use neutral conductor
collective block
Erdungsleiter-Sammel-
klemme benutzen!
Use ground common
terminal block!
GND
PWM1
PWM2
PWM3
GND
GND
12
34 5
6
COSMO GmbH
D-22549 Hamburg
Multi 2
1.2.5 Mains supply
The power supply to the controller must be carried
out via an external power switch (last step!) and the
supply voltage must be 100 ... 240 V~ (50 ... 60 Hz). Fle-
xible cables must be attached to the housing with the
enclosed strain relief and the corresponding screws or
be run into the controller housing in a cable conduit
or trunking.
protective conductor PE (common terminal block)
neutral conductor N (common terminal block)
conductor L
1. Installation
GND
S1
CS10
S8
S10
V40
R7-A
R7-M
R7-R
R6
R5
R1
R2
R3
R4
S9
S7
S6
S5
S4
S3
S2
Sensors
Bus
VBus
floating relay
semiconductor relay
OK / Set
R1-R6
1 (1) A (100 ... 240) V~
4 (1) A (100 ... 240) V~
R7
Netz / Mains
100 ... 240 V~
50-60 Hz
T4A
IP 20
L' LN
SW 2.0
Vor Öffnen Gerät spannungslos
schalten!
Isolate mains before removing cover!
Masse-Sammelklemme benutzen
Use the ground common terminal block
Neutralleiter.
Sammelklemme benutzen!
Use neutral conductor
collective block
Erdungsleiter-Sammel-
klemme benutzen!
Use ground common
terminal block!
GND
PWM1
PWM2
PWM3
GND
GND
12
34 5
6
COSMO GmbH
D-22549 Hamburg
Multi 2

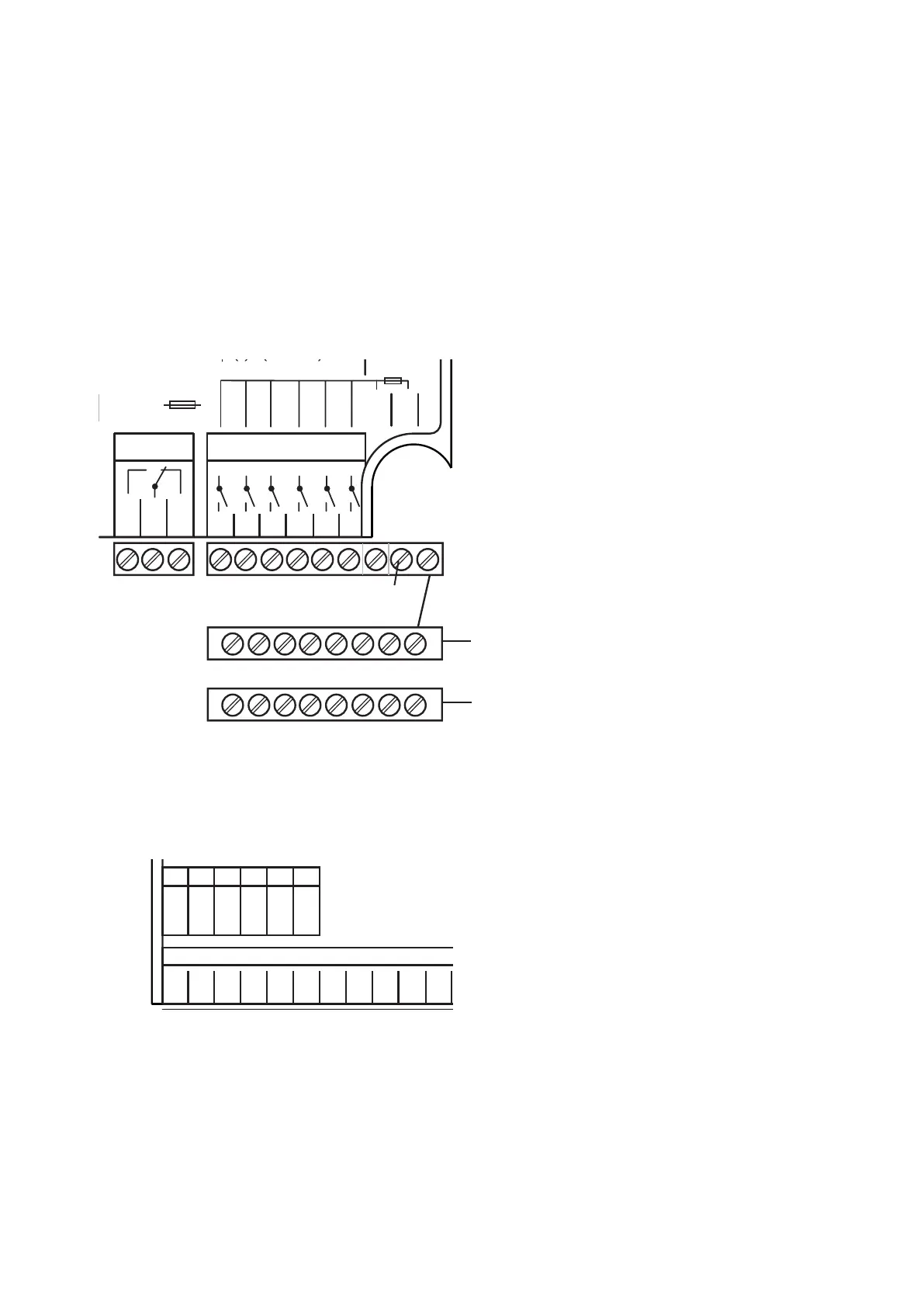

The speed of a HE pump is adjusted through a PWM
signal. In addition to connection to the relay, the pump
must be connected to one of the PWM outputs of the
controller.
Power is supplied to the HE pump by switching the
corresponding relay on or off. The terminals marked
„PWM / 0-10 V“ are control outputs for pumps with
PWM control input.
1.2.6 PWM outputs
