Cosmo Multi 2 - 3. Commissioning - Hydraulic Variants; Hydraulic Variant Configurations; Important System Selection Note

Beginning with system 2, different hydraulic variants

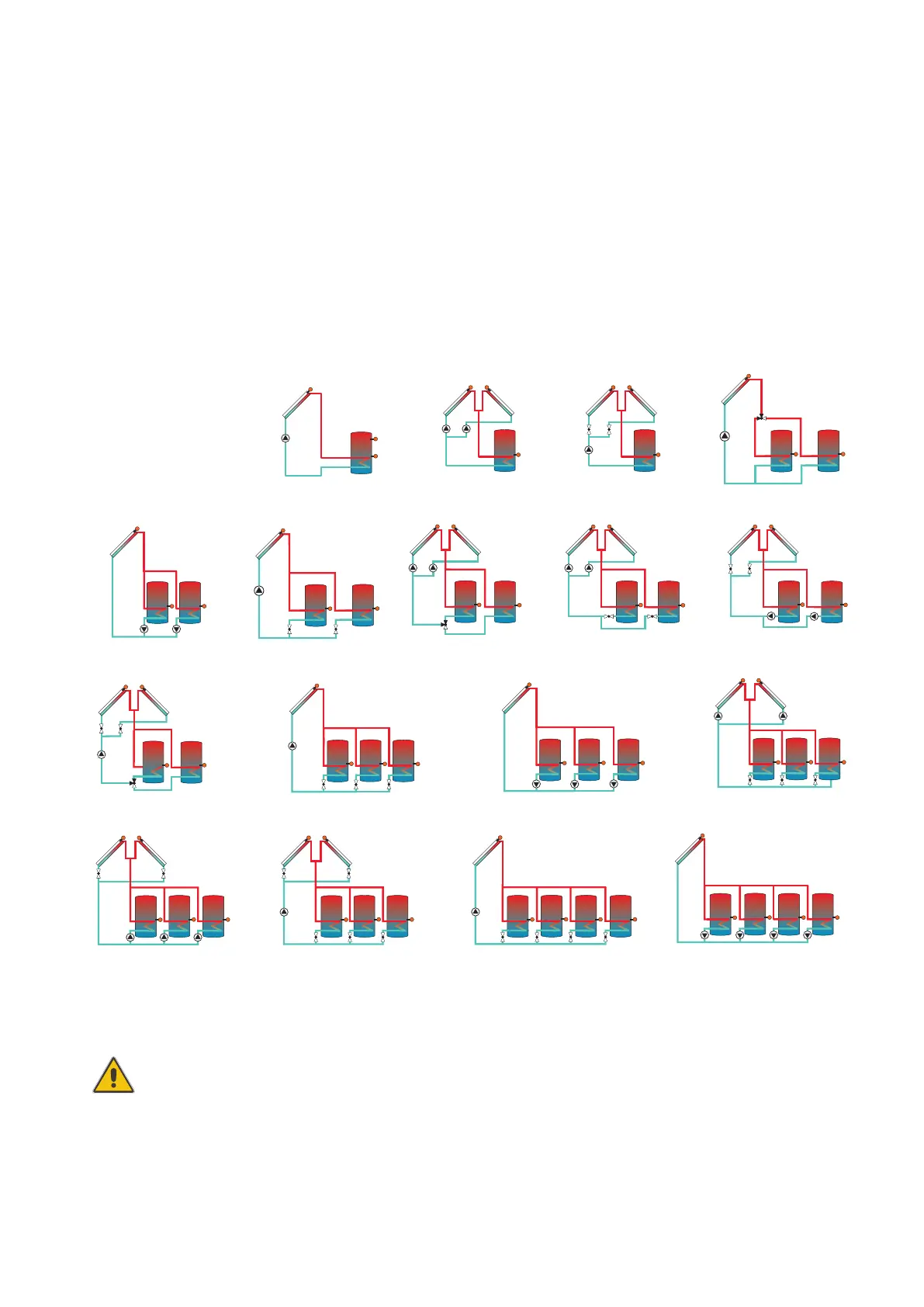

are possible (pump or valve control):
system 1
system 2 variant 1 system 2 variant 2
system 6 variant 3
system 6 variant 2
system 4 variant 4
system 3 variant 2
system 3 variant 1
system 7 variant 2
system 6 variant 1
system 7 variant 1
system 5 variant 1
system 5 variant 2
system 3 variant 3 system 4 variant 1
system 4 variant 2 system 4 variant 3
For each variant, the controller allocates the corre-
sponding relays and sensors. The allocations of the
most important combinations are shown in 3.5. The
system and the variant have to be selected first (Solar/
Options/...)!
Important note:
If you select a new system, any previous ad-
justments which have been done will be set
back to the factory settings (reset)!
