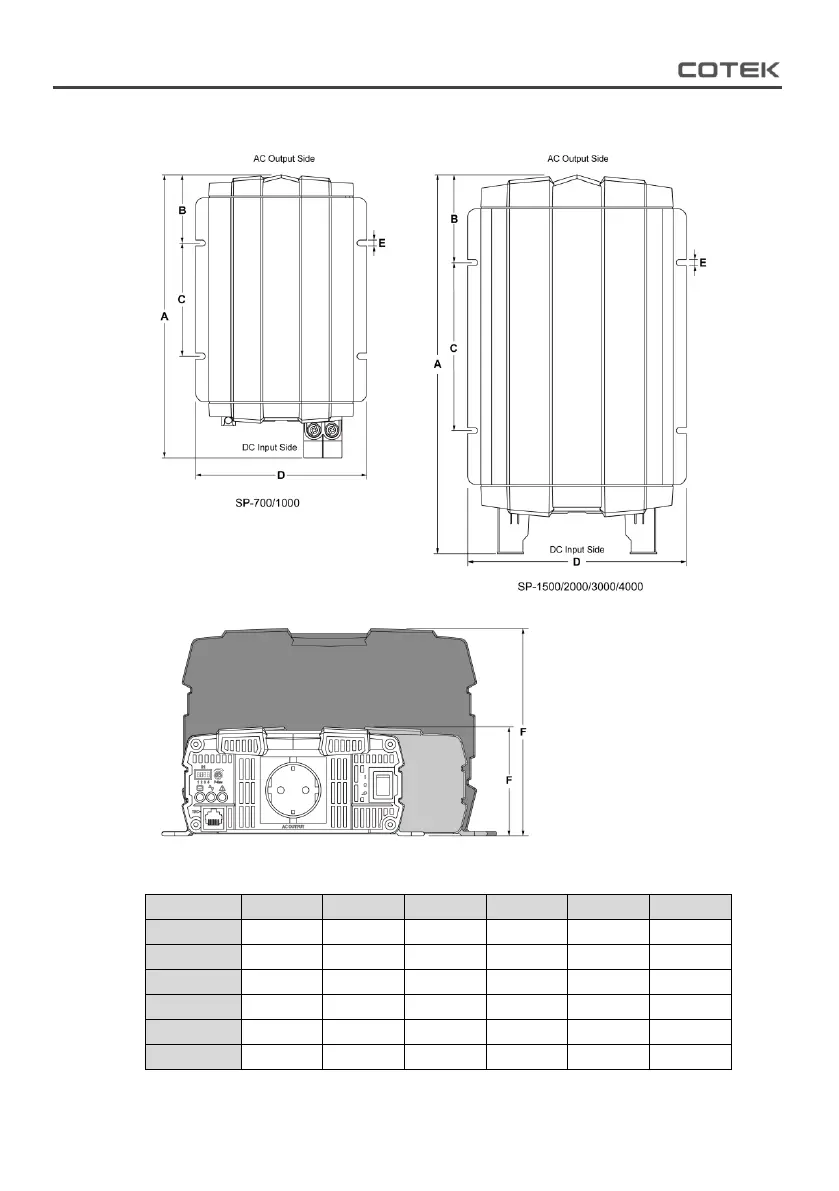

2-4. Mechanical Drawings
Figure 3. SP series drawing (Top View)
Figure 4. SP series drawing (AC output/Front View)
Model
A (mm)
B (mm)
C (mm)
D (mm)
E (mm)
F (mm)
SP-700
330
80
132
200
7.0
83
SP-1000
372
69
196
200
7.0
83
SP-1500
421
92
196
248
7.0
83
SP-2000
443
103
196
248
7.0
83
SP-3000
442
103
196
255
7.0
158
SP-4000
462
113
196
255
7.0
158
Table 13. SP Series Dimension
