Note! Fault conditions include Input under / over voltage,
output short circuit / over load, over / under temperature.
Caution! Please follow the following steps for the
installation
Before installing the inverter, make sure the main switch is at
“OFF” position.
Before using the remote function, make sure the main switch
pressed toward “REMOTE”
Use 20 ~ 24 #AWG wire to connect the remote control terminals

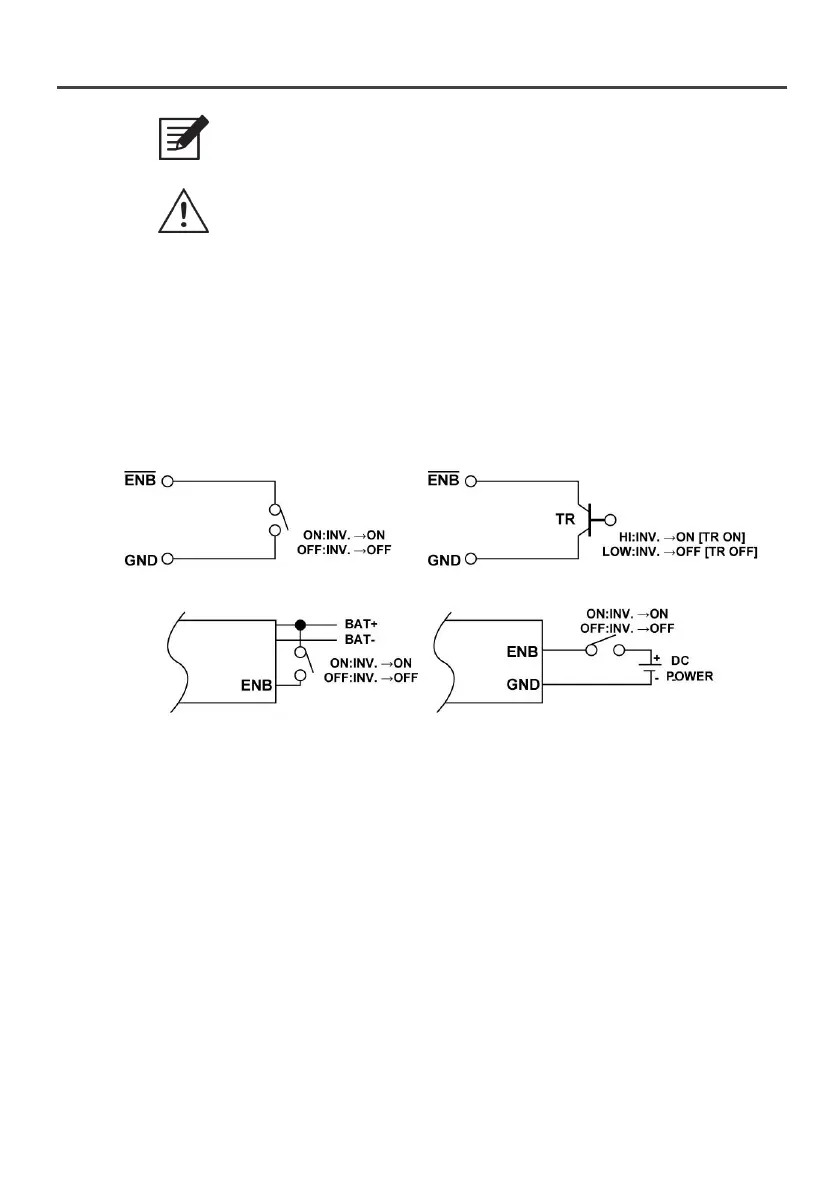

Figure 14. Wiring for control
3-2-3. General instruction before DC Input ④
3-2-3-1 Before installation:
The DC cables should be as short as possible (less than 6 feet /
1.8 meters ideally)
The size of the cable should be thick enough to limit the voltage
drop to less than 2% when carrying the maximum input current
to prevent frequent low-input voltage warnings, and shutdown.
The following sizes of cables and fuses are recommended for up
to 6 ft. distance between the batteries and the inverter.
