Cotek SP-3000 - Function Switch Introduction and Definition

26
LED status
Status
Recovery point
Orange
Device startup
process abnormal
—
Orange Fast Blink
Under
Temperature
Protection
(Heat sink temp.
under -20 degree)
> 0 degree C
Orange Slow
Blink
Over Temperature
Protection
(Heat sink temp.
over 80 degree)
< 60 degree C
(heat sink temperature)
Table 17. Inverter LED Status Indicator
3-1-3. Function Switch Introduction

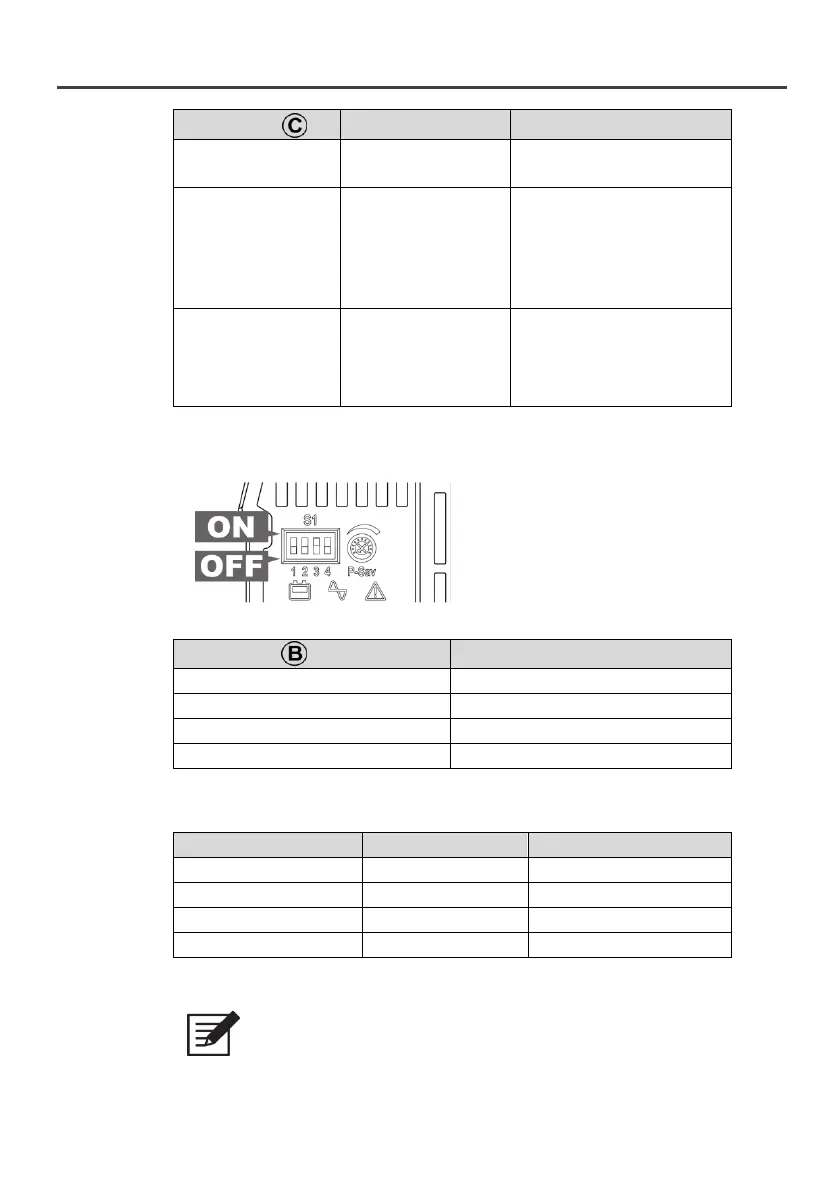

Figure 8. DIP switch ON/OFF position
3-1-3-1. Function Switch Definition
Dip Switch
Function
S1
Voltage select
S2
Voltage select
S3
Frequency Select
S4
Power saving ON/OFF
Table 18. Function Switch Definition
3-1-3-2. Output voltage selection (S1&S2)
Output voltage
S1
S2
100V/200V
OFF
OFF
110V/220V
ON
OFF
115V/230V
OFF
ON
120V/240V
ON
ON
Table 19. Function Switch definition: output voltage selection
Note! 100V series can be selected between
100/110/115/120VAC, and 200V series can be selected
between 200/220/230/240VAC.
