Cotek SP-3000 - AC Output Interface

28
Pin Number
Signal Description
4
Bypass
Transfer Relay Driver Signal
5
12V
Internal power for TR40 controller
6
5V
Internal power for TR40 controller
7
GND
The same polarity as the battery negative
side
8
Reserved
--
Table 24. SP Series TRC Port : RJ-45.

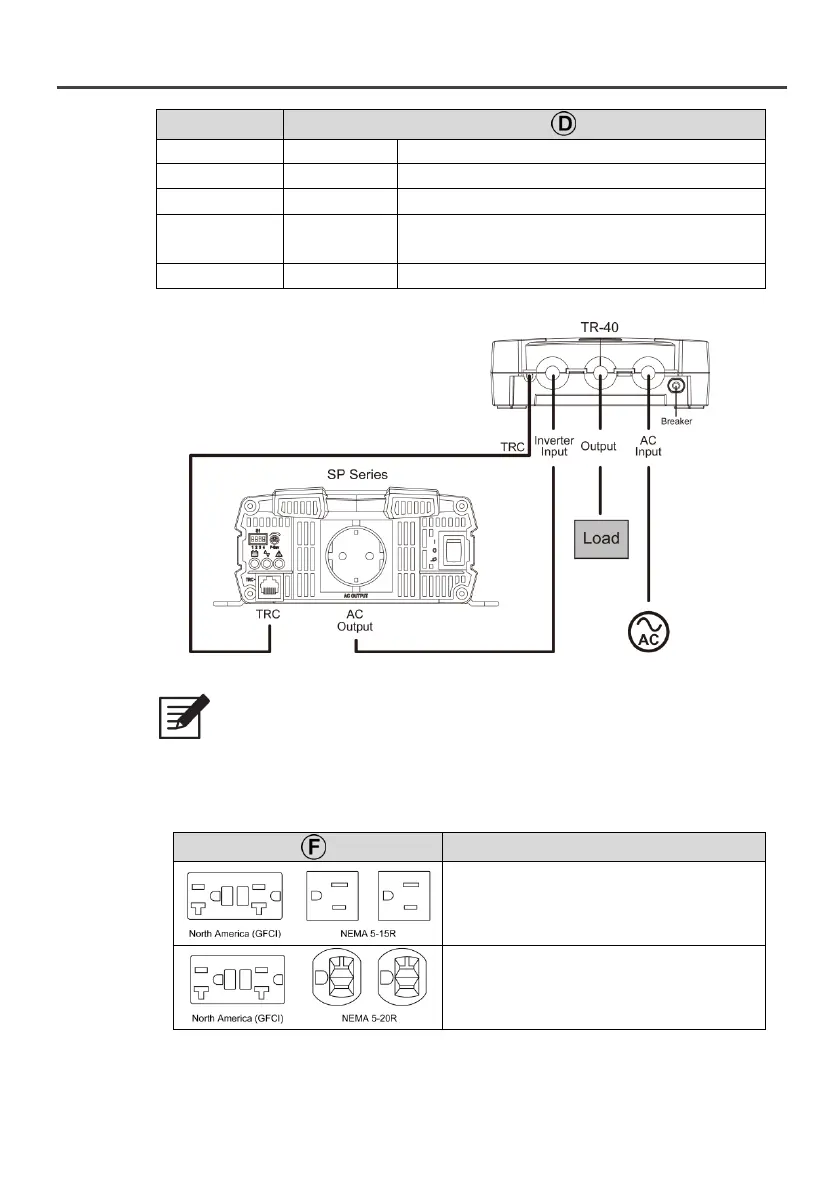

Figure 9. Wiring between SP series and TR-40
Note! The detail information please refer to TR-40 user
manual
3-1-5. AC output Interface
3-1-5-1. SP-700/1000/1500/2000 AC output interface
Socket Type
Applicable Model
SP-700/1000-112/124/148
SP-1500/2000-112/124/148
