Cotek SP-3000 - Page 33

29
Socket Type
Applicable Model
SP-700/1000/1500/2000/3000-
212/224/248
SP-700/1000/1500/2000-112/124/148
SP-700/1000/1500/2000/3000-
212/224/248
SP-3000-112/124/148/212/224/248
SP-4000-124/148/224/248
SP-700/1000/1500/2000/3000-
212/224/248

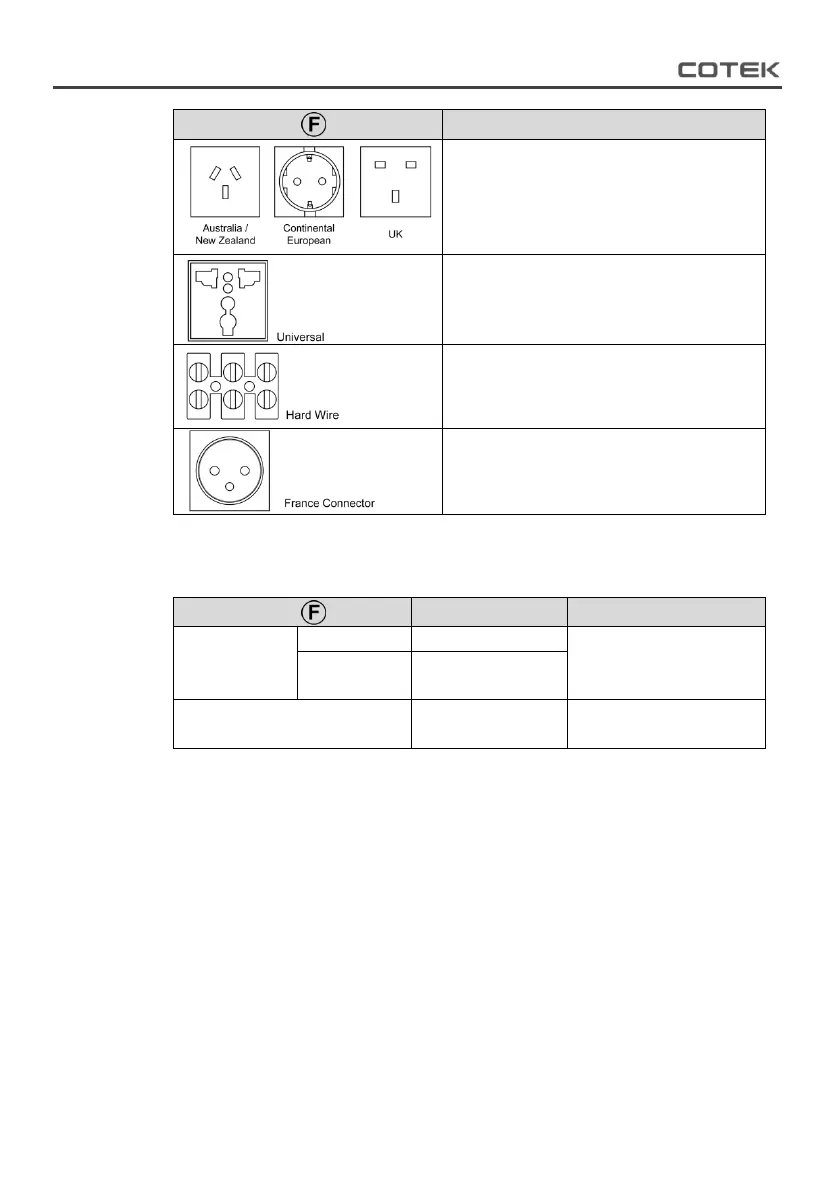

Table 25. SP Series AC Socket vs. Model
3-1-5-2. SP-3000/4000 AC output interface
Terminal
Wire color
Wire length / gauge
AC terminal
Line (L)
Black
Within 16 feet / AWG#
200-240VAC: AWG10
100-120VAC: AWG8
Neutral (N)
White
FG (Ground)
Green / Yellow
or Bare copper
26~32 feet / AWG#
10 ~ 8
Table 26. SP-3000/4000 Series AC output wiring
3-1-5-3. GFCI connector
Recommend GFCI connector：
 HUBBELL INC WIRING DEVICE DIV, Type GF20. Rated
125V, 20A
 COOPER WIRING DEVICES, Type VGF20. Rated 125V, 20A
 LEVITON MFG CO INC, Type 7899-W. Rated 125V, 20A
