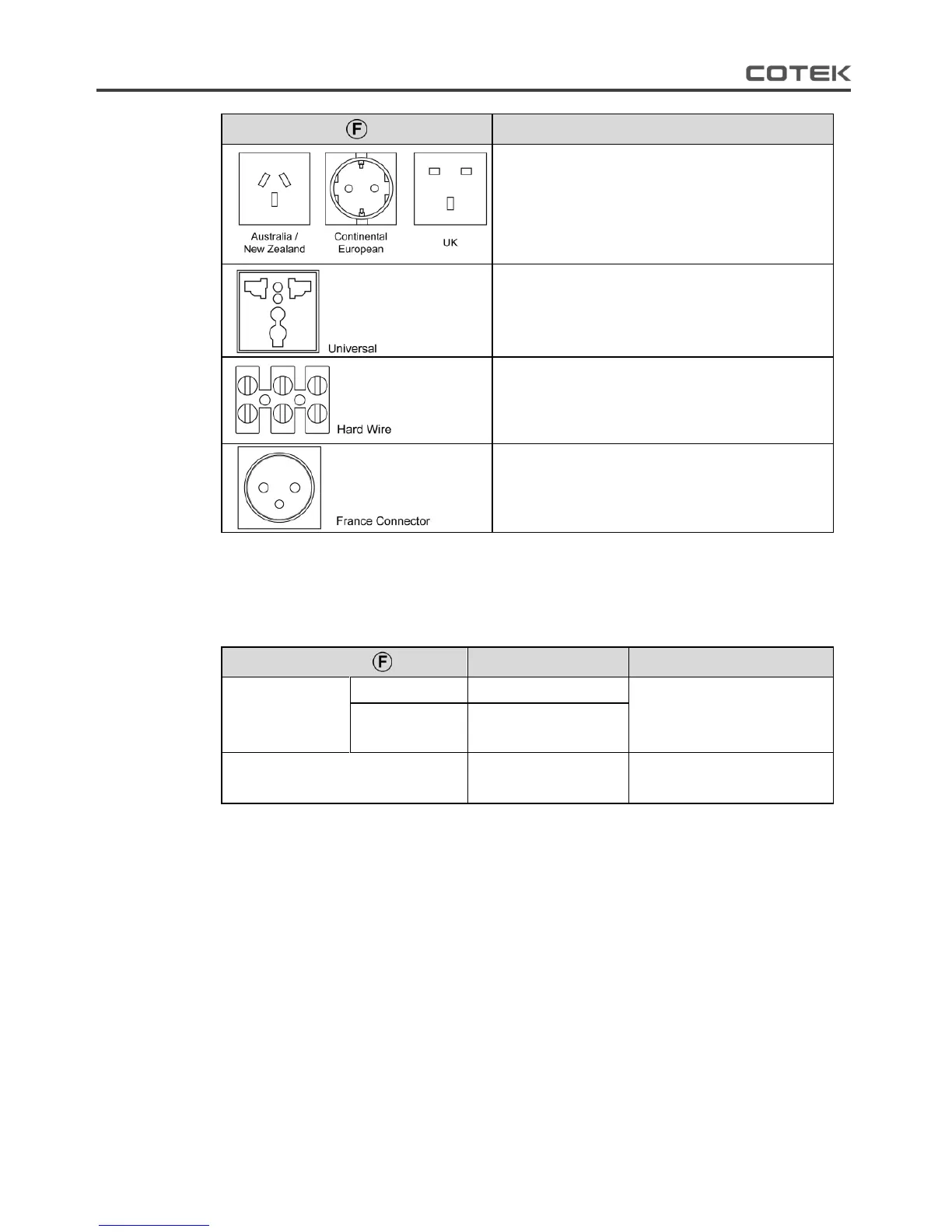

Socket Type
Applicable Model
SP-700/1000/1500/2000/3000-
212/224/248
SP-700/1000/1500/2000-112/124/148
SP-700/1000/1500/2000/3000-
212/224/248
SP-3000-112**/124**/148/212/224/248
SP-4000-124**/148/224/248
SP-700/1000/1500/2000/3000-
212/224/248
** Neutral conductor (N) of the AC Ouput and Safety Ground (PE/GND) is connected
Table 25. SP Series AC Socket vs. Model
3-1-5-2. SP-3000/4000 AC output interface
Terminal
Wire color
Wire length / gauge
AC terminal
Line (L)
Black
Within 6 feet / AWG#
200-240VAC: AWG10
100-120VAC: AWG8
Neutral (N)
White
FG (Ground)
Green / Yellow
or Bare copper
26~32 feet / AWG#
10 ~ 8
Table 26. SP-3000/4000 Series AC output wiring
3-1-5-3. GFCI connector
Recommend GFCI connector：
 HUBBELL INC WIRING DEVICE DIV, Type GF20 and GFRST20.
Rated 125V, 20A
 COOPER WIRING DEVICES, Type VGF20 and SGF20. Rated
125V, 20A
 LEVITON MFG CO INC, Type 7899-W and GFNT2. Rated 125V,
20A
 PASS & SEYMOUR INC, Type 2097. Rated 125V, 20A
