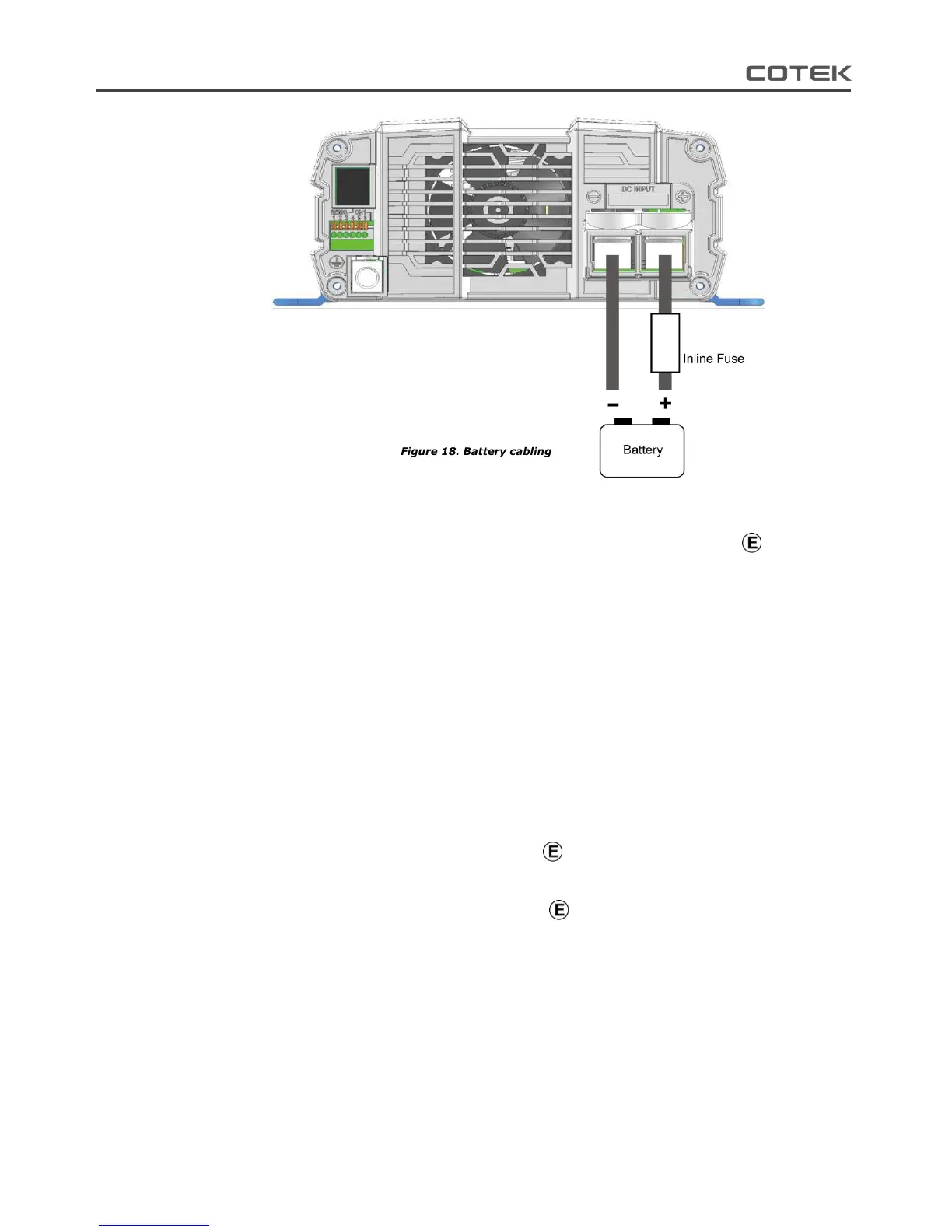

Figure 18. Battery cabling
4-2. Connecting the input power
Before making the DC input side connections ④, the main switch
must be at “OFF”.
4-3. Connecting the loads
Calculate the total power consumption of the output load. Make sure that
the total power consumption does not exceed the rated power.
If the total power consumption over the rated power of the inverter, remove
the non-critical: loads until the total power consumption is below the rated
power.
4-4. Switch ON Inverter
Set the power switch to the “ON” position . The inverter will carry out
self-diagnosis and, the LED’s will also appear various colors.
Set the power switch to the “OFF” position . The inverter stops and all the
lights that are on will go off.
