Ion Coater SPT-20 Operating Manual
12
3.2 Set-up

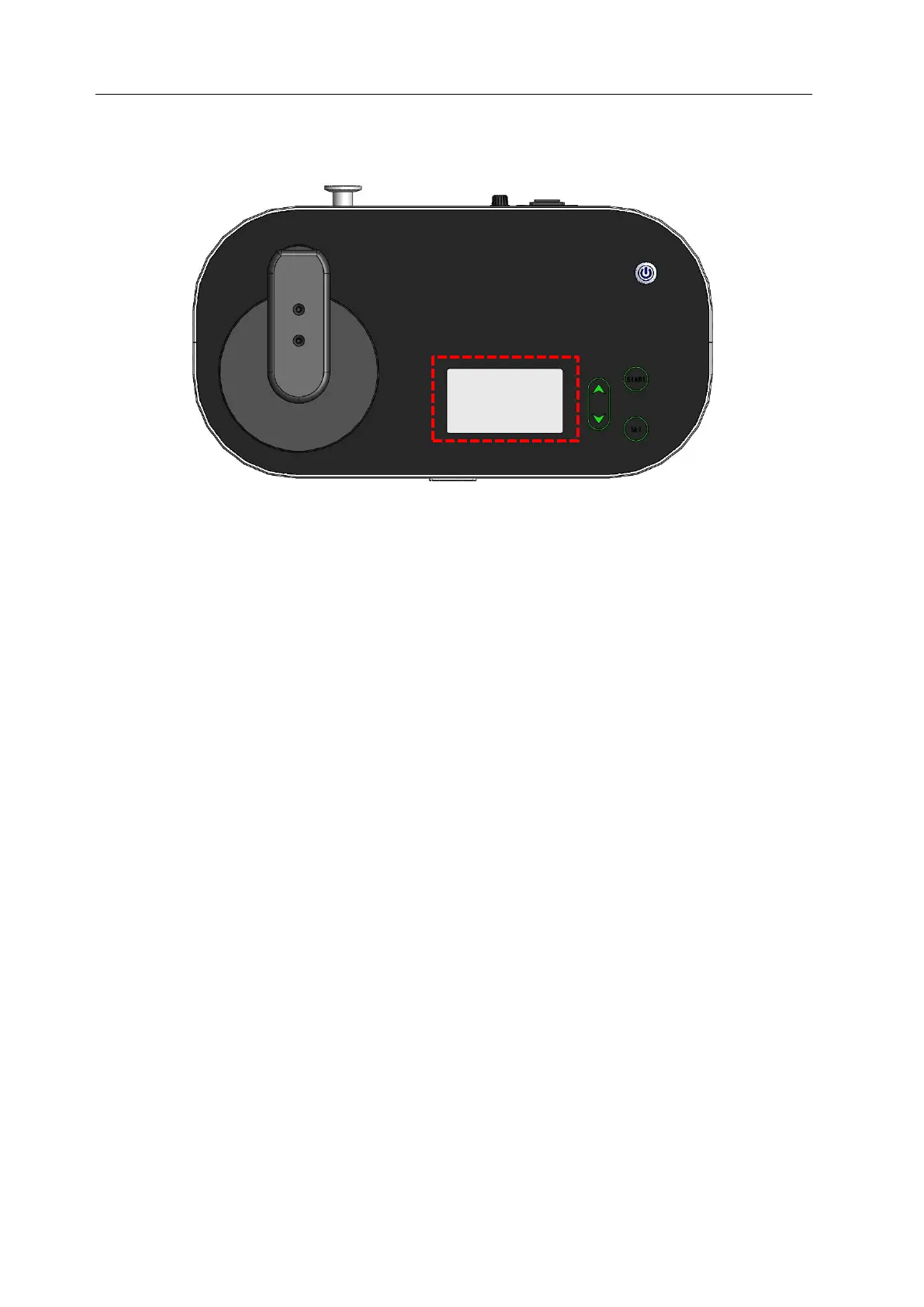

① After Self-Diagnosis, displayed a coating set-up mode
② Set points are,
- Target: Au, Pt, Cu, Pd, Pt-Pd, Ag, Al (STD: Au / Pt)
- Current: 1 ~ 9 mA
- Time: 10 ~ 300 Sec
➢ General: 3mA / 120 sec
➢ It depends on sample’s properties
③ After set on, press “START” 2 ~ 3 sec
④ Starts coating progress after vacuum level reached 100% (0.1 Torr)
⑤ After setting time, Displayed “Complete!!”
⑥ Emergency Stop: Press a “START” about 2 ~ 3 sec in progress. After then stopped progress with
displaying “CANCEL”
