COXEM SPT-20 - View from Back of SPT-20

Ion Coater SPT-20 Operating Manual
5

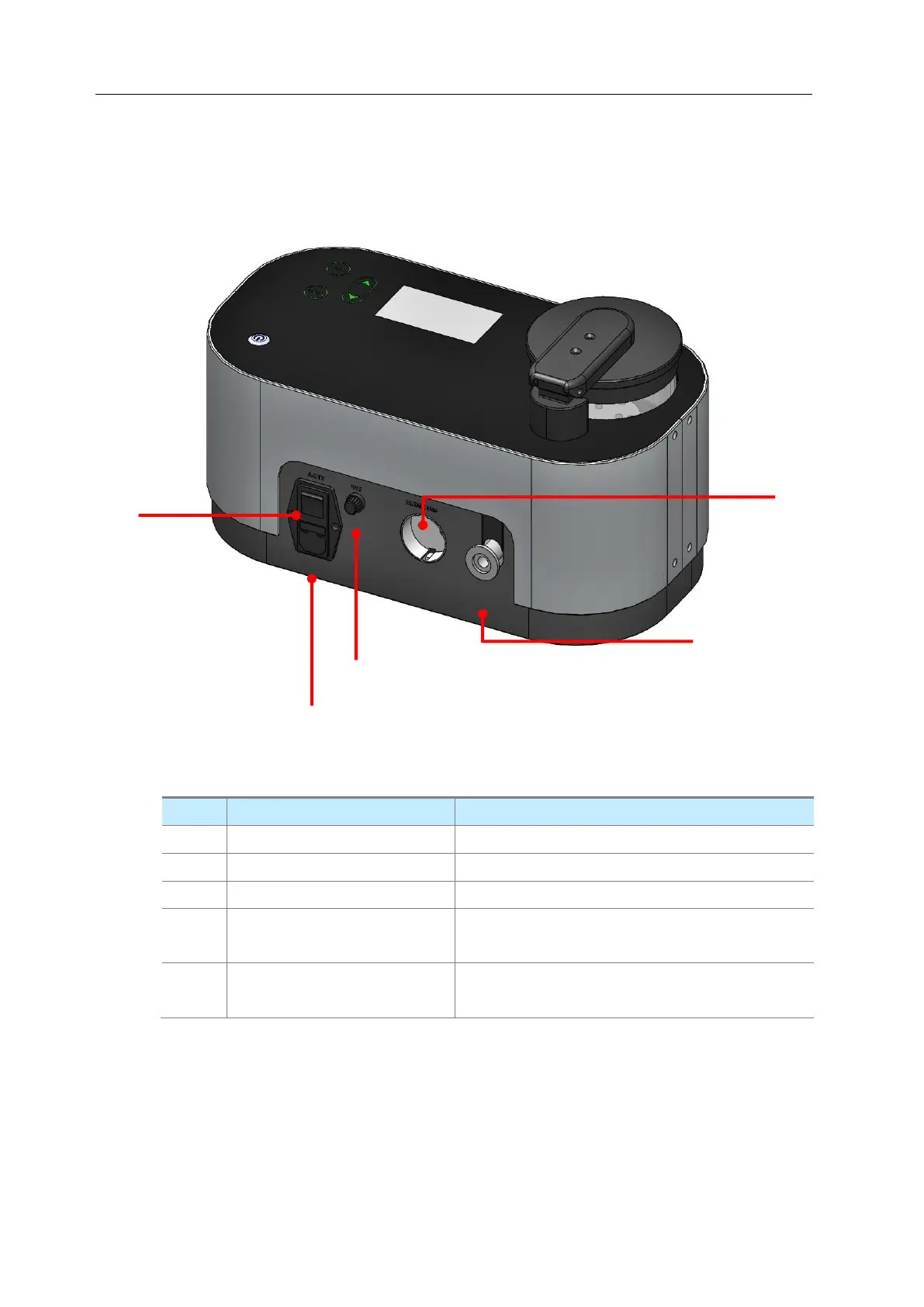

1.1.2 View from Back of SPT-20
No.
Items
Descriptions
①
Main Power
Main system and rotary pump turning ON/OFF
②
System Power cable plug
Connection for system power cable
③
Fuse Holder
Fuse(1.5A) inside
④
Vacuum pump power cable
plug
Connection for power cable of vacuum pump
⑤
Vacuum valve connector
Connects to the vacuum pump
-Should use the provided NW16 clamp
①
②
③
④
⑤
