12. Repeat steps 9-10 until the bevel lock
will not touch the left side of the yoke, and
the gap is not more than 1/16 inch.
13. Lock the bevel lock.
Attaching Trim Ledge and
Trim Caps
l. Hold the trim ledge against the front of the
saw.

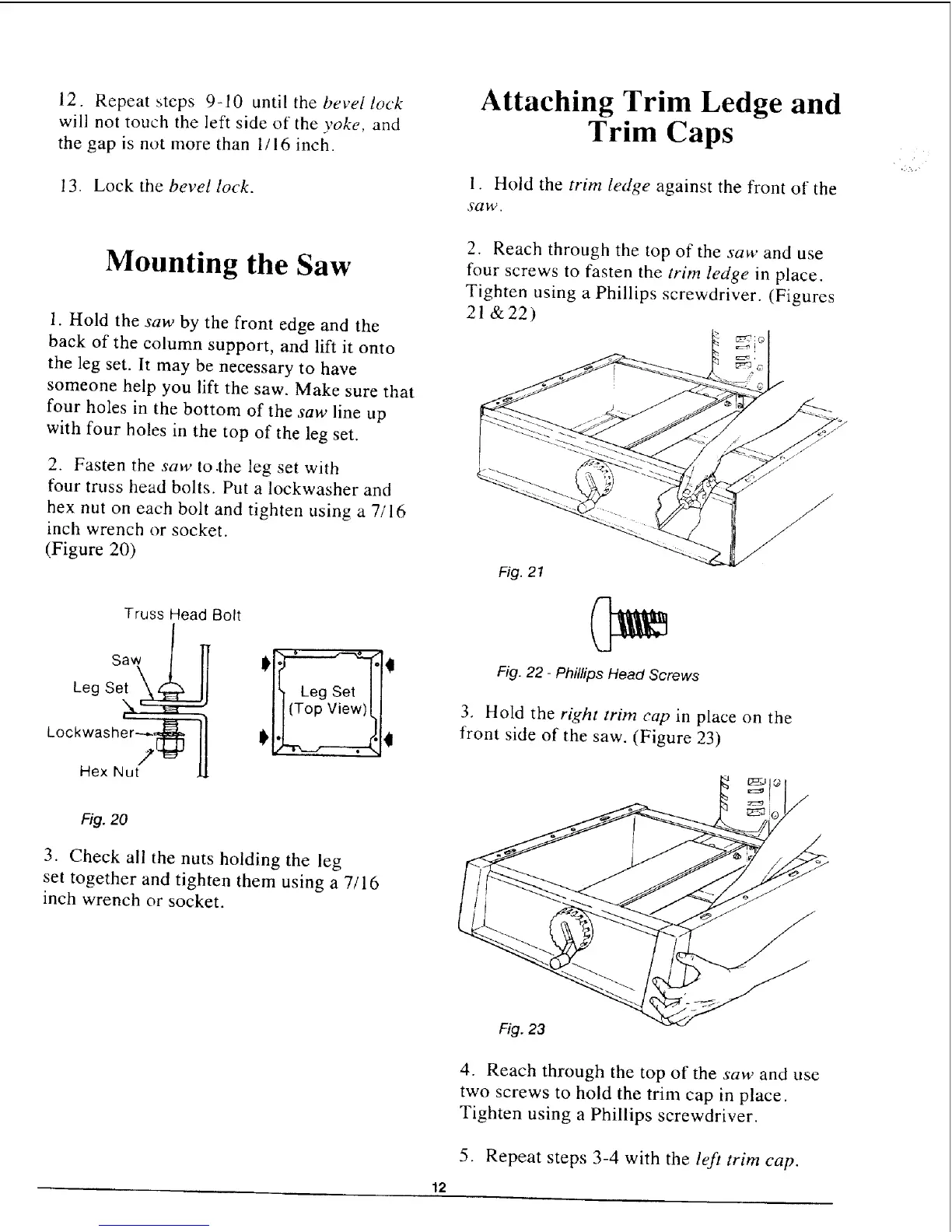

Mounting the Saw
1. Hold the saw by the front edge and the
back of the column support, and lift it onto
the leg set. It may be necessary to have
someone help you lift the saw. Make sure that
four holes in the bottom of the saw line up
with four holes in the top of the leg set.
2. Fasten the saw to .the leg set with
four truss head bolts. Put a lockwasher and
hex nut on each bolt and tighten using a 7/16
inch wrench or socket.
(Figure 20)
Truss Head Bolt
Saw] 1]
Leg Set
kockwasher---_ ]/
Hex Nut _'1_ Lit
2. Reach through the top of the saw and use
four screws to fasten the trim ledge in place.
Tighten using a Phillips screwdriver. (Figures
21 &22)
Fi9.21
O=
Fig. 22- Phillips Head Screws
3. Hold the right trim cap in place on the
front side of the saw. (Figure 23)
Fig. 20
3. Check all the nuts holding the leg
set together and tighten them using a 7/16
inch wrench or socket.
12
4. Reach through the top of the saw and use
two screws to hold the trim cap in place.
Tighten using a Phillips screwdriver.
5. Repeat steps 3-4 with the left trim cap.
To Next Page
