S- 1289

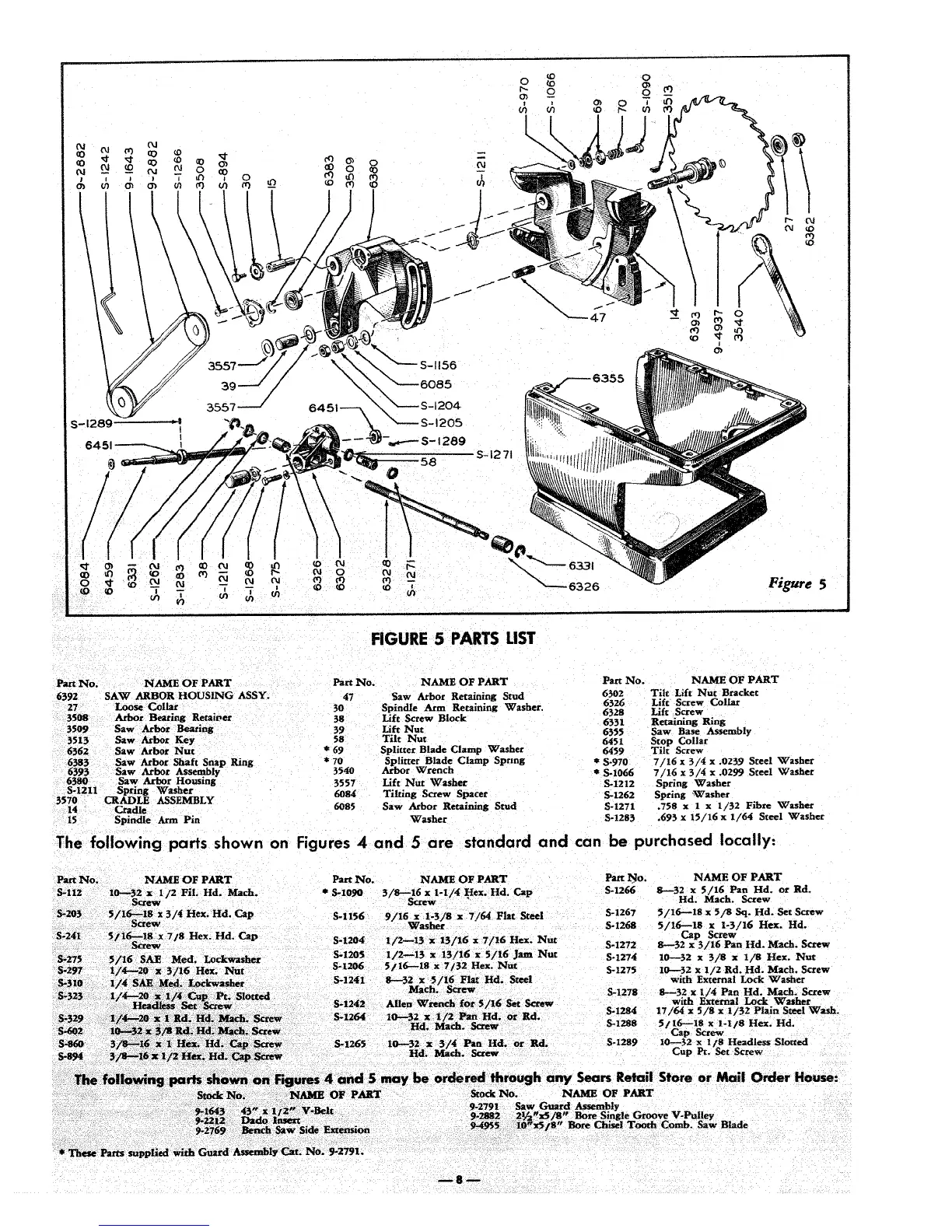

Figure 5
FIGURE 5 PARTS LIST
Part No. NAME OF PART Part No. NAME OF PART
6392 SAW ARBOR HOUSING ASSY. 47 Saw Arbor Retaining Stud
27 Loose Collar 30 Spindle .Arm Retaining Washer,
3508 Arbor Bearing Retaivex 38 Lift Screw Block
3509 Saw Arbor Bearing 39 Lift Nut
3513 Saw Arbor Key 58 Tilt Nut
6362 Saw Arbor Nut * 69 Splitter Blade Clamp Washer
6383 Saw Arbor Shaft Snap Ring * 70 Splitter Blade Clamp Spring
6393 Saw Arbor Assembly 3540 Arbor Wrench
6380 Saw Arbor Housing 3557 Lift Nut Washer
S-I211 Spring Washer 6084 Tilting Screw Spacer
5570 CRADLE h_SSEMBLY
14 Cradle 6085 Saw Arbor Retaining Stud
15 Spindle Arm Pin Washer
Part No. NAME OF PART
6302 Tilt Lift Nut Bracket
6326 Lift Screw Collar
6328 Lift Screw
6331 Retaining Ring
6355 Saw Base Assembly
6451 Stop Collar
6459 Tilt Screw
* S-970 7/16 x 3/4 x .0239 Steel Washer
* S-1066 7/16 x 3/4 x .0299 Steel Washer
S.1212 Spring Washer
S-1262 Spring Washer
8-1271 .758 x 1 x 1/32 Fibre Washer
S-1283 .695 x 15/16 x 1/64 Steel Washer
The following parts shown on Figures 4 and 5 are standard and can be purchased locally:
Part No. NAME OF PART Part No. NAME OF PART Part I_o. NAME OF PART
S-112 10---32 x 1/2 Fil. Hd. Mach. * S-1090 S-1266 8---32 x 5/16 Pan Hd. or Rd.
Screw Hd. Mach. Screw
S-203 5/16---18 x 3/4 Hex. Hd. Cap S-1156 9/16 x 1-3/8 x 7/64 Flat Steel S-1267 5/16--18 x 5/8 Sq. Hd. Set Screw
Screw Washer S*1268 5/16--18 x 1-3/16 Her. Hd.
_2_1
5 / i6"/-18X Cap Screw
S .... _crew 7/8 Hex. Hd. Cap S-1204 1/2...-13 x 13/16 x 7/16 Hex. Nut S-1272 8---32 x 5/16 Pan Hd. Math. Screw
S-275 5/16 SAE Med. Lockwashe_ S-1205 1/2--13 x 15/16 x 5/16 Jam Nut S-1274 10--32 x 3/8 x 1/8 Hex. Nut
S-1206 5/16--18 x 7/32 Hex. Nut S-1275 10---32 x 1/2 Rd. Hd. Math. Screw
