Craftsman 247.881721 - Shift Lever Operation; Key and Ignition; Choke and Throttle Controls

Drive Control
Shift Lever
J
Auger Control
Gas Cap
\
Chute Assembly
\,
Clean Out
Tool
Auger
Housing
\
Augers
Oil Fill
\\\\
\\
\
Muffler Recoil Starter
ndle
\
\
Key
Skid Shoes

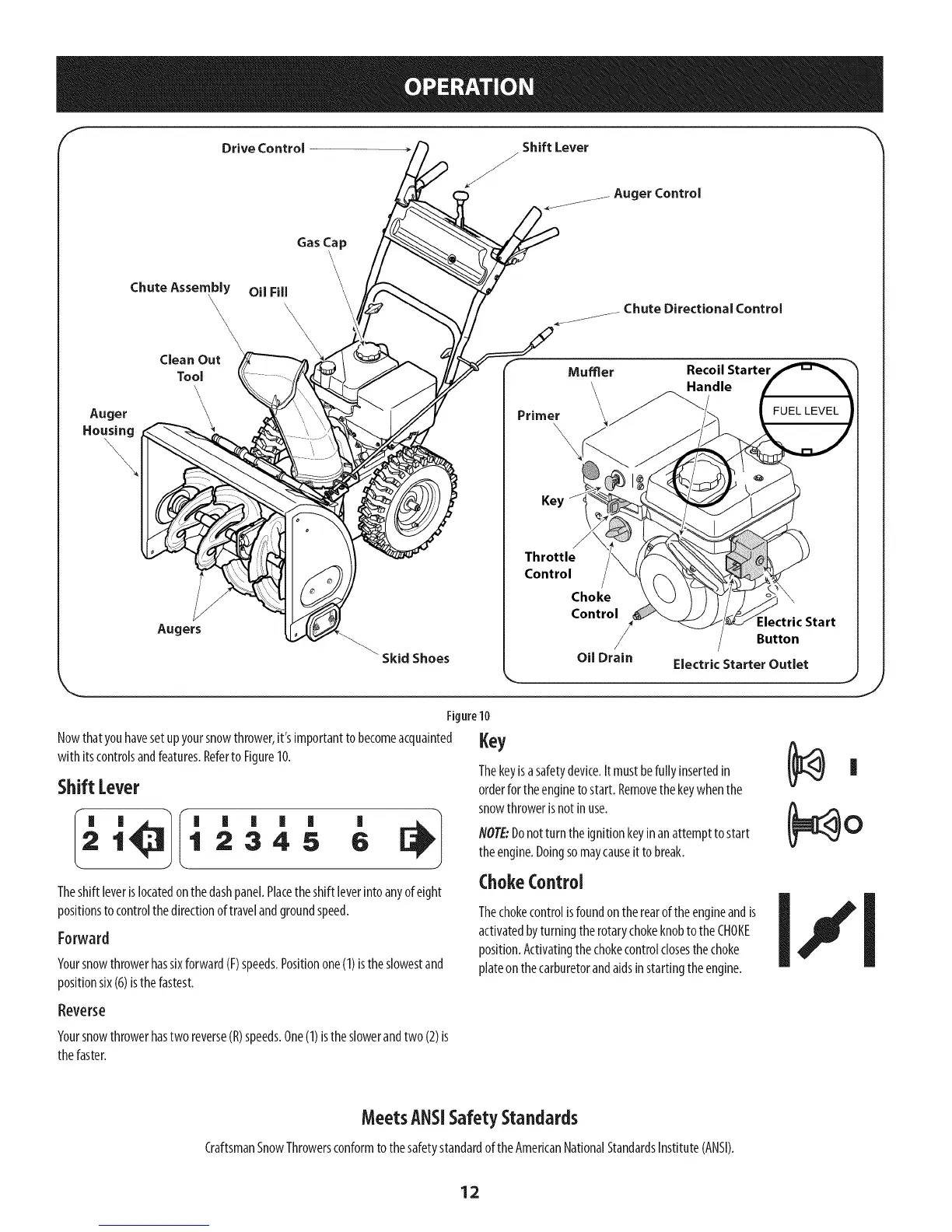

Figure10
Nowthatyouhavesetupyoursnowthrower,it'simportantto becomeacquainted
with itscontrolsandfeatures.Referto Figure10.
ShiftLever
I_ '_1 ' ' ' ' ' '
1 2345 6
Theshiftleverislocatedonthedashpanel.Placetheshiftleverintoanyofeight
positionsto controlthedirectionof travelandgroundspeed.
Forward
Yoursnowthrowerhassixforward(F)speeds.Positionone(1)isthe slowestand
positionsix(6)isthe fastest.
Key
Thekeyisasafetydevice.It mustbefully insertedin
orderfor theenginetostart.Removethekeywhenthe
snowthrowerisnotin use.
NOTE:Donotturntheignitionkeyinanattempttostart
theengine.Doingsomaycauseitto break.
ChokeControl
Thechokecontrolisfoundontherearoftheengineandis
activatedbyturningtherotarychokeknobto theCHOKE
position.Activatingthechokecontrolclosesthechoke
plateonthecarburetorandaidsinstartingtheengine.
Reverse
Yoursnowthrowerhastworeverse(R)speeds.One(1)istheslowerandtwo(2)is
thefaster.
MeetsANSiSafetyStandards
CraftsmanSnowThrowersconformto thesafetystandardoftheAmericanNationalStandardsInstitute(ANSI).
12
