Craftsman 247.881721 - Belt Replacement

AugerControl
RefertotheAssemblysectionforinstructionsonadjustingtheaugercontrolcable.
SkidShoes
RefertotheAssemblysectionforinstructionsonadjustingtheskidshoes.
8eR Replacement
Auger Belt

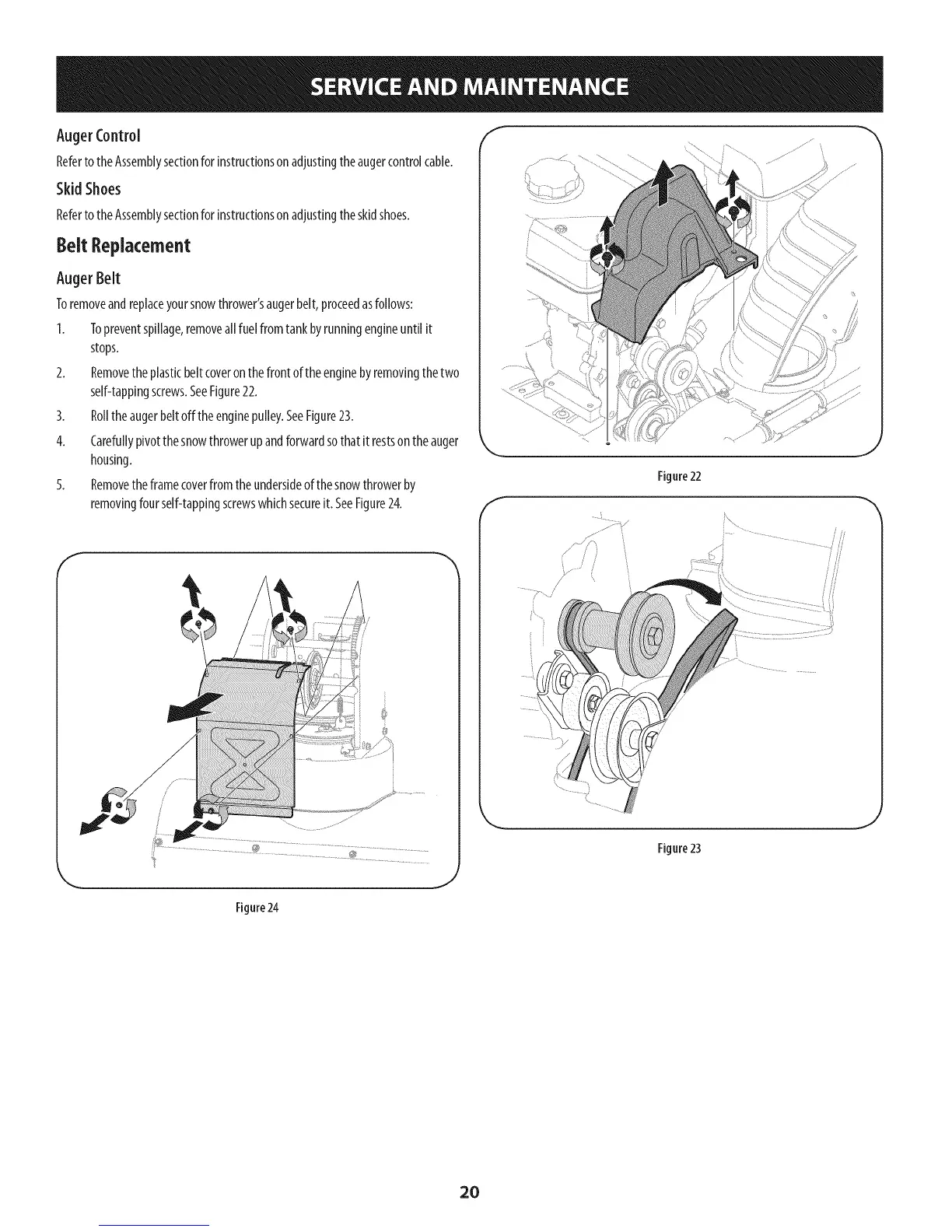

Toremoveandreplaceyoursnowthrower'saugerbelt,proceedasfollows:
I. Topreventspillage,removeallfuelfromtankbyrunningengineuntil it
stops.
2. Removetheplasticbeltcoveronthefrontof theenginebyremovingthetwo
self-tappingscrews.SeeFigure22.
3. Rolltheaugerbeltoffthe enginepulley.SeeFigure23.
4. Carefullypivotthesnowthrowerupandforwardsothat it restsontheauger
housing.
5. Removetheframecoverfromtheundersideofthesnowthrowerby
removingfourself-tappingscrewswhichsecureit. SeeFigure24.
