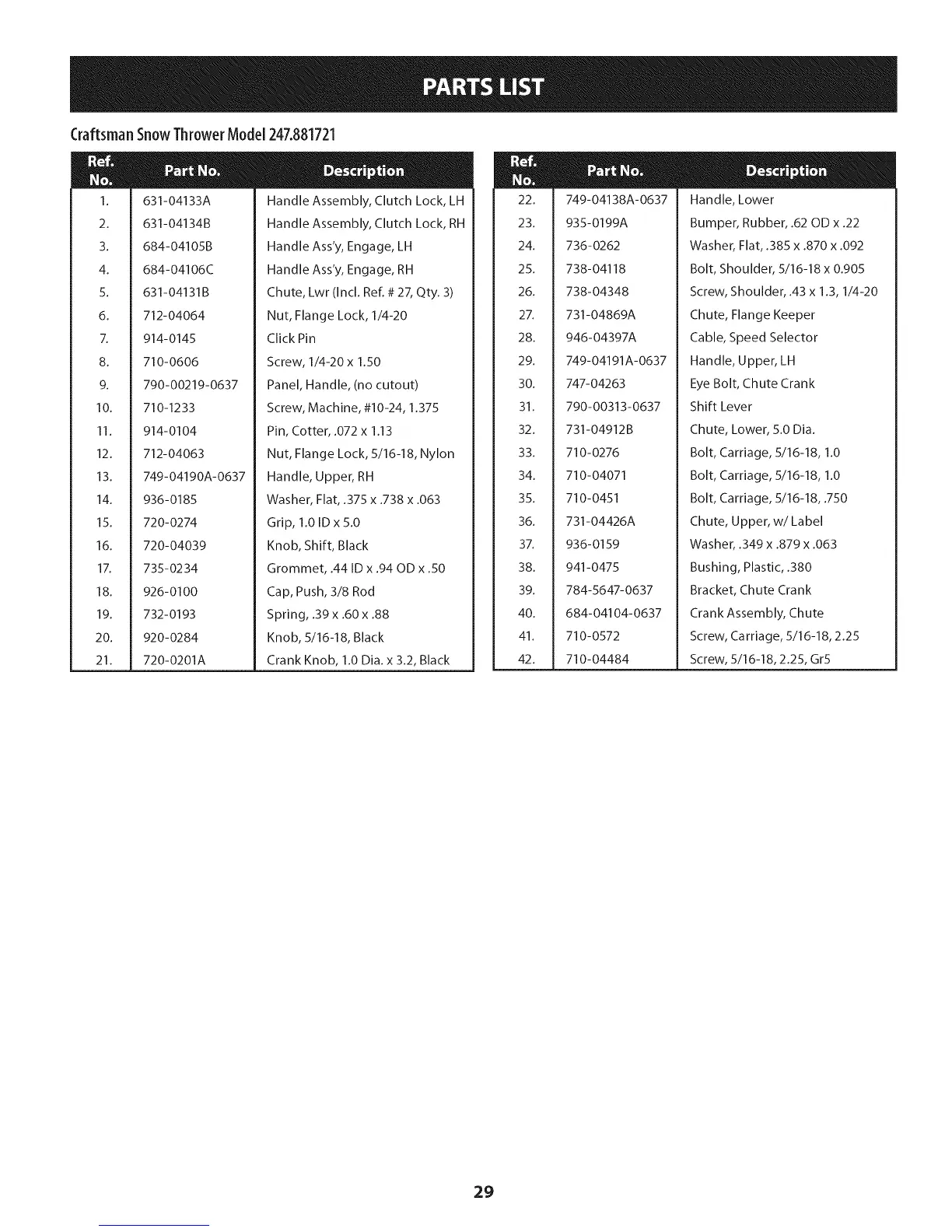

Craftsman 247.881721 - Page 29

CraftsmanSnowThrowerModel247.881721
m
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
631 -04133A
631-04134B
684-04105B
684-04106C
631-04131B
712-04064
914-0145
710-0606
790-00219-0637
710-1233
914-0104
712-04063
749-04190A-0637
936-0185
720-0274
720-04039
735-0234
926-0100
732-0193
920-0284
720-0201A
Handle Assembly, Clutch Lock, LH
Handle Assembly, Clutch Lock, RH
Handle Ass'y, Engage, LH
Handle Ass'y, Engage, RH
Chute, Lwr (Incl. Ref. # 27, Qty. 3)
Nut, Flange Lock, 1/4-20
Click Pin
Screw, 1/4-20 x 1.50
Panel, Handle, (no cutout)
Screw, Machine, #10-24, 1.375
Pin, Cotter, .072 x 1.13
Nut, Flange Lock, 5/16-18, Nylon
Handle, Upper, RH
Washer, Flat, .375 x .738 x .063
Grip, 1.0 ID x 5.0
Knob, Shift, Black
Grommet, .44 ID x .94 OD x .50
Cap, Push, 3/8 Rod
Spring, .39 x .60 x .88
Knob, 5/16-18, Black
Crank Knob, 1.0 Dia. x 3.2, Black
m
m
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.
37.
38.
39.
40.
41.
42.
749-04138A-0637
935-0199A
736-0262
738-04118
738-04348
731-04869A
946-04397A
749-04191A-0637
747-04263
790-00313-0637
Handle, Lower
Bumper, Rubber, .62 OD x .22
Washer, Flat, .385 x .870 x .092
Bolt, Shoulder, 5/16-18 x 0.905
Screw, Shoulder, .43 x 1.3, 1/4-20
Chute, Flange Keeper
Cable, Speed Selector
Handle, Upper, LH
Eye Bolt, Chute Crank
Shift Lever
731-04912B
710-0276
710-04071
710-0451
731-04426A
936-0159
941-0475
784-5647-0637
684-04104-0637
710-0572
710-04484
Chute, Lower, 5.0 Dia.
Bolt, Carriage, 5/16-18, 1.0
Bolt, Carriage, 5/16-18, 1.0
Bolt, Carriage, 5/16-18, .750
Chute, Upper, w/Label
Washer, .349 x .879 x .063
Bushing, Plastic, .380
Bracket, Chute Crank
Crank Assembly, Chute
Screw, Carriage, 5/16-18, 2.25
Screw, 5/16-18, 2.25, Gr5
29
