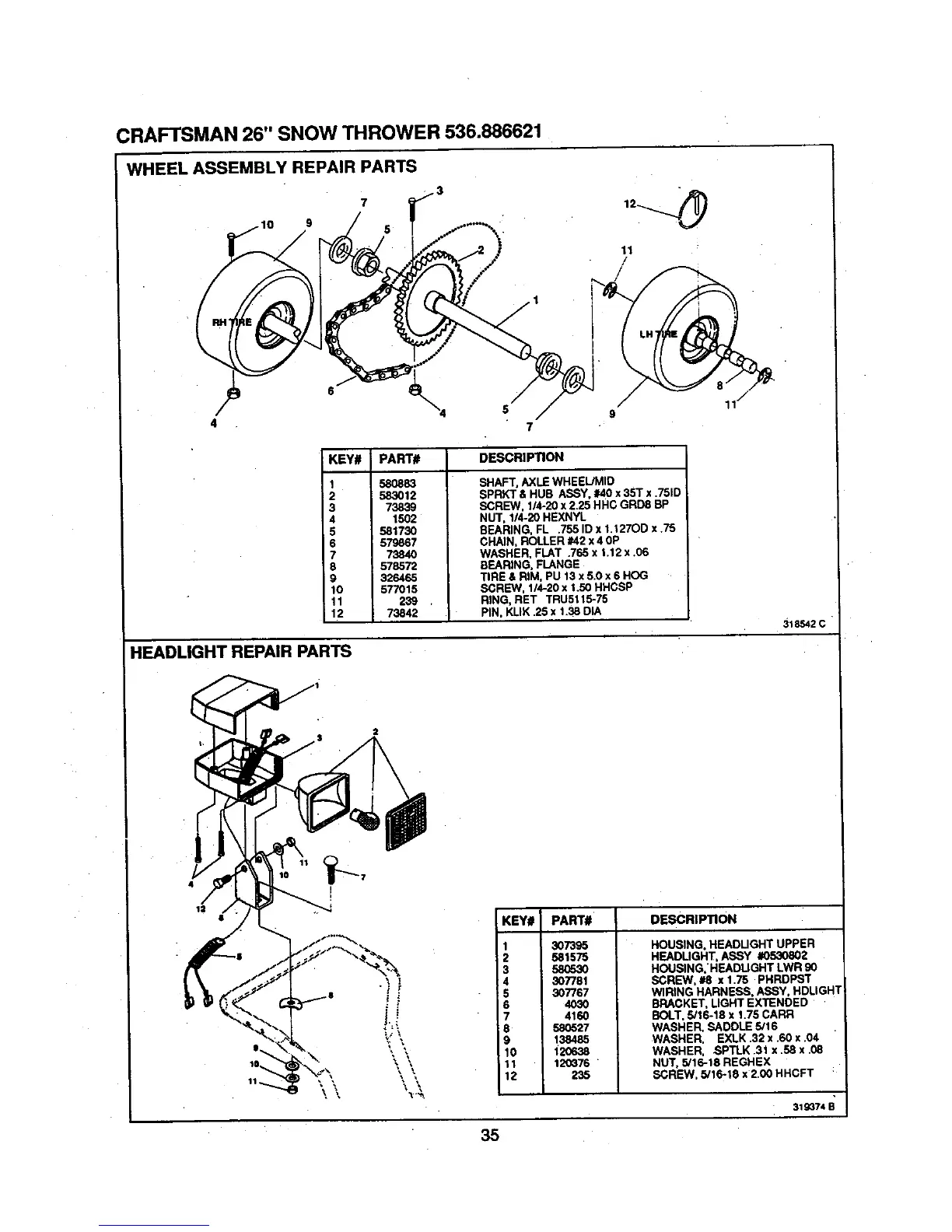

CRAFTSMAN 26" SNOW THROWER 536.886621
WHEEL ASSEMBLY REPAIR PARTS
7
9
5
6
4
9
7
"---0
11
/
;KEY#
3
4
5
6
7
8
9
10
11
12
PART# DESCRIPTION
.580_3
583012
73839
1502
581730
579867
73840
578572
326465
577015
239
73642
SHAFT, AXLE WHEEIJMID
SPRk3" x HUB ASSY, _10 x35T x .7510
SCREW. 114-20 x 2.25 HHC GRD8 SP
NUT, 1/4-20 HEXNYL
BEARING, FL .755 ID x 1.127OD x .75
CHAIN, ROLLER #42 x 40P
WASHER. FLAT .765 x 1.12 x .06
BEARING, FLANGE
TIRE & RIM, PU 13x 5.0 x 6 HOG
SCREW, 1/4-20 x 1.50 HHCSP
RING, RET TRU5115-75
PIN. KLIK .25 x 1.38 DIA
HEADLIGHT REPAIR PARTS
318542 C
\
\\
\\
\ \
•, \
KEY# PART# DESCRIPTION
307395
2 581575
3 58053O
:4 307781
5 307767
6 403O
7 4160
580527
138485
10 120638
HOUSING. HEADUGHT UPPER
HEAOUGHT, ASSY #0530802
HOUSINGj HEADUGHT LWR 90
SCREW, #8 x 1.75 PHRDPST
BRACKET, LIGHT EXTENDED
BOLT. 5/16-18 x 1.75 CARR
WASHER. SADDLE 5/16
WASHER. EXLK .32 x .60 x .04
WASHER. SPTLK .31 x .58 x .08
NUT, 5/16-18 REGHEX
SCREW. 5/16"18 x 2.00 HHCFT
35
: 319374 B
