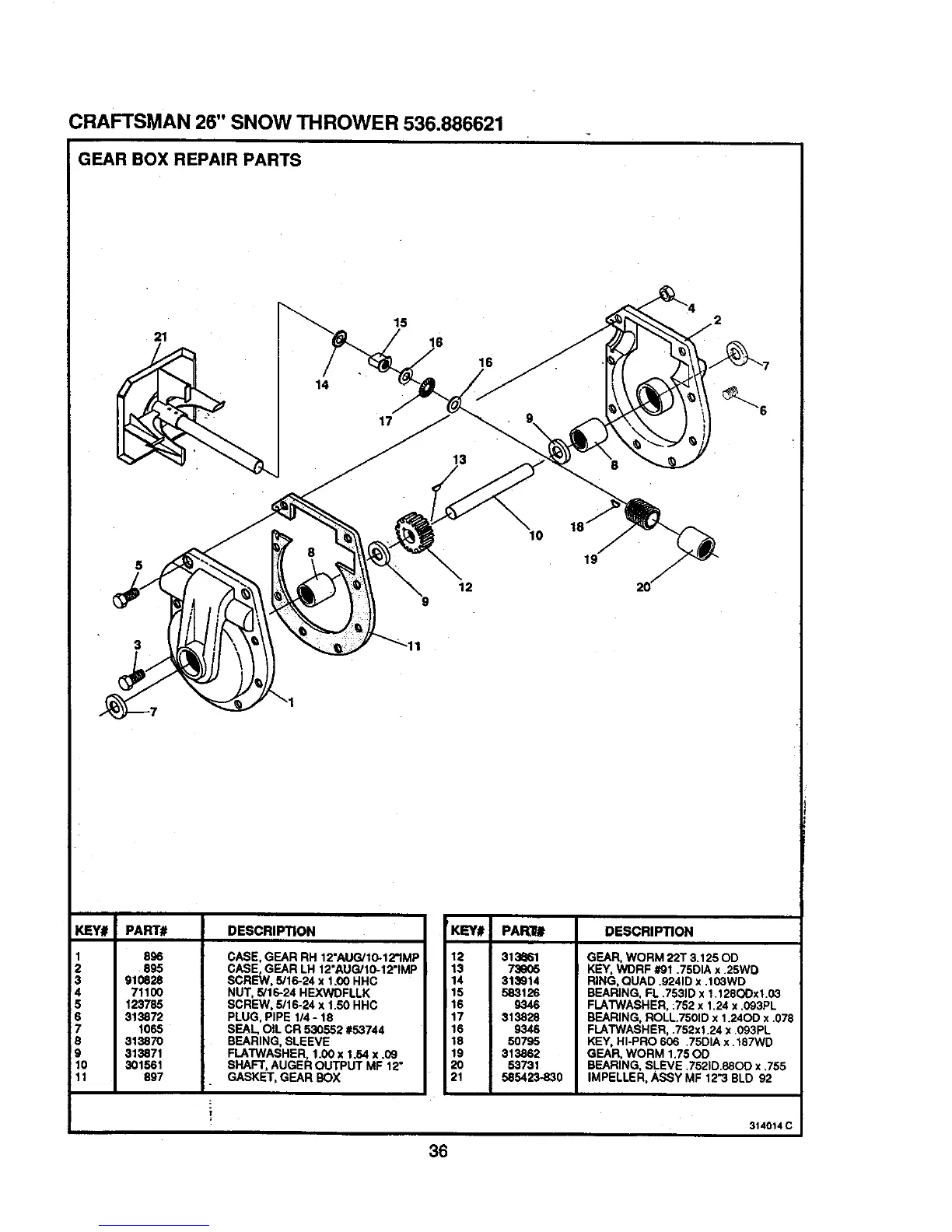

CRAFTSMAN 26" SNOW THROWER 536.886621
GEAR BOX REPAIR PARTS
15 _4 j2
/ J
KEY# PART# DESCRIPTION rKEY# PAP,Lll DESCRIPTION
1 896
2 895
3 910828
4 71100
5 123785
6 313872
7 106,5
8 313870
9 313871
10 301561
11 897
CASE, GEAR RH 12"AJUG/IO-12"IMP
CASE, GEAR LH 12"AUPM10-12"IMP
SCREW, 5/16-24 x 1.00 HHC
NUT, ,5/16-24 HEXWDFLLK
SCREW, 5/16-24 x 1.50 HHC
PLUG, PIPE 114- 18
SEAL OIL CR 530552 #53744
BEARING, SLEEVE
FLATWASHER, 1.00 x 1.54 x .09
SHAFT, AUGER OUTPUT MF 12"
GASKET, GEAR BOX
12 313661
13
14 313914
17 313828
16 9346
18 50795
19 313862
20 53731
21 585423-830
GEAR, WORM 22T 3.125 OD
KEY, WDRF #91.75DIA x .25WD
RING, QUAD .9241D x .t03WD
BEARING, FL .7531D x 1.128ODx1.03
FLA'rWASHER, ;752 x 1.24 x .093PL
BEARING, ROLL7501D x 1.24OO x .078
FLATWASHER, .752xl.24 x .093PL
KEY, HI-PRO 606 .75DIA x. 187WD
GEAR, WORM 1.75 OD
BEARING, SI-EVE .75210.8800 x .755
IMPELLER, ASSY MF 12"3 BLD 92
314014C
36
