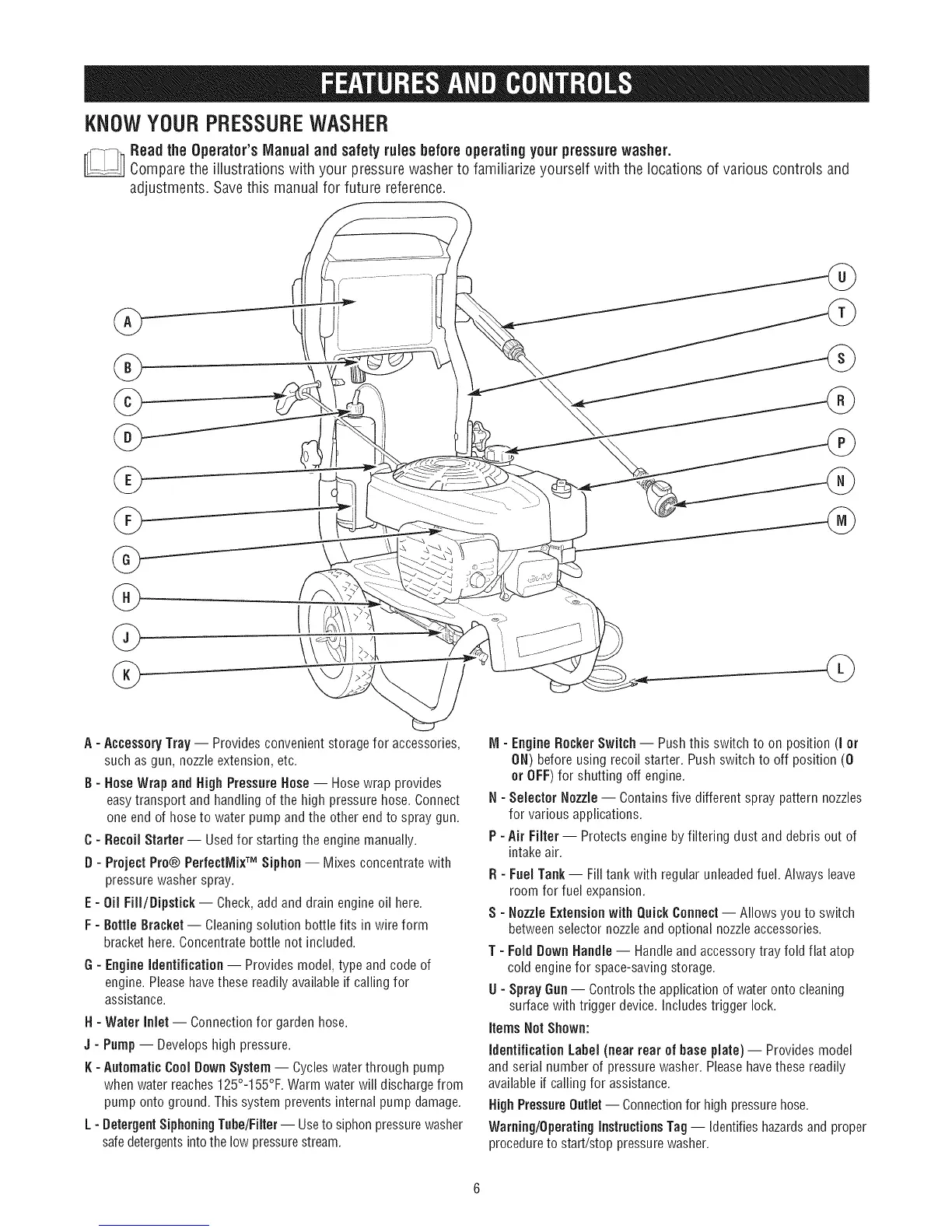

KNOWYOURPRESSUREWASHER
Readthe Operator'sManual and safetyrules before operating your pressure washer.
Compare the illustrations with your pressure washer to familiarize yourself with the locations of various controls and
adjustments. Save this manual for future reference.
A- AccessoryTray-- Provides convenient storage for accessories,
such as gun, nozzleextension, etc.
B - Hose Wrap and High PressureHose-- Hose wrap provides
easytransport and handling of the high pressure hose. Connect
one end of hose to water pump and the other end to spray gun.
C- Recoil Starter-- Used for starting the engine manually.
D - ProjectPro@ PerfectMWM Siphon -- Mixes concentrate with
pressure washer spray.
E - Oil Fill/Dipstick -- Check,add and drain engine oil here.
F - Bottle Bracket -- Cleaning solution bottle fits in wire form
bracket here. Concentrate bottle not included.
G - EngineIdentiDcation-- Provides model, type and code of
engine. Pleasehavethese readily available if calling for
assistance.
H - Water Inlet-- Connection for garden hose.
J - Pump-- Develops high pressure.
K- AutomaticCool DownSystem -- Cycleswater through pump
when water reaches125°-155°F. Warm water will discharge from
pump onto ground. This system preventsinternalpump damage.
L - DetergentSiphoning Tube/Filter-- Useto siphon pressurewasher
safedetergentsintothe low pressurestream.
IVi- EngineRockerSwitch -- Pushthis switch to on position (I or
ON) before using recoil starter. Push switch to off position (0
or OFF) for shutting off engine.
N - Selector Nozzle-- Contains five different spray pattern nozzles
for various applications.
P - Air Filter -- Protects engine by filtering dust and debris out of
intake air.
R - Fuel Tank-- Fill tank with regular unleadedfuel. Always leave
room for fuel expansion.
S - Nozzle Extensionwith QuickConnect-- Allows you to switch
betweenselector nozzleand optional nozzleaccessories.
T - Fold DownHandle-- Handleand accessorytray fold fiat atop
cold engine for space-saving storage.
U- Spray Gun-- Controls the application of water onto cleaning
surface with trigger device, includes trigger lock.
items Not Shown:
identificationLabel (near rear of base plate) -- Provides model
and serial number of pressure washer. Pleasehave these readily
available if calling for assistance.
HighPressure Outlet-- Connectionfor high pressurehose.
Warning/Operating instructionsTag-- Identifieshazardsand proper
procedureto start/stop pressurewasher.
