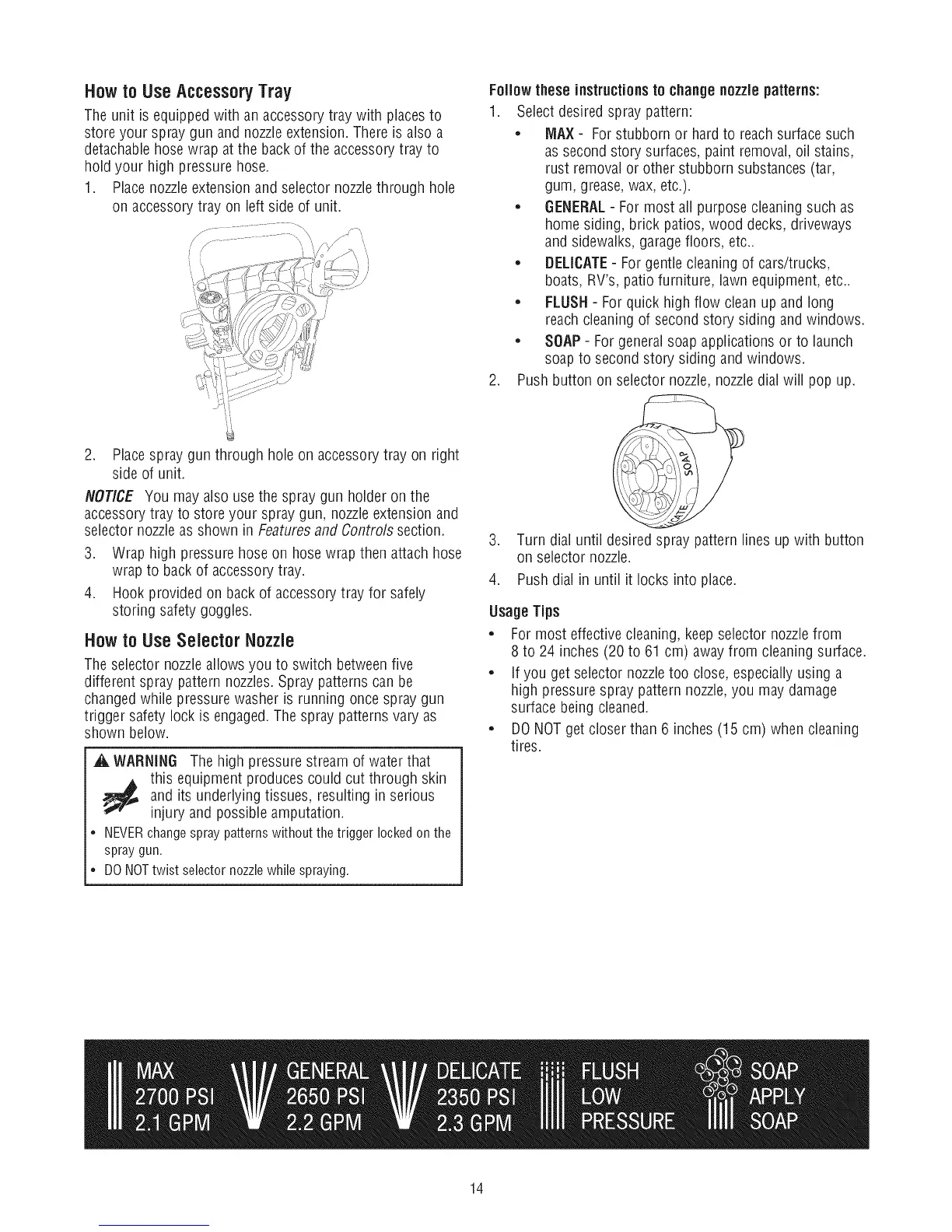

How to Use Accessory Tray
The unit is equipped with an accessory tray with places to
store your spray gun and nozzleextension. Thereis also a
detachablehosewrap atthe back of the accessory tray to
hold your high pressure hose.
1. Placenozzleextensionand selector nozzlethrough hole
on accessory tray on left side of unit.
/ / ..................... \" \ _" ',
i zj\', i
2. Placespray gun through hole on accessory tray on right
side of unit.
flOTICE You may also use the spray gun holder on the
accessorytray to store your spray gun, nozzleextensionand
selector nozzleas shown in Featuresand Controls section.
3. Wrap high pressure hoseon hosewrap then attach hose
wrap to back of accessory tray.
4. Hook provided on back of accessory tray for safely
storing safety goggles.
Howto UseSelector Nozzle
Theselector nozzleallows you to switch betweenfive
different spray pattern nozzles.Spray patterns can be
changedwhile pressurewasher is running once spray gun
trigger safety lock is engaged.The spray patterns vary as
shown below.
A WARNING The high pressure stream of water that
this equipment produces could cut through skin
and its underlying tissues, resulting in serious
injury and possible amputation.
• NEVERchangespraypatternswithoutthetriggerlockedonthe
spraygun.
• DONOTtwist selectornozzlewhilespraying.
Followtheseinstructionsto changenozzle patterns:
1. Select desired spray pattern:
* MAX- Forstubborn or hard to reachsurfacesuch
assecond story surfaces, paint removal, oil stains,
rust removal or other stubborn substances(tar,
gum, grease,wax, etc.).
GENERAl_- For most all purposecleaning such as
home siding, brick patios, wood decks, driveways
and sidewalks, garagefloors, etc..
DELICATE- Forgentle cleaningof cars/trucks,
boats, RV's, patio furniture, lawn equipment, etc..
FLUSH- For quick high flow clean up and long
reachcleaning of second story siding and windows.
SOAP- Forgeneral soap applications or to launch
soapto second story siding and windows.
2. Push button on selector nozzle,nozzledial will pop up.
3. Turndial until desired spray pattern lines up with button
on selector nozzle.
4. Push dial in untilitlocks into place.
Usage Tips
* For most effective cleaning, keep selector nozzlefrom
8 to 24 inches (20 to 61 cm) away from cleaning surface.
If you get selector nozzletoo close, especially using a
high pressure spray pattern nozzle,you may damage
surface being cleaned.
DONOTget closer than 6 inches (15 cm) when cleaning
tires.
