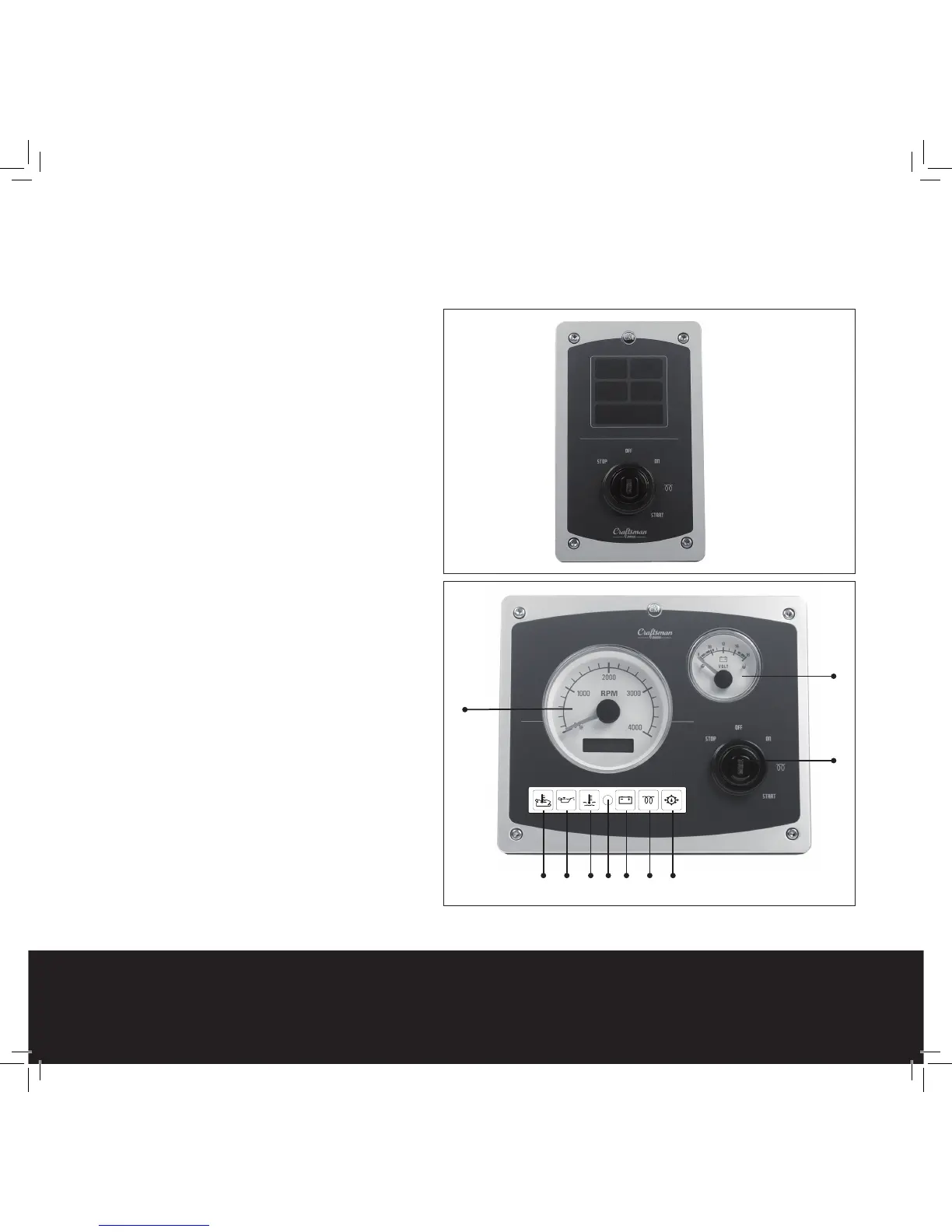

Standard panel type Alfa10E / Alfa20E
1. Revolution counter / hour counter
2. Voltmeter
3. Starter switch
4. Monitoring light temperature raw water
5. Monitoring light oil pressure engine
6. Monitoring light cooling liquid temperature
7. Sensor for automatic backlight dimming
8. Monitoring light charging current
9. Monitoring light pre-heating system
10. Low oil pressure gearbox
Optional
The voltmeter may be replaced by a temperature gauge
9 Prior to commissioning the engine
Engine instrument and control panels
16 craftsman marine diesel engines CM2.12 , cm2.16 / cm3.27
4. 5. 6. 7. 8. 9. 10.
1.
2.
3.
Alfa 20 E
Alfa 10 E
