Creality Ender-5 Plus

M5X25
8pcs
2040 Aluminum
profile(4Pcs)
Bottom Frame
Ready:

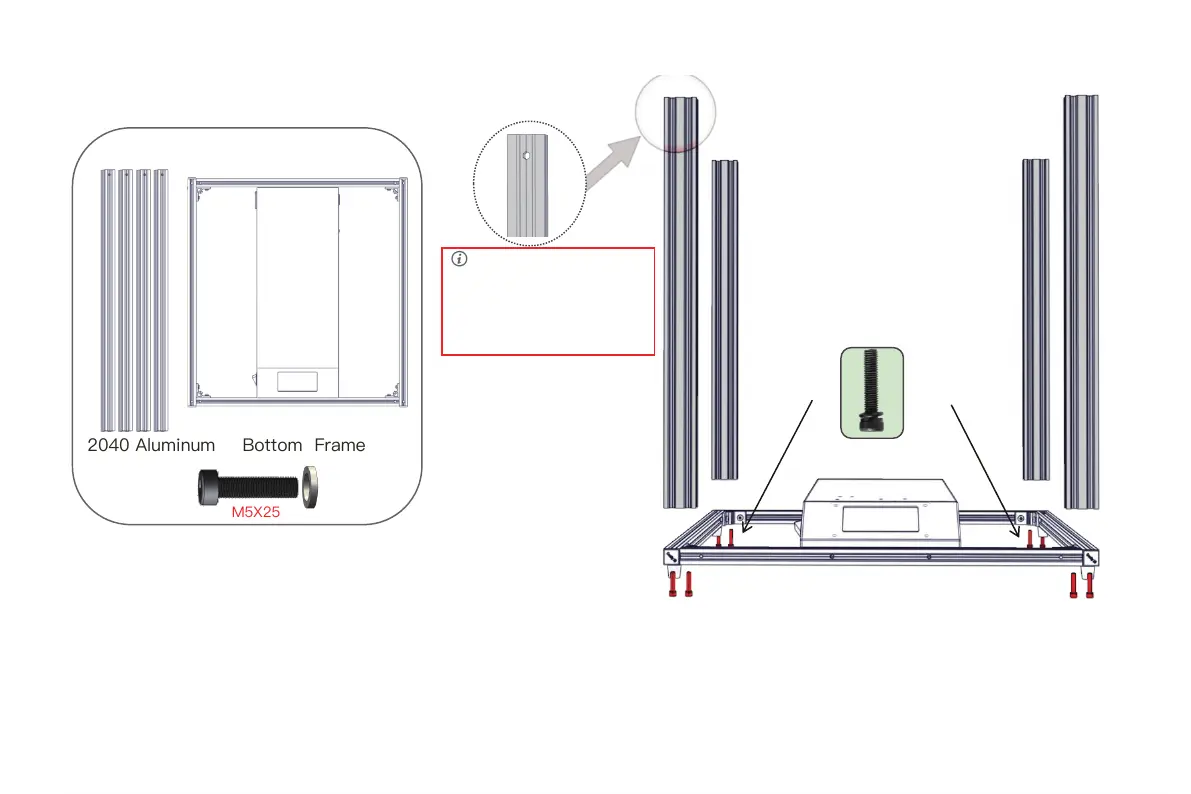

Step 1. Keep the front of the Bottom Frame facing you.
Step 2. Take one of the Aluminum frame pieces and place it in the corner of the bottom frame , On top of the frame, and lined up
with the corner. Notice the hole at the top of piece facing left and right, in relation to the front of the printer. Use 2 M5x25
screws and washers to secure part to the bottom frame.
Step 3. Install the remaining 2 aluminum profile in the same way as Step 3.
Note: Please note that
the hole at the top of piece
facing left and right, in
relation to the front of the
printer.
Frame Assembly Pt. 1
21
