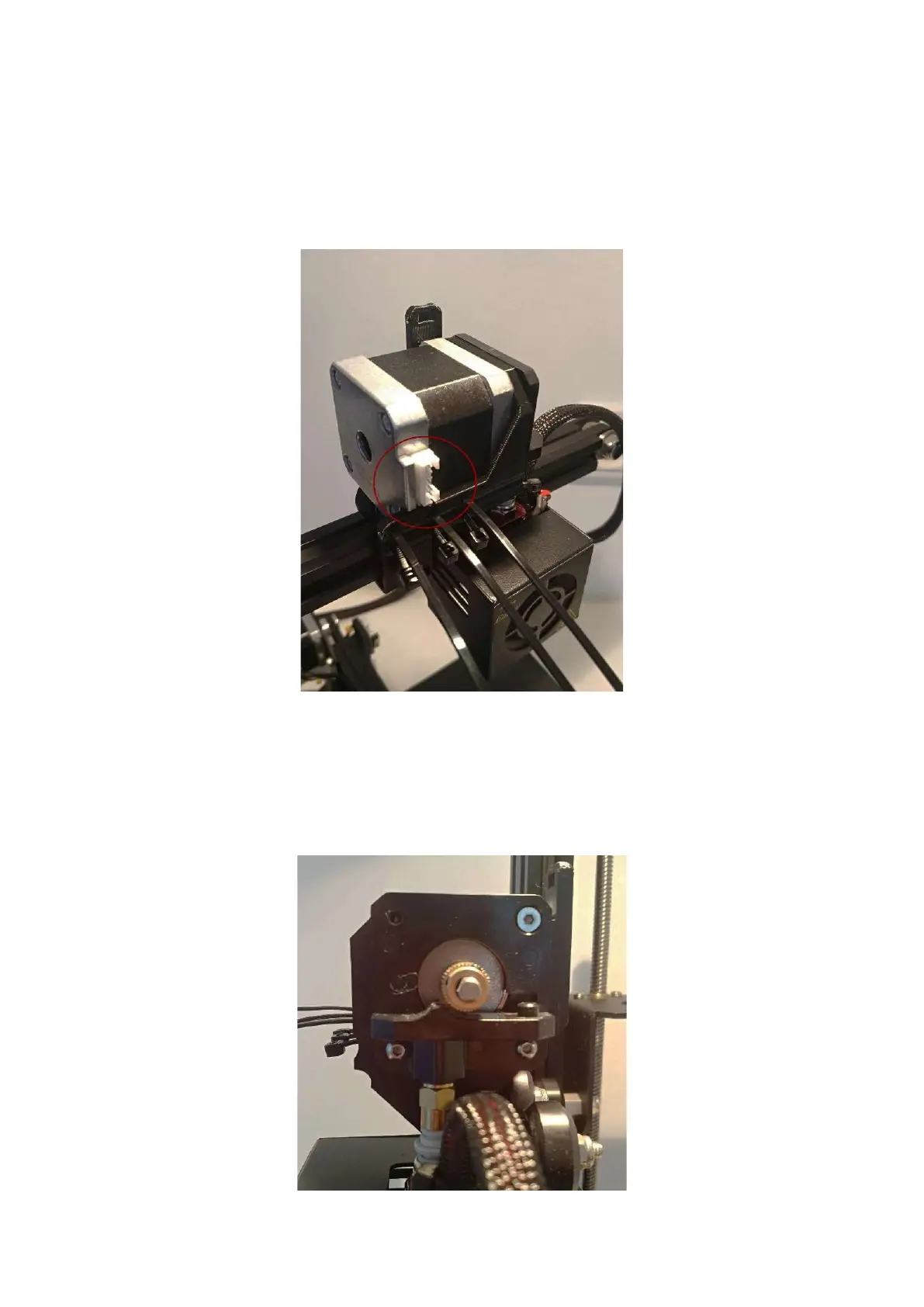

Place the extruder motor on the PFTE adapter, making sure that the wire connector faces in the
direction you want: if you are using the horizontal piece of the PTFE adapter, then let the white wire
connector face as shown below, if you are using the vertical piece of the PTFE adapter then the
white wire connector should face away from you when the printer is placed as shown below.
18
Connect the extruder motor to the PTFE adapter and the adapter with the push-fitting using the
three screws you removed in step 3 as shown below – the screws go into the same holes as you
screwed them out of earlier.
