7.1 Syncing to Cameras
The Vortex8 can be triggered from an external source, such as a sync generator (e.g. Ambient Lockit ACN-CL), or the genlock output of a cinema camera to
ensure that it is synchronised with the camera shutter. This can be used to solve the frame tearing / flash banding problem most digital CMOS cameras can
have with any flashing or strobing light source. It can also be used for frame-accurate strobing for advanced special eects, for frame rates up to 5,000fps.
7. Camera Sync
1
flashbandit
CS Accessory Converter
CSU-ACC-CONV
Accessory Input Port
2
3
4
5
6
CS Flashbandit
CS-SYNC
Cinema Camera
Sync Input
CS Vortex8 Fixture
CSV-8
Sync Generator
(Eg. Ambient Lockit)
BNC-T Adpater
CS Accessory to BNC Cable
CSV-ACC-BNC
Sync Ouput
BNC Extension Cable
Cinema Camera
8
7
Accessory Input Port
CS Vortex8 Fixture
CSV-8
9

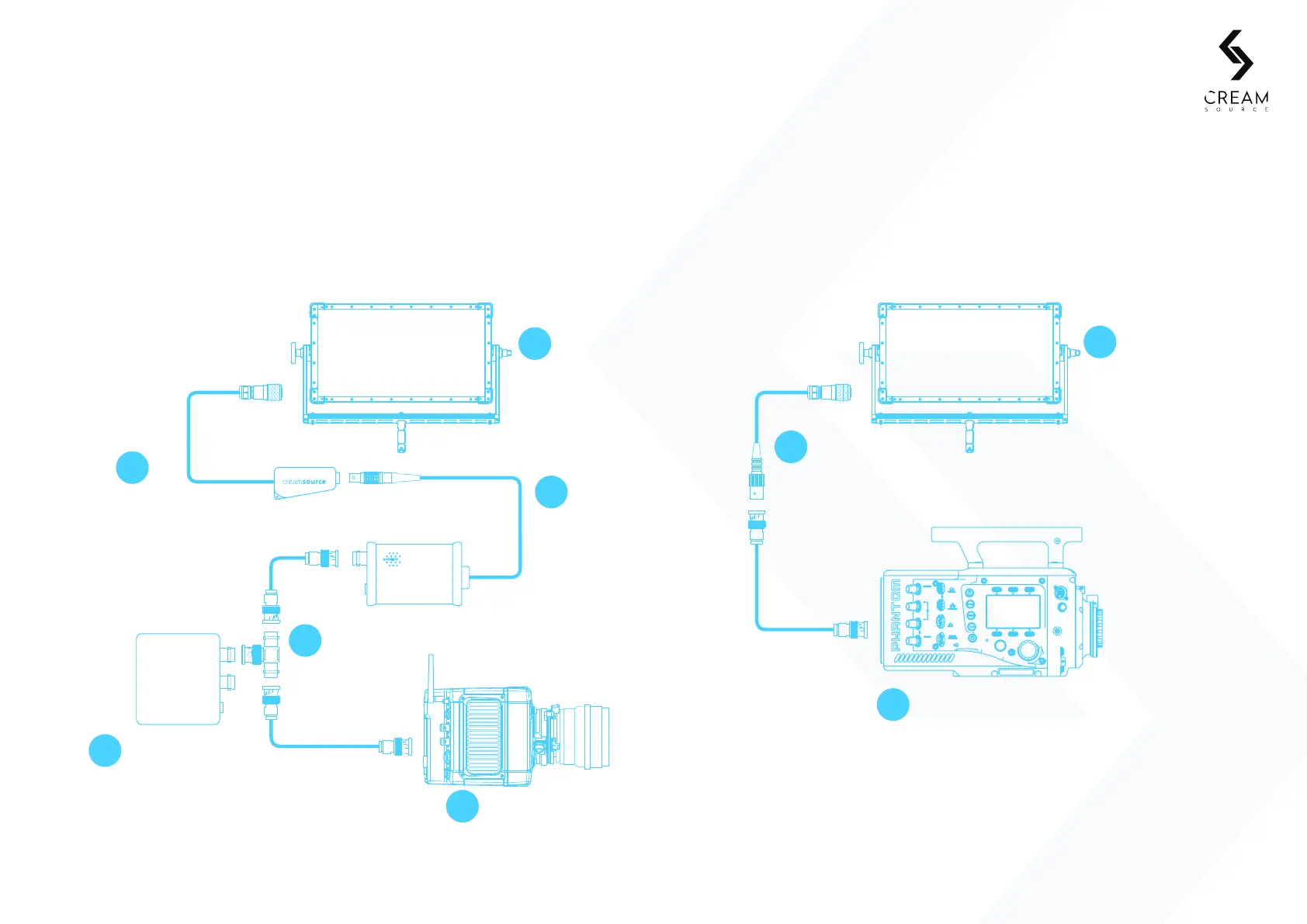

Syncing to Camera with Sync/Genlock Input Syncing to Camera with Sync/Genlock Output
