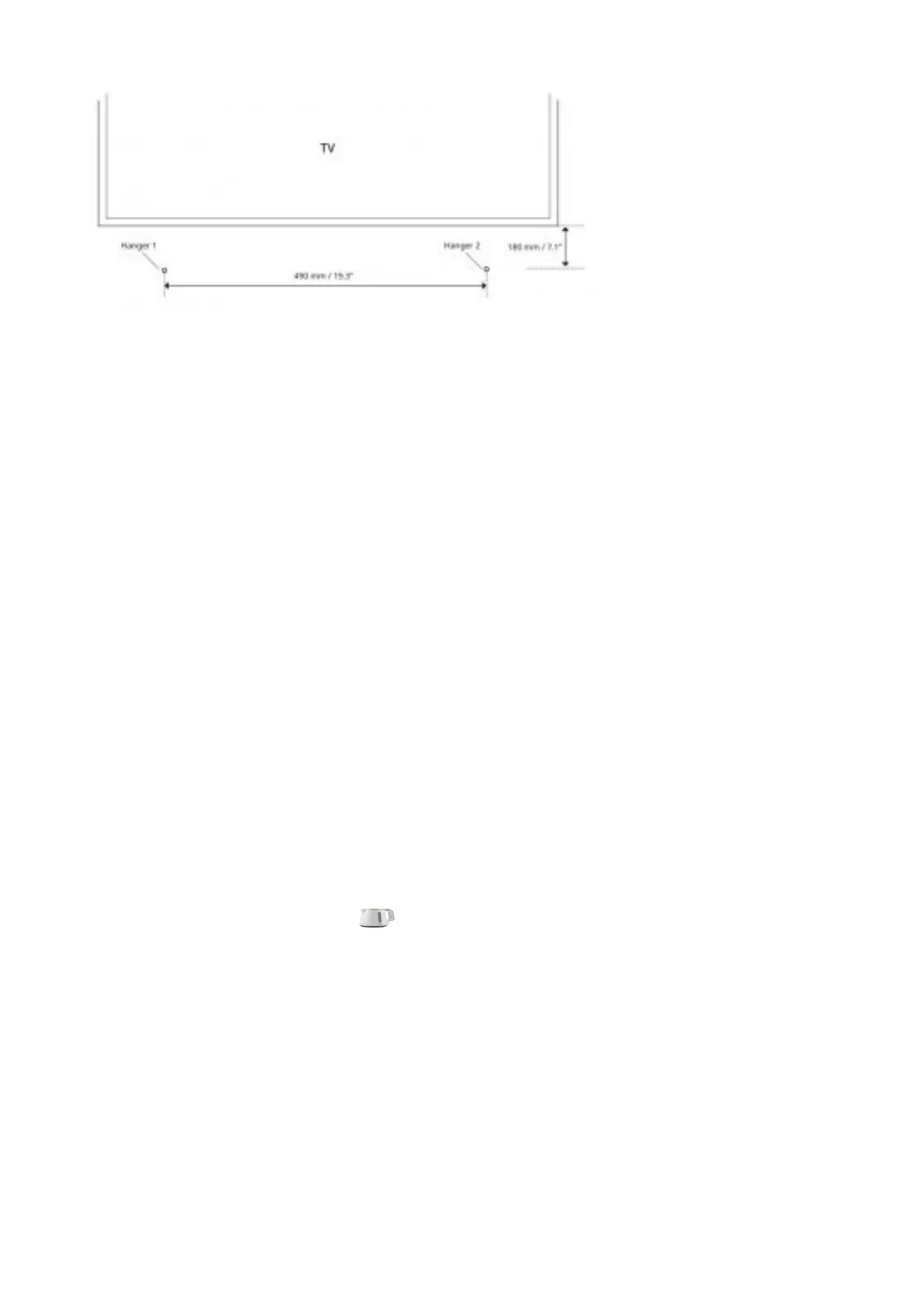

2. Note and mark out the recommended hanger locations according to the diagram below. Ensure that they do not
intersect with buried pipes, conduits, or cabling within the wall
Technical Specifications
Soundbar Model MF8345
Weight 3.6 kg / 7.9 lbs
Dimensions 880 x 76 x 128 mm / 34.6 x 3 x 5 inches
Operating Temperature Range 0–40°C
Amplifier Rated Output Power 36W x 7
Supported Formats LPCM 8 Ch, Dolby Digital, Dolby Atmos (TrueHD / Digital Plus)
Input Rating
24V 4A
Bluetooth Version 5.0 (BR / EDR / LE)
Operating Range 10m (33 ft), measured in open space
Frequency Operating Range 2402–2480 MHz
