7. Mode Selection
Press once to cycle through available Sound modes (Movie > Music > Night > Neutral > SuperWide). Press and
hold for 5s to enter subwoofer’s Pairing mode
8. Mode Selection LED
Flashing Green: Subwoofer Pairing
9. Built-in LED Display
10. Super X-Fi®
11. Super X-Fi LED
Headphone Mode:
Solid Green: Super X-Fi Headphone Holography Enabled
Solid Amber: Super X-Fi Headphone Holography Disabled
Flashing Red: Super X-Fi Profile Transfer in Progress
Speaker Mode:
OFF
Overview – Creative SXFI CARRIER

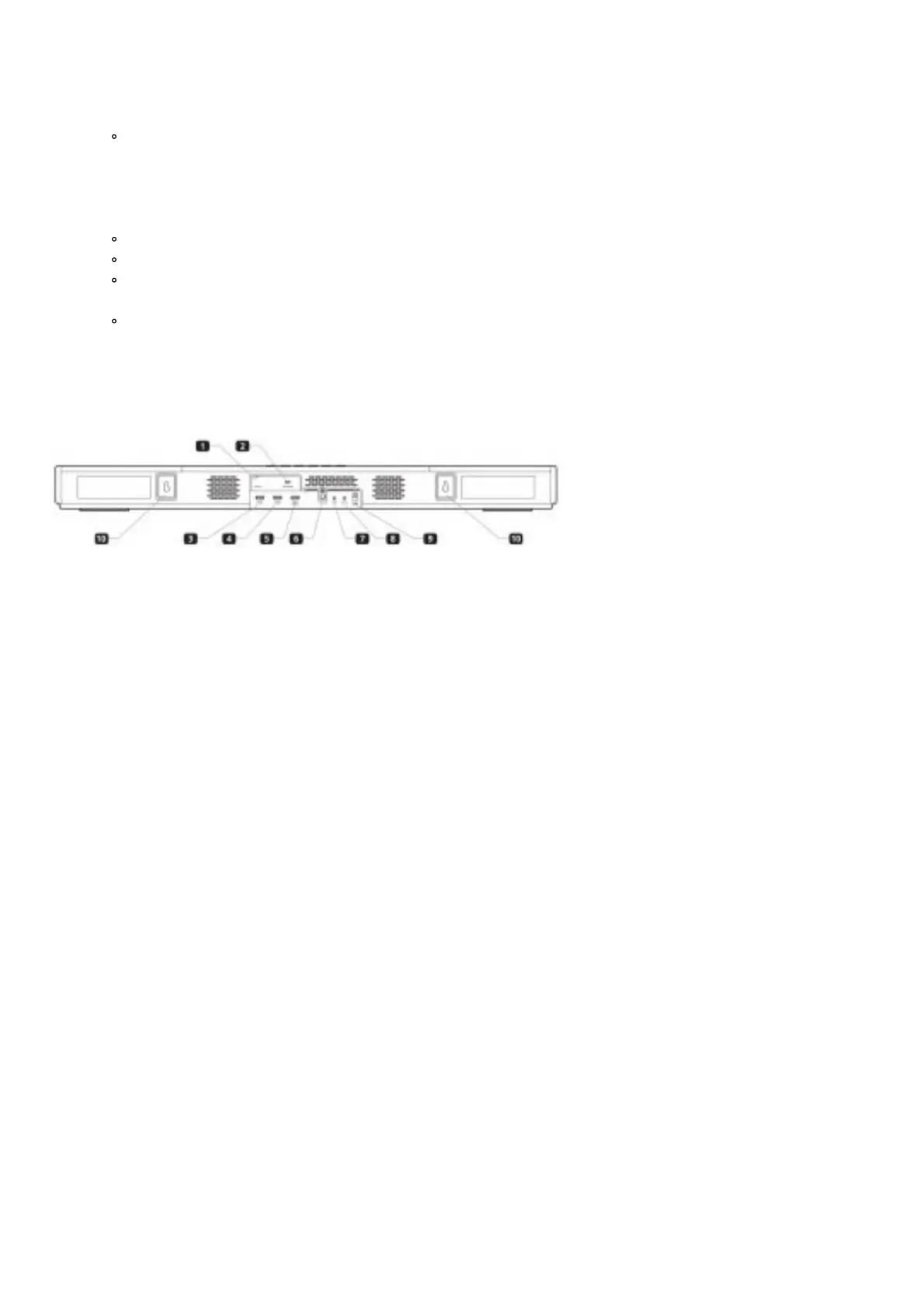

Rear Connectivity – Soundbar
1. SXFI OUT
SXFI-enabled USB Audio Output
2. USB AUDIO IN
USB Audio-in
3. HDMI 1
HDMI-in 1
4. HDMI 2
HDMI-in 2
5. HDMI OUT
Output to TV
6. OPTICAL IN
Optical-in (Dolby Audio / 24-bit 96 kHz Stereo PCM)
7. AUX
3.5 mm AUX-in
8. SUB OUT
3.5 mm Subwoofer Analog-out
9. 24V 4A
24V 4A DC-in
10. Mounting Brackets
Rear Connectivity – Subwoofer
