Crestron MC3 3-Series Control System™
Installation
Ventilation
The MC3 should be used in a well-ventilated area. To prevent overheating, do not
operate this product in an area that exceeds the environmental temperature range
listed in the table of specifications. Consider using forced air ventilation and/or
incrementing the spacing between units to reduce overheating. Consideration must
be given if installed in a closed or multi-unit rack assembly since the operating
ambient temperature of the environment may be greater than the room ambient
temperature. Contact with thermal insulating materials should be avoided on all sides
of the unit.
Stacking
Four “feet” are attached to the MC3 so that the rubber feet can provide stability when
the unit is placed on a flat surface or stacked.
NOTE: No more than two MC3 units should be stacked.
Hardware Hookup
Make the necessary connections as called out in the illustration that follows this
paragraph. Refer to “Network Wiring” on page 14 before attaching the 4-position
terminal block connector. Apply power after all connections have been made.
When making connections to the MC3, note the following:
• Use Crestron power supplies for Crestron equipment.
• The included cables cannot be extended.

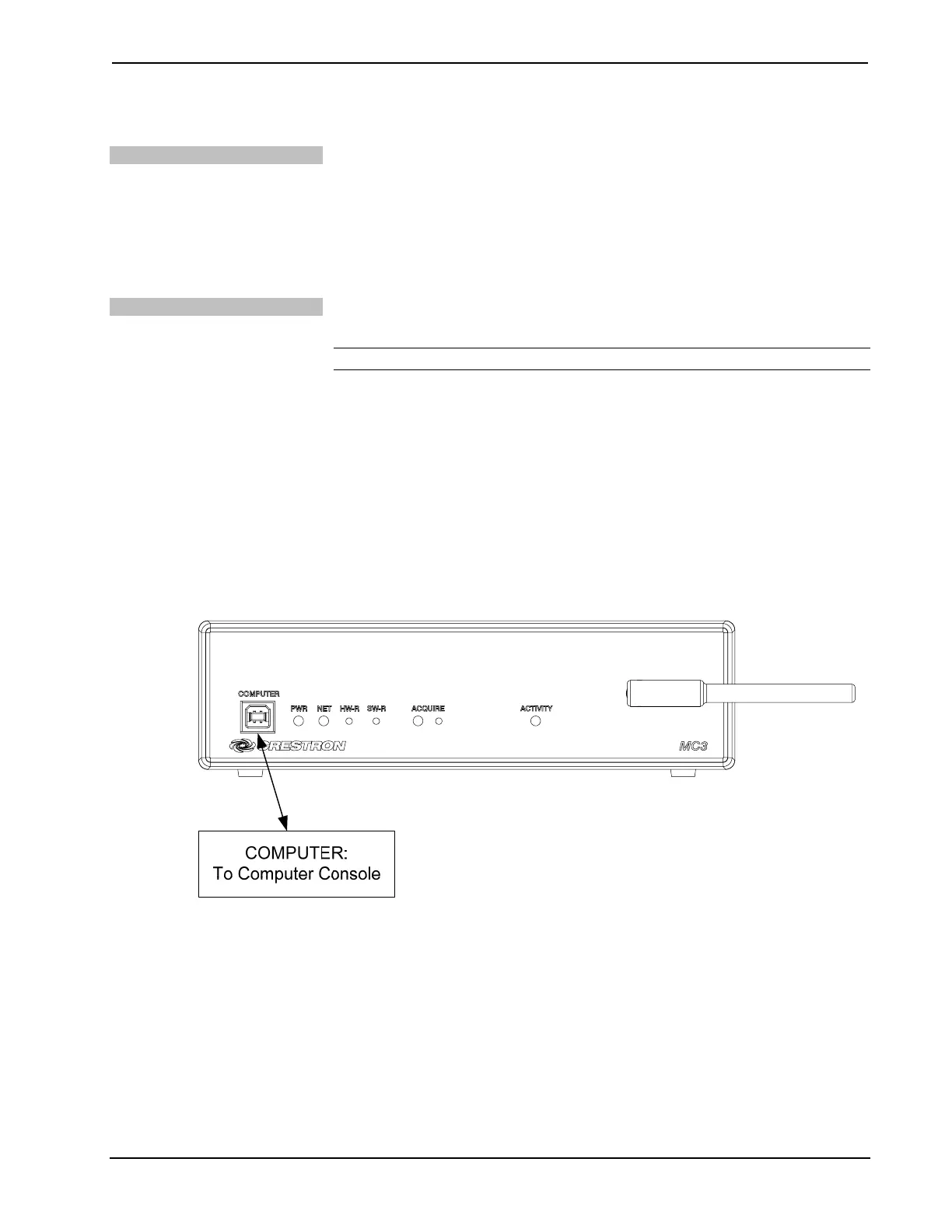

Hardware Connections for the MC3 (Front View)
Operations Guide – DOC. 7095D 3-Series Control System™: MC3 • 15
