Crestron AV2 & PRO2 2-Series Integrated Dual Bus Control System
note, to assign the join number. In the Page Channel area of this window, a specific
number can be assigned or with the appropriate button assign the next or highest
available.
Asserting the digital signal for a particular page join number (fb*** on the SIMPL
Window symbol) results in a jump to that page. When the system is on a page with a
join number, the digital signal corresponding to that join number is asserted for as
long as the system is on that page (press *** on the SIMPL Windows symbol).
In this note, *** is used to denote a wildcard.

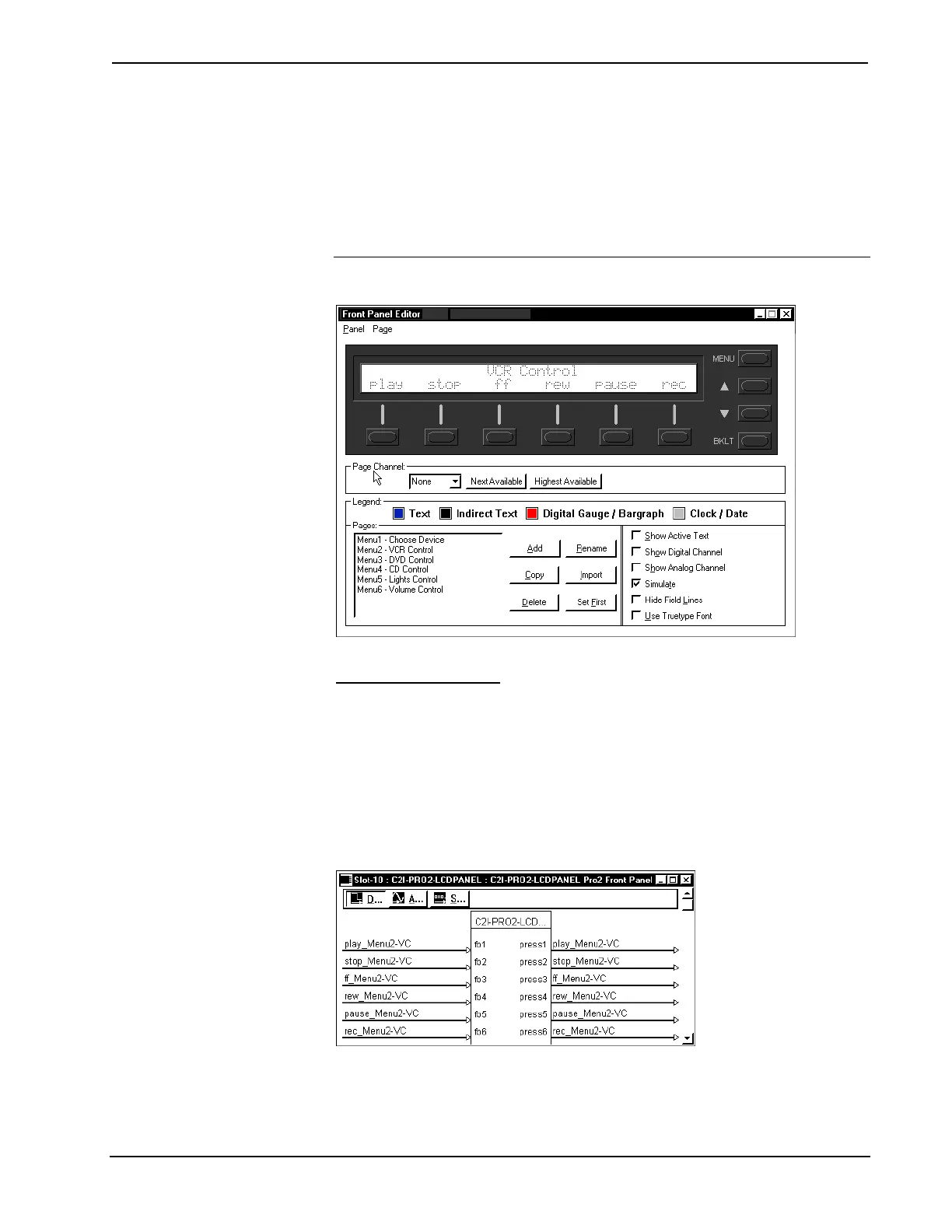

"Front Panel Editor" Window
Front Panel Symbol
A powerful tool to assist programmers in naming and routing signals for the LCD
screen is the Synchronize Signals command. While the panel appears on the PC
screen, select Panel | Synchronize Signal Names to automatically name all the input
and output signals for the front panel in the SIMPL Windows program. To confirm
the assignment and display the signal names, double click on Slot-10: C2I-PRO2-
LCDPANEL Pro2 Front Panel, which is available from the Central Control Modules
folder in the Program View of SIMPL Windows’ Program Manager. The symbol
appears in Detail View, as shown after this paragraph.
Front Panel Symbol Displayed in SIMPL Windows’ Detail View of Programming Manager
Operations Guide - DOC. 5957A Integrated Dual Bus Control System: AV2 & PRO2 • 37

Crestron AV2 Specifications

General

Internal memory	64 GB
Internal memory type	SDRAM
Internal storage capacity	0.004 GB
AC input voltage	100-250 V
AC input frequency	50 - 60 Hz
Power consumption (max)	50 W
Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black
Housing material	Metal

Weight and Dimensions

Depth	261.9 mm
Width	432.6 mm
Height	90.4 mm
Weight	3220 g
