Crestron AV2 User Manual

Crestron AV2 & PRO2 2-Series Integrated Dual Bus Control System
Once the cable connections are made, open the Crestron Viewport and click Setup |
Communication Settings on the menu to display the “Port Settings” window. Then
click TCP/IP as the connection type. Enter the IP address of the AV2/PRO2.

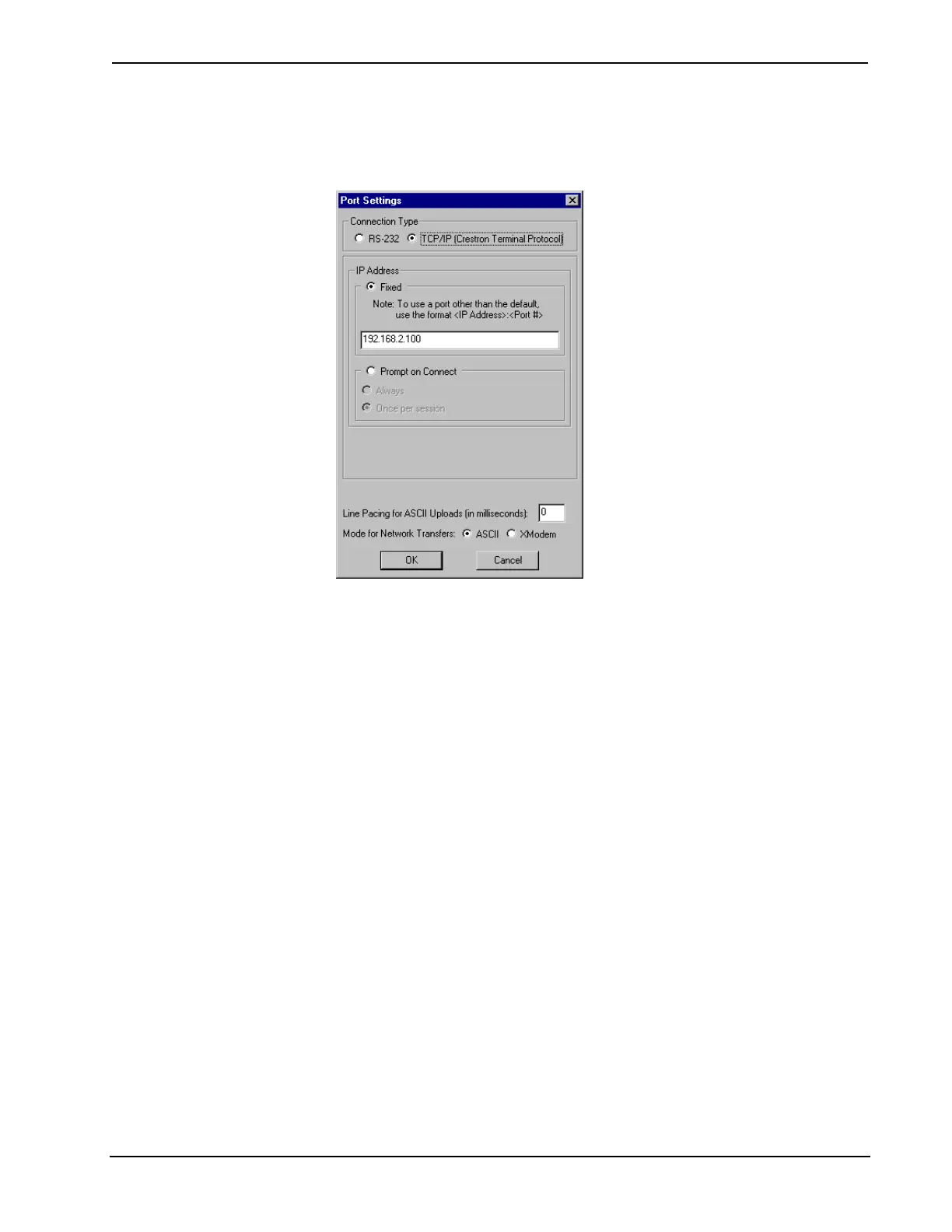

“Port Settings” Window
To verify communication, click Diagnostics | Establish Communications (Find
Rack). This should display a window that gives the IP address and port number.
Troubleshooting Communications
Use the following checklist if communication cannot be established with the
AV2/PRO2.
1. Verify that you are using the correct cables. As described previously,
an RS-232 connection requires a straight-through serial cable. That is,
pin 1 on one end is connected to pin 1 on the other end. Pin 2 connects
to pin 2, etc. With a TCP/IP connection, you must use a CAT5 cable
with 8-pin RJ45 connectors.
2. With a serial connection, verify that the correct COM port on the PC
has been selected. Some computers have more than one COM port;
some may be internal (e.g., for a modem). Consult the manufacturer’s
documentation for further information about the COM ports on your
PC.
3. Check the ERR LED indicator on the front panel of the AV2/PRO2. If
this LED is illuminated, unplug the unit and reapply power after a few
seconds. If the LED illuminates again, call Crestron customer service.
4. With a serial connection, reset the control system as follows:
a. Open Viewport and click Setup | Communications Settings to
display the “Port Settings” window. Choose RS-232 as the
connection type.
b. Set the baud rate of the PC to 115200.
Operations Guide - DOC. 5957A Integrated Dual Bus Control System: AV2 & PRO2 • 21

Crestron AV2 Specifications

General

Internal memory	64 GB
Internal memory type	SDRAM
Internal storage capacity	0.004 GB
AC input voltage	100-250 V
AC input frequency	50 - 60 Hz
Power consumption (max)	50 W
Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black
Housing material	Metal

Weight and Dimensions

Depth	261.9 mm
Width	432.6 mm
Height	90.4 mm
Weight	3220 g
