2-Series Integrated Dual Bus Control System Crestron AV2 & PRO2
Object Types
The sample discussed in the previous sections utilizes only one of the object types
available from the “Edit Panel Object” window, shown below. These object types are
not new to Crestron programmers; the same types are available in VisionTools™ Pro-e.

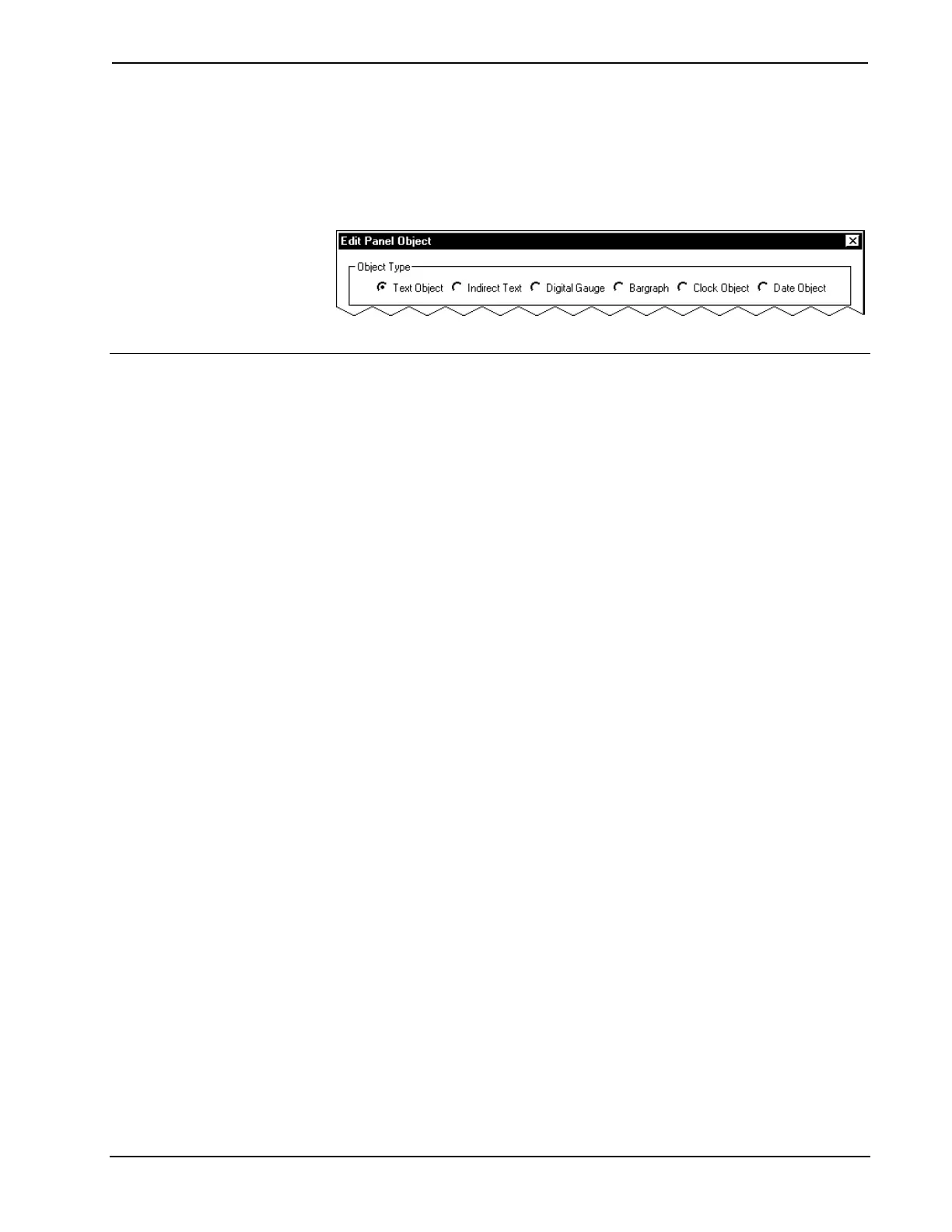

Object Type Area in the “Edit Panel Object” Window
Problem Solving
Problems may occur with the 2-Series integrated dual bus control system itself or
there may be serial communication difficulties with other devices connected to the
control system. The next two sections address possible problem solving tools or
procedures for each.
Possible Problems with the Control System
Troubleshooting the Control System
The table on the next page provides corrective action for possible trouble situations.
If further assistance is required, please contact a Crestron customer service
representative.
38 • Integrated Dual Bus Control System: AV2 & PRO2 Operations Guide - DOC. 5957A

Crestron AV2 Specifications

General

Internal memory	64 GB
Internal memory type	SDRAM
Internal storage capacity	0.004 GB
AC input voltage	100-250 V
AC input frequency	50 - 60 Hz
Power consumption (max)	50 W
Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black
Housing material	Metal

Weight and Dimensions

Depth	261.9 mm
Width	432.6 mm
Height	90.4 mm
Weight	3220 g
