Crestron AV2 User Manual

Crestron AV2 & PRO2 2-Series Integrated Dual Bus Control System
Front and Rear Panels
The front panels of both units include a single RS-232 computer port, standard
LEDs, and two reset buttons. The PRO2 front panel also includes a two-line, 40-
character per line reverse LCD screen with menu function and selection buttons, and
an extended bank of LED indicators. With the exception of the front panel computer
port, all connections to the units are made through their rear panels.

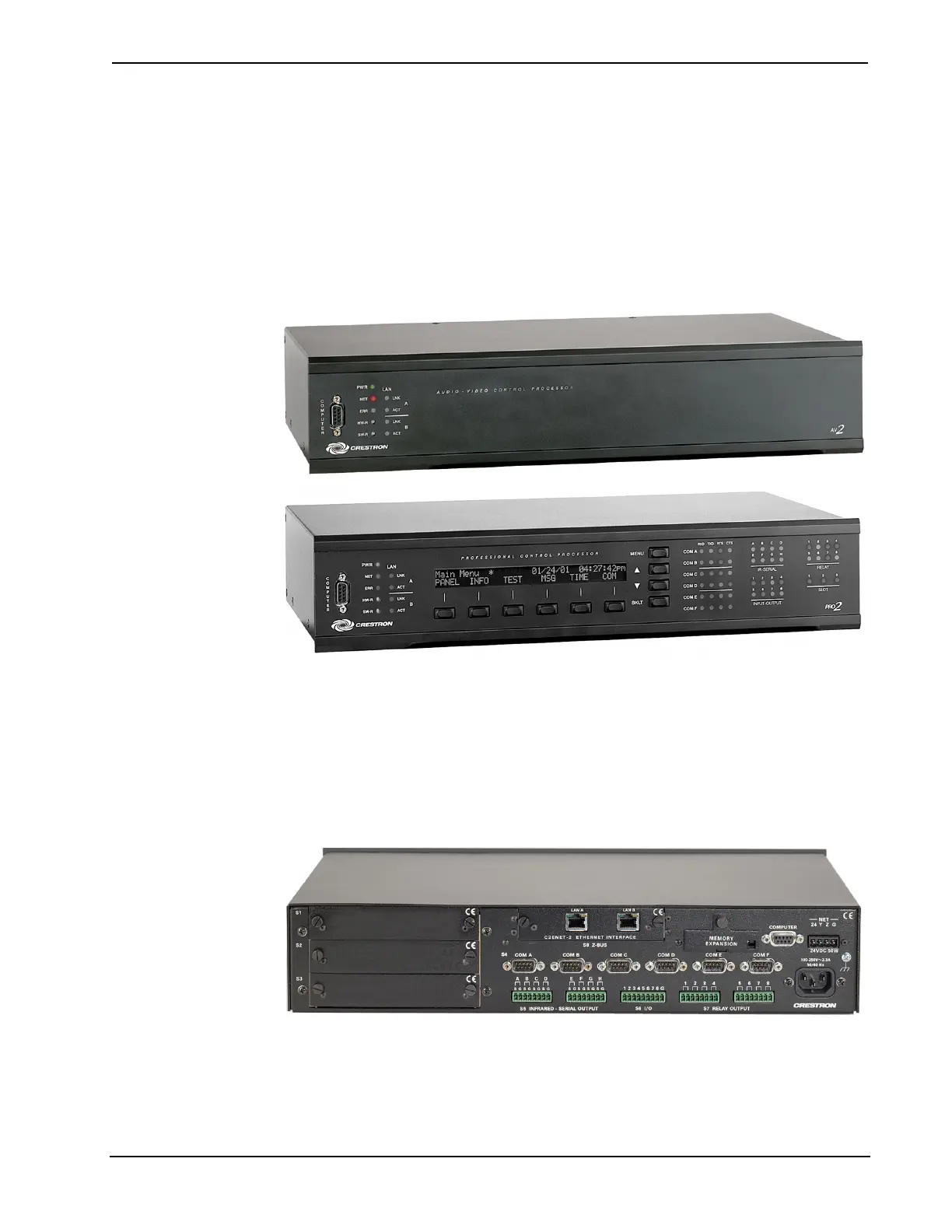

The front panels of the AV2 and PRO2 are shown below.
AV2/PRO2 Front Panels
The rear panels of the units are shown below and on the next page. Both units
contain a single RS-232 computer port, six COM ports, eight one-way IR/serial
ports, eight I/O ports, eight relay ports, a standard 4-wire Cresnet interface
connector, and a memory expansion slot.
The Z-BUS slot of both units is shown populated with a C2ENET-2 Ethernet
Interface card. The AV2 is shown with the optional Y_BUS card cage installed-no
cards mounted; the PRO2 is shown with the Y-BUS slots fully populated.
AV2/PRO2 Rear Panels
Operations Guide - DOC. 5957A Integrated Dual Bus Control System: AV2 & PRO2 • 5

Crestron AV2 Specifications

General

Internal memory	64 GB
Internal memory type	SDRAM
Internal storage capacity	0.004 GB
AC input voltage	100-250 V
AC input frequency	50 - 60 Hz
Power consumption (max)	50 W
Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black
Housing material	Metal

Weight and Dimensions

Depth	261.9 mm
Width	432.6 mm
Height	90.4 mm
Weight	3220 g
