Crestron DigitalMedia Room Controller DM-RMC-100 User Manual

Crestron DM-RMC-100 DigitalMedia™ Room Controller, CAT

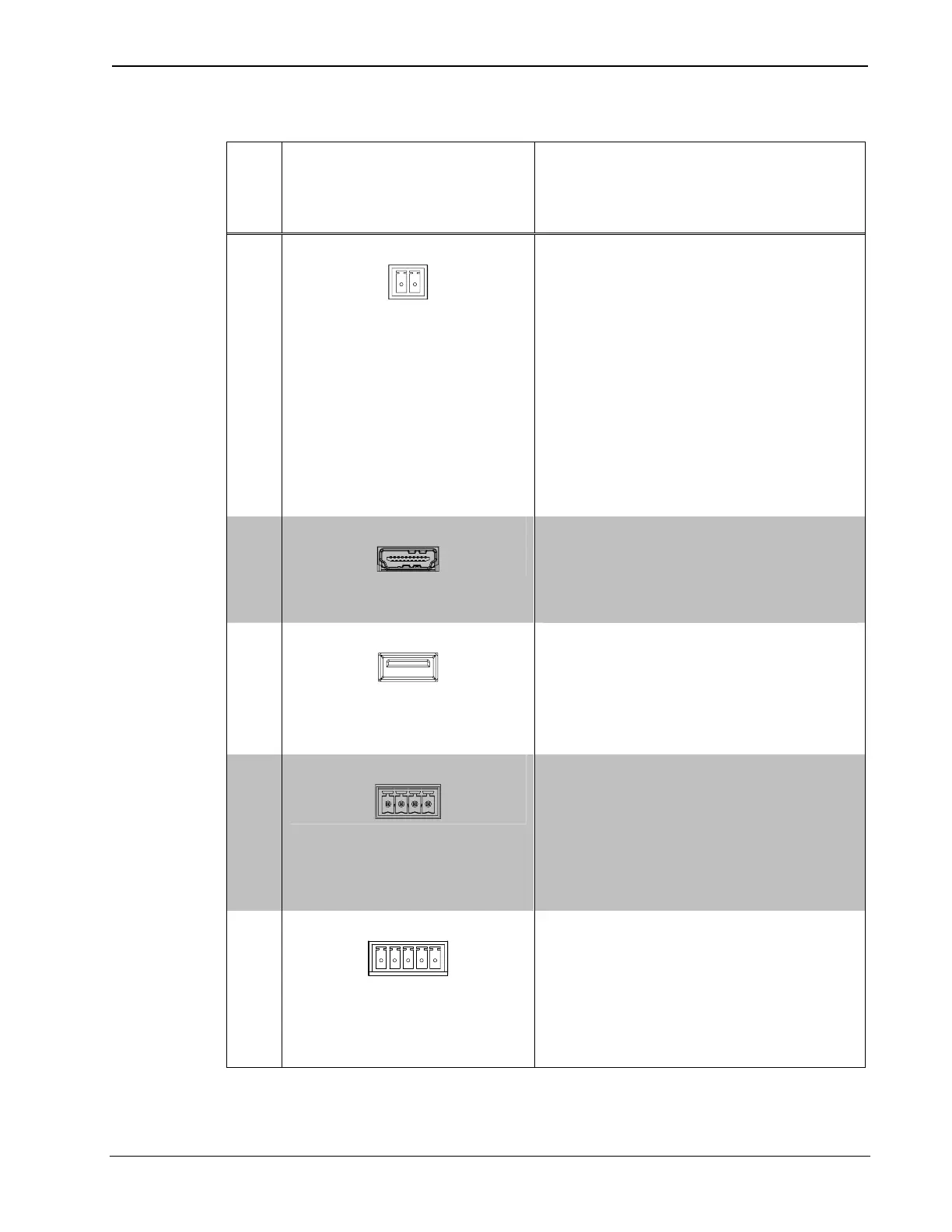

Connectors, Controls & Indicators (Continued)
# CONNECTORS
1
,
CONTROLS &
INDICATORS
DESCRIPTION
6 SENS
(1) 2-pin 3.5 mm detachable
terminal block;
Digital/contact closure sensing
input;
Rated for 0-24 Volts DC,
referenced to ground;
Input impedance: 2.2k ohms
pulled up to 5 Volts DC;
Logic threshold: 2.5 Volts DC
nominal with 1 Volt hysteresis
band
7 HDMI (1) 19-pin Type A HDMI
female;
HDMI digital video/audio output
Also supports DVI
2
8 USB
(1) USB Type A female;
USB 1.1 host port for
connection of a mouse,
keyboard or other USB
HID-compliant device
14 RELAY (1-2) (1) 4-pin 3.5 mm detachable
terminal block comprising two
normally open, isolated relays;
Rated 1 Amp, 30 Volts AC/DC;
MOV arc suppression across
contacts
15 COM
(1) 5-pin 3.5 mm detachable
terminal block, bidirectional
RS-232 port;
Up to 115.2k baud, hardware
and software handshaking
support
(Continued on following page)
Operations & Installation Guide – DOC. 6743-1F Room Controller, CAT: DM-RMC-100 • 15

Crestron DigitalMedia Room Controller DM-RMC-100 Specifications

General

Category	Controller
Type	DigitalMedia Room Controller
HDMI Output	1 HDMI output
Ethernet	10/100 Mbps; auto-switching
Control System	Crestron
Operating Temperature	32° to 104° F (0° to 40° C)
Humidity	10% to 90% RH (non-condensing)
IR/Serial	Yes
Relay	Yes
USB	Yes
DM 8G+ Input	1 DM 8G+ input
Analog Audio Output	1 analog stereo output
IR/Serial Port	1 IR/Serial port
Relay Port	1 relay port
USB Port	1 USB port
Input Connectors	DM 8G+
Output Connectors	HDMI, Analog Audio, IR/Serial, Relay
Audio Support	Stereo
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
