DigitalMedia Presentation Systems Crestron DMPS-100/200/300-C/300-C-AEC
8 • DigitalMedia Presentation Systems: DMPS-100/200/300-C/300-C-AEC Operations Guide – DOC. 7219D
Internal Block Diagram
The following diagrams represent the audio and video switching functions of the
DMPS-300-C and the DMPS-300-C-AEC.

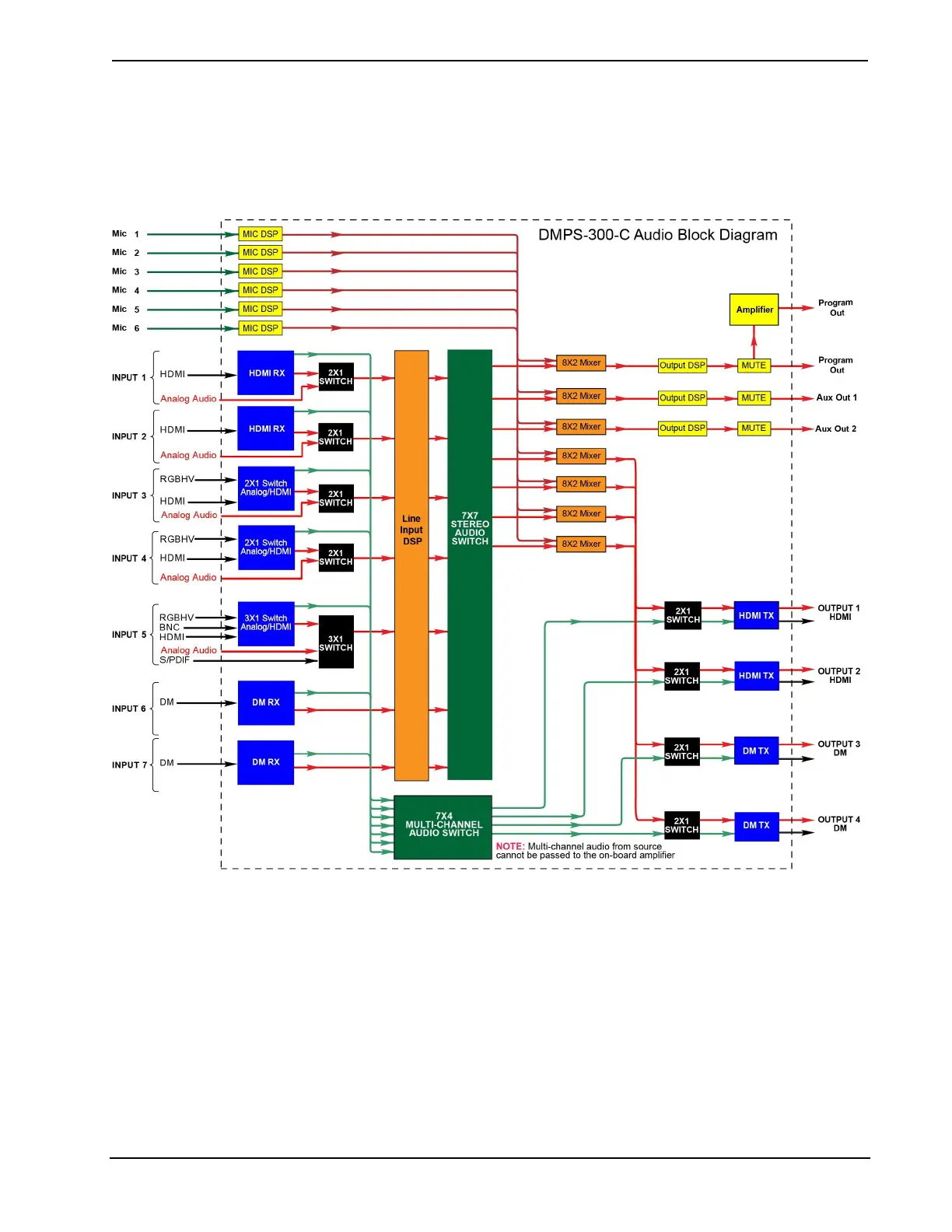

DMPS-300-C Audio Block Diagram
