Crestron DMPS-100/200/300-C/300-C-AEC DigitalMedia Presentation System
Operations Guide – DOC. 7219D DigitalMedia Presentation Systems: DMPS-100/200/300-C/300-C-AEC • 31
To install the ears use the following procedure:
CAUTION: To prevent equipment damage, use only the rack ears Crestron
provides for this device.
1. There are screws that secure each side of a DMPS-100/200/300-C top
cover. Using a #1 or #2 Phillips screwdriver, remove the three screws
closest to the front panel from one side of the unit. Refer to the diagram
following step 3 for a detailed view.
2. Position a rack ear so that its mounting holes align with the holes vacated
by the screws in step 1.
3. Secure the ear to the unit with three screws from step 1, as shown in the
following diagram.

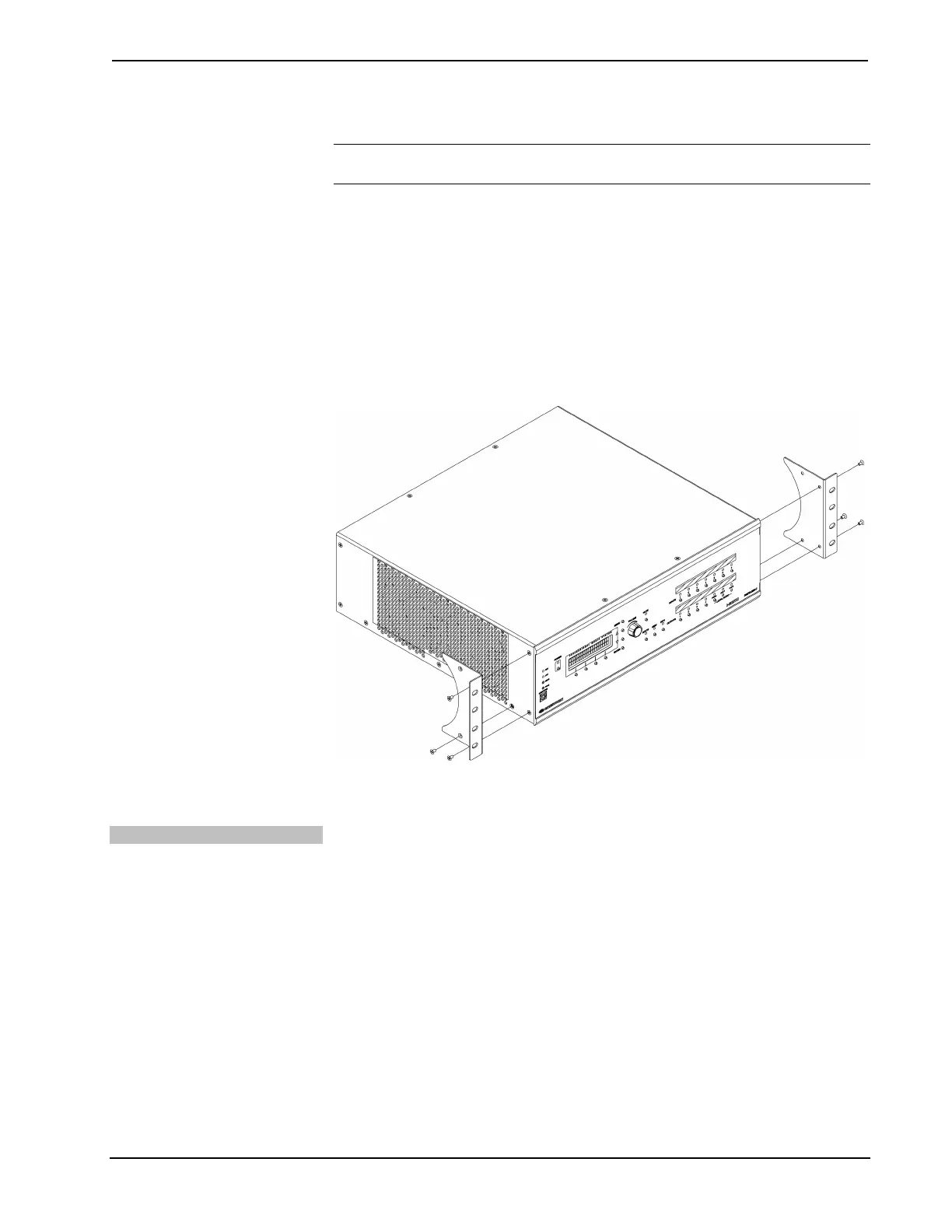

Ear Attachment for Rack Mounting
4. Repeat procedure (steps 1 through 3) to attach the remaining ear to the
opposite side.
Stacking
Four “feet” are provided with the DMPS-100/200/300-C so that if the unit is not rack
mounted, the rubber feet can provide stability when the unit is placed on a flat
surface or stacked. These feet should be attached prior to the hookup procedure.
Refer to the following illustration for placement of the feet.
