Crestron TPMC-8X-GA User Manual

Crestron TPMC-8X-GA Isys
®
8.4” WiFi Touch Screen

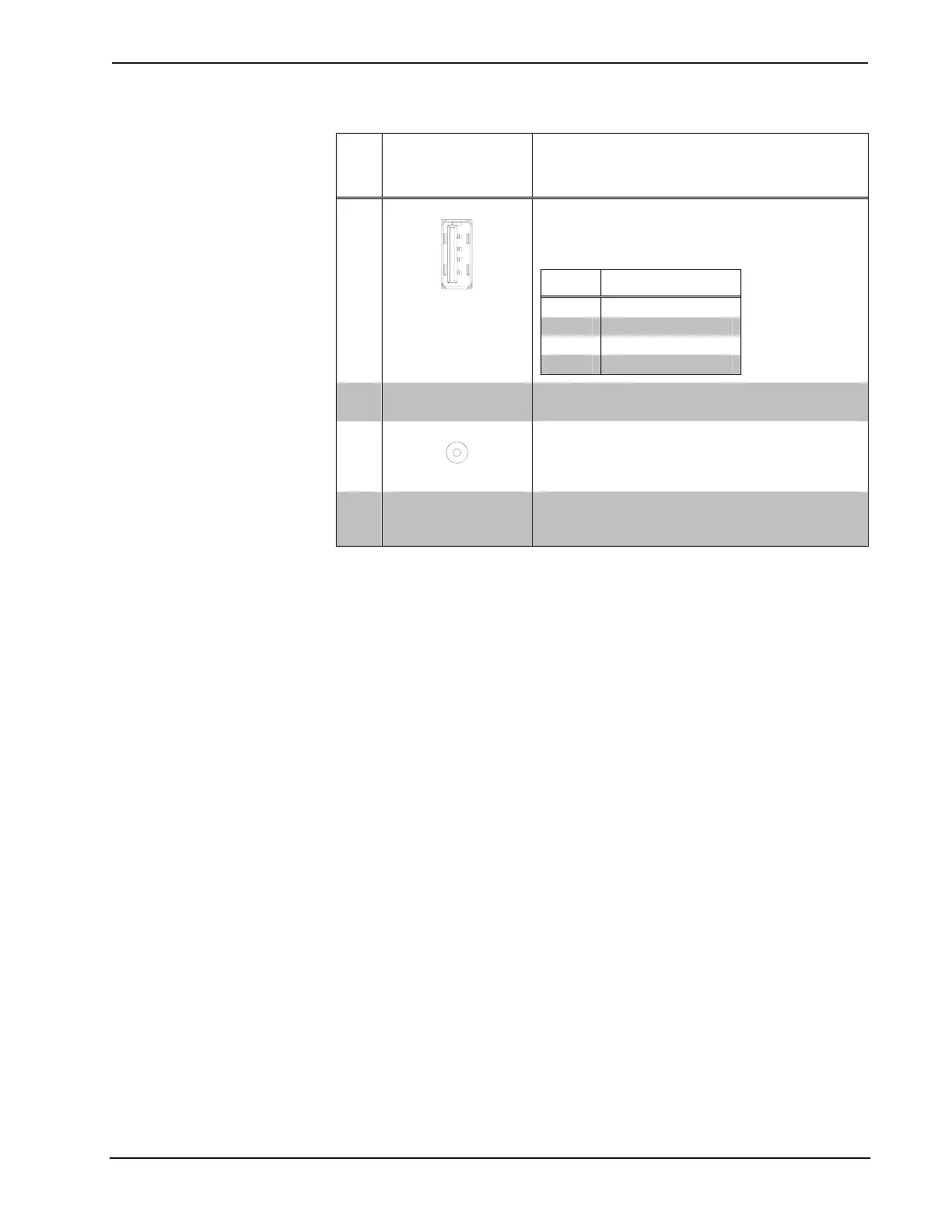

Connectors, Controls & Indicators (Continued)
# CONNECTORS,
CONTROLS &
INDICATORS
DESCRIPTION
10
USB
1
2
3
4
(1) USB Type A female;
USB 2.0 port for keyboard, mouse and
storage devices
2, 3
PIN DESCRIPTION
1 +5 VDC
2 Data -
3 Data +
4 Ground
11 Hard Keys
(4) Programmable push buttons below touch
screen
12
12V 3.5A
(1) 2.5 mm barrel DC power jack;
12 Volt DC power input (power supply included);
Power pack can also be used to charge internal
battery
13
Docking Station
Connector
Mates with TPMC-8X-DS or
TPMC-8X-DSW Docking Station/Charger
(sold separately)
1. For programming details, refer to “Hard Buttons” on page 23.
2. Refer to Web site or contact Crestron for a current list of compatible devices and embedded
applications. To ensure reliable performance, new device drivers and applications are available only
from Crestron through firmware updates.
3. Only generic USB devices (i.e., simple keyboard, mouse and external storage) should be used with the
TPMC-8X-GA. Any complex USB devices (e.g. a storage device with a built-in fingerprint scanner)
will not have the proper support on the touch screen.
Operations Guide – DOC. 7078C Isys
®
8.4” WiFi Touch Screen: TPMC-8X-GA • 11
