Isys™ 5.7” Wireless Touchpanels Crestron TPS-6X Series
To check the quality of your link status, from the MAIN MENU, touch Diagnostics
to open the DIAGNOSTICS menu (refer to “DIAGNOSTICS” on page 36). On the
DIAGNOSTICS menu, touch WIRELESS, then touch Link Quality.
The screen will display the Received Signal Strength at Panel and Received Signal
Strength at Gateway meters, as shown in the following illustration.

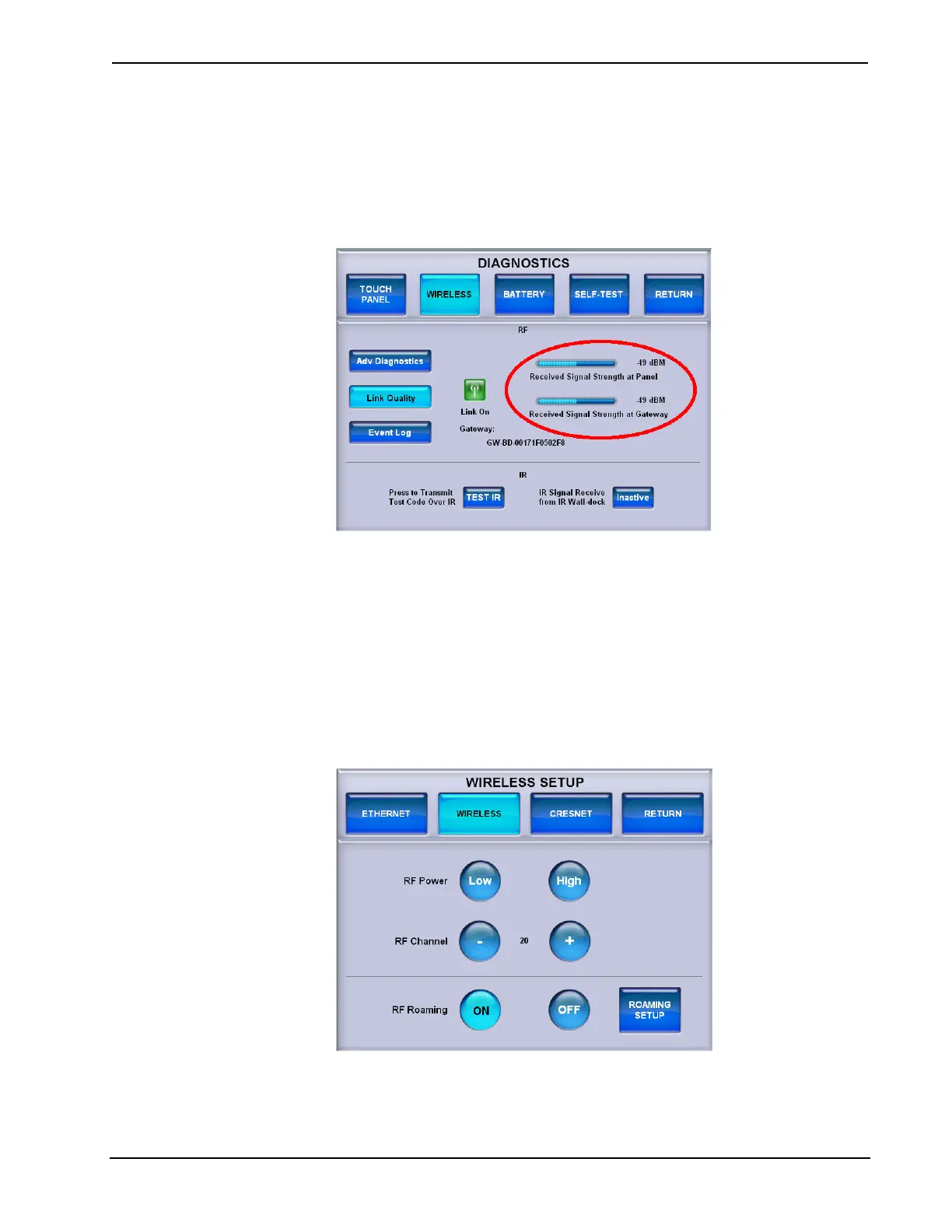

DIAGNOSTICS Menu Showing Wireless Link Quality
Other buttons on the DIAGNOSTICS menu should only be used under the
supervision of a Crestron customer service representative during telephone support.
For more information regarding wireless setup, refer to “Appendix A: The RF
Spectrum” on page 57 and “Appendix B: Optimum RF Reception Guidelines”
which starts on page 58.
Touch MANUAL CONFIG to enter the manual configuration menu where you can
change the RF Power and set the RF Channel, as shown in the following illustration.
When using manual configuration, these should be selected to match the gateway
prior to starting the acquire process.
WIRELESS SETUP (MANUAL CONFIG Menu)
28 • Isys™ 5.7” Wireless Touchpanels: TPS-6X Series Operations Guide – DOC. 6875B
