Product Manual — Doc. 7927K TSW-560, TSW-760, and TSW-1060 • 9
To add or edit an entry, tap Add/Edit next to the corresponding entry. The Ethernet Setup - Edit IP
Table screen is displayed.

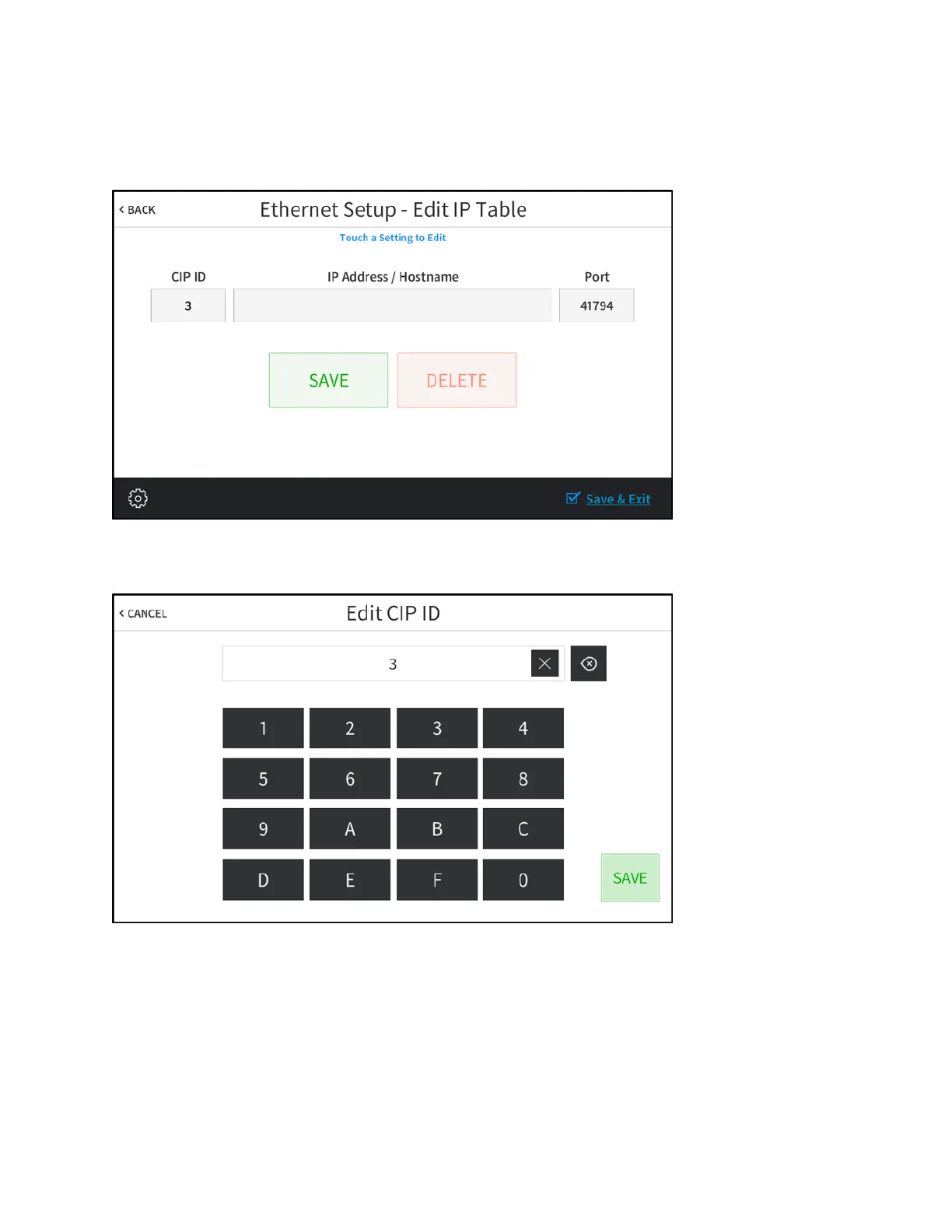

Ethernet Setup - Edit IP Table Screen
Tap the CIP ID text field to display the on-screen hex keypad.
On-Screen Hex Keypad
l Use the keypad to make the new entry.
l Tap the clear button in the text field to clear any previous entry.
l Tap the delete button to delete the last digit.
l Tap SAVE to save a new entry or tap < CANCEL to discard any changes. The display returns
to the Ethernet Setup - Edit IP Table screen.
