CPS3-1M-2M-DED
22

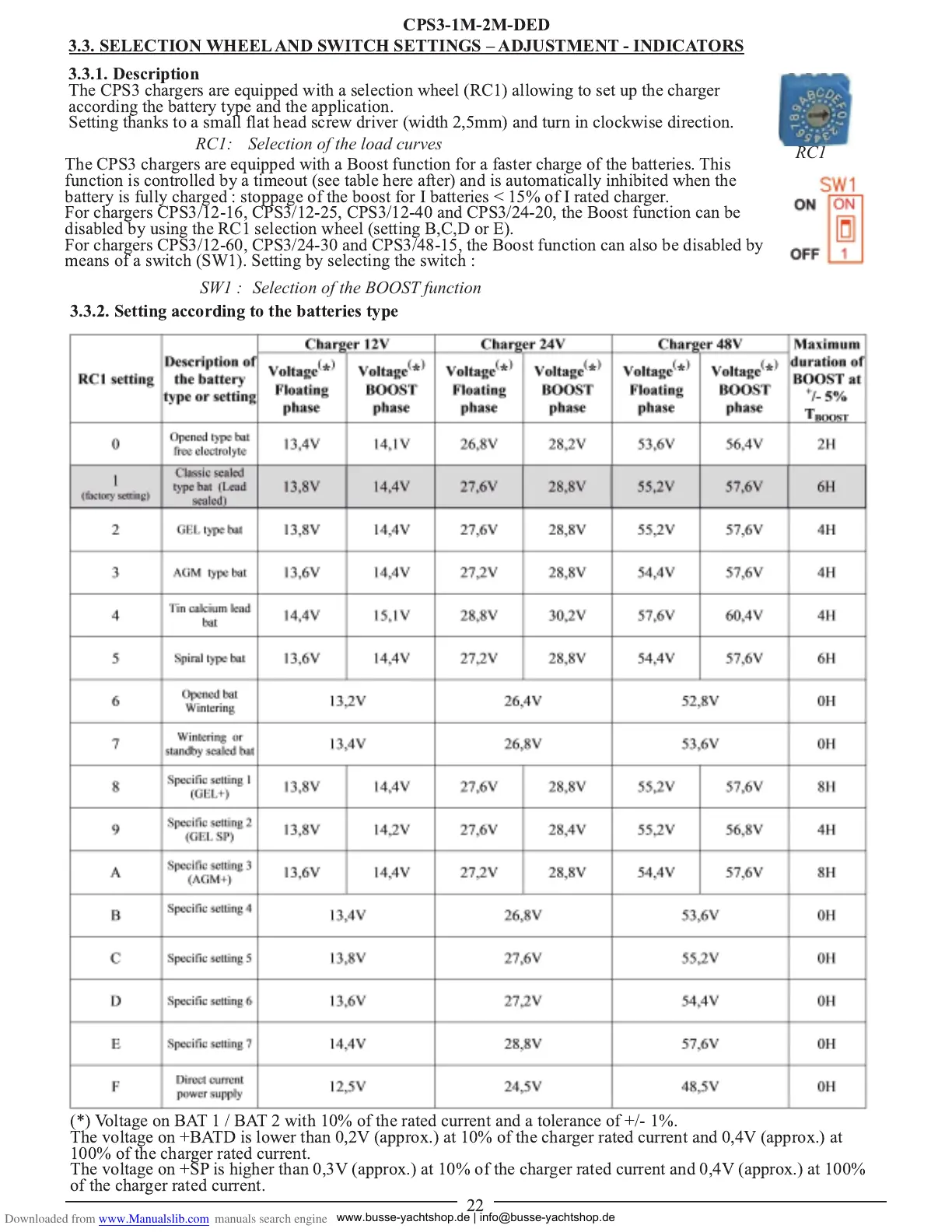

3.3. SELECTION WHEEL AND SWITCH SETTINGS – ADJUSTMENT - INDICATORS
3.3.1. Description
The CPS3 chargers are equipped with a selection wheel (RC1) allowing to set up the charger
according the battery type and the application.
Setting thanks to a small flat head screw driver (width 2,5mm) and turn in clockwise direction.
RC1: Selection of the load curves
The CPS3 chargers are equipped with a Boost function for a faster charge ofthe batteries. This
function is controlled by a timeout (see table here after) and is automatically inhibited when the
battery is fully charged : stoppage ofthe boost for I batteries < 15% ofI rated charger.
For chargers CPS3/12-16, CPS3/12-25, CPS3/12-40 and CPS3/24-20, the Boost function can be
disabled by using the RC1 selection wheel (setting B,C,D or E).
For chargers CPS3/12-60, CPS3/24-30 and CPS3/48-15, the Boost function can also be disabled by
means ofa switch (SW1). Setting by selecting the switch :
SW1 : Selection of the BOOST function
3.3.2. Setting according to the batteries type
(*) Voltage on BAT 1 / BAT 2 with 10% ofthe rated current and a tolerance of +/- 1%.
The voltage on +BATD is lower than 0,2V (approx.) at 10% ofthe charger rated current and 0,4V (approx.) at
100% of the charger rated current.
The voltage on +SP is higher than 0,3V (approx.) at 10% ofthe charger rated current and 0,4V (approx.) at 100%
ofthe charger rated current.
RC1
