This section of the manual describes how to configure the CDi DriveCore amplifier for your application using the front panel user interface. This includes
assigning input channels, editing internal routing and DSP settings, and configuring output mode settings. CDi DriveCore Series amplifiers can be
configured using the built-in Guided Setup or manually using the individual menu options in the Configure Amplifier menu (see Figure 10). Configuration
can also be performed from a PC using HiQnet Audio Architect. For information on configuring the CDi DriveCore amplifiers using Audio Architect, see
"Installing Audio Architect & Conguring the Network" on page 21.
Using the Guided Setup
The Guided Setup walks you through all the steps to configure the amplifier. This includes
assigning input channels, configuring internal DSP wiring and settings, and configuring
output operation.
To congure the amplier using the Guided Setup:
1� From the Home screen, press the MENU button.
2� Select the “Configure Amplifier” option from the menu using the ENCODER.
3� Select the "Guided Setup" option from the menu.
4� Follow the on-screen steps, making selections with the ENCODER. If you wish to exit
the Guided Setup at any time, press the MENU button.
NOTE: After completing the Guided Setup, configuration settings will be retained after power cycling the amp. However, it's a good idea to save the
configuration. The configuration must be saved before loading another device preset or the settings will be lost. See
"Saving Device Presets" on
page 53
for information on saving device presets.
The following sections of this manual will discuss the menus used for configuring the CDi DriveCore amplifier manually.

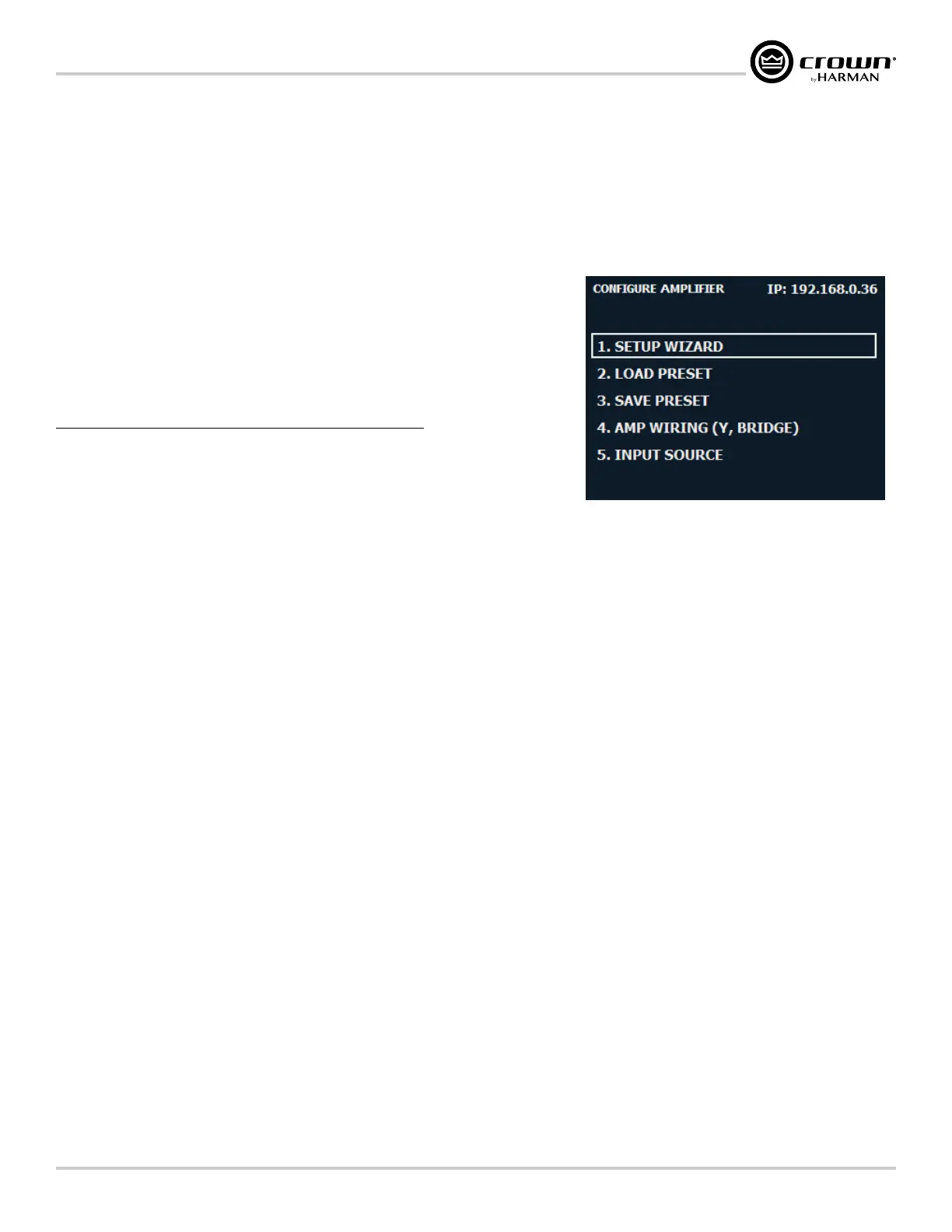

Figure 10: Configure Amplifier menu
