Signal Generator Panel
The signal generator can be used to tune or troubleshoot loudspeakers connected to the
amplifier. The Signal Generator panel (Figure 57) can be accessed by double-clicking
the Signal Generator button from the Main CDi DriveCore Control panel (see Figure
56
).
Available options/parameters:
• Signal Generator Button (Off, On)
Turns the signal generator on or off.
• Amplitude Fader (-60dBFS to 0dBFS)
Adjusts the global level of the signal generator.
• Mixer Faders (-80dBFS to 0dBFS)
Adjust the individual signal generator levels feeding each DSP chain.
• Mute Buttons (Off, On)
Mutes the signal generator signal feeding each DSP chain.
• Type (Pink, White, Sine)
Selects the type of signal to be generated.
• Frequency (20Hz – 20kHz)
Selects the sine tone frequency when the "Sine" type has been selected.
NOTE: Signal Generator settings are stored with device presets.

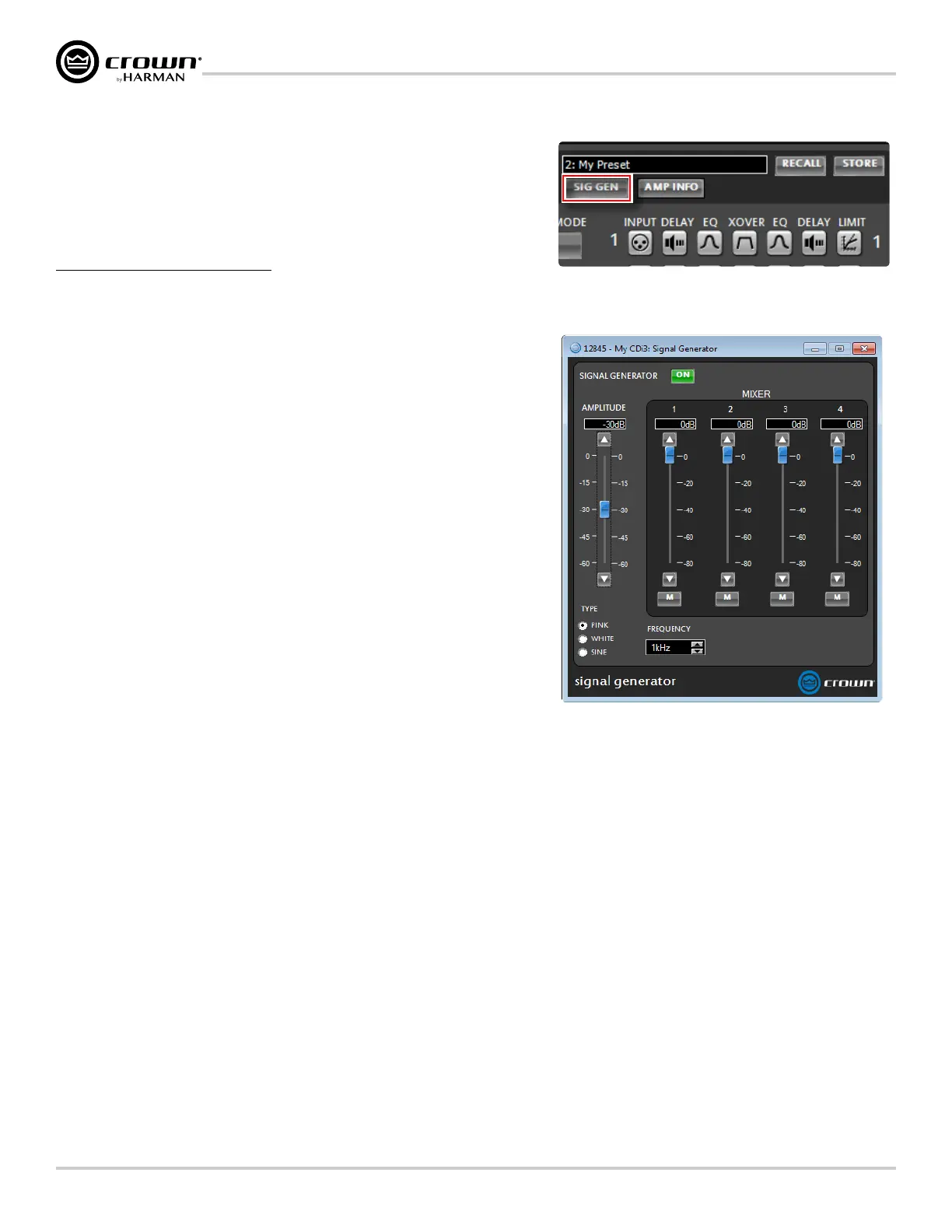

Figure 56: Signal Generator button
Figure 57: Signal Generator panel (4-channel amp model shown)
