I

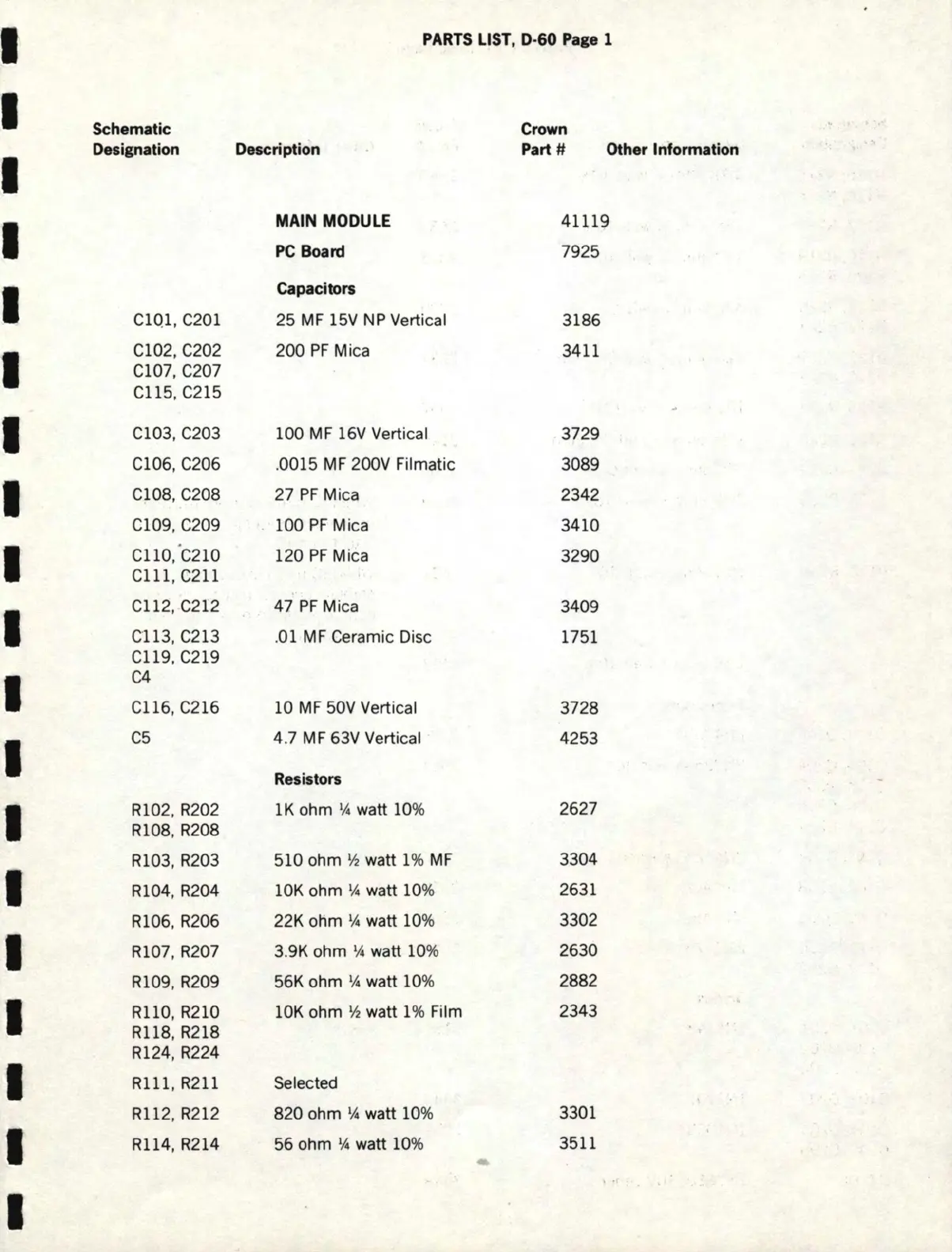

PARTS LIST , D-60 Page 1
I
Schematic Crown
I
Designation Descript i on Part # Other Informati on
I
MAIN MODULE
41119
PC Board 7 925
I
Capacitors
C101, C201 25 MF 15V NP Vertical 3186
I
C102, C202 200 PF Mica
3411
C107,C207
C115, C215
I
C103,C203
100 MF 16V Vertical 3729
C106,C206 .0015 MF 200V Filmatic 3089
I
C108, C208 27 PF Mica 2342
C109, C209 100
PF Mica
3410
I
C110, C210 120 PF Mica
3290
Clll, C211
I
Cl12 , C212 47 PF Mica
3409
C113, C213 .01 MF Ceramic Disc 1751
C119, C219
I
C4
C116, C216 10 MF 50V Vertical
3728
I
C5 4.7 MF 63V Vertical 4253
Re sistors
I
R102, R202
lK ohm ¼ watt 10% 2627
R108, R208
R103, R203
510 ohm
½ watt 1 % MF
3304
I
R104, R204
l0K ohm ¼ watt 10%
2631
R106, R206
22K ohm
¼ watt 10%
3302
I
R107, R207
3.9K ohm
¼ watt 10%
2630
R109, R209
56K ohm
¼ watt 10%
2882
I
Rll0 , R210
l0K ohm ½ watt 1 % Fi lm
2343
R118, R218
R124, R224
I
Rlll, R211 Selected
R112, R212
820 ohm ¼ watt 10%
3301
I
Rl l 4, R214 56 ohm ¼ wa tt 10%
3511
-
I
