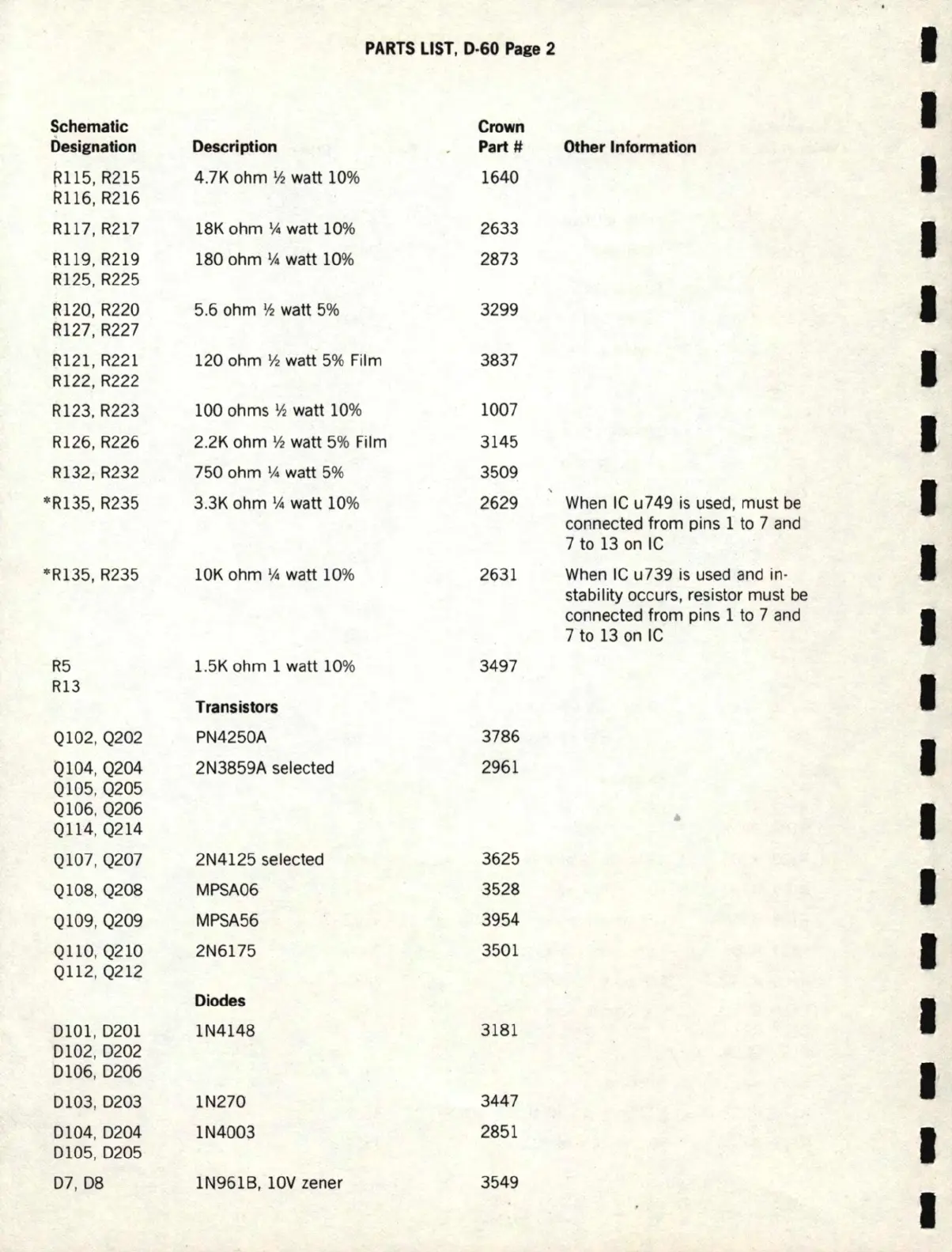

PARTS LIST , 0- 60 Pag e 2
I
Schematic Cr own
I
Desi g nation Description
Part # Other Information
Rll5, R215
4.7K
ohm ½ watt 10% 1640
I
Rll6, R216
R117, R217
18K
ohm ¼ watt 10% 2633
I
Rll9 , R219 180 ohm ¼ watt 10% 2873
R125, R225
I
R120, R220
5.6 ohm ½ watt 5% 3299
R127, R227
R121, R221 120 ohm ½ watt 5% Film 3837
I
R122, R222
R123, R223 100 ohms ½ watt 10%
1007
I
R126, R226 2.2K ohm ½ watt 5% Film 3145
R132, R232 750 ohm ¼ watt 5%
3509
*R135, R235 3.
3K ohm ¼ watt 10% 2629 When IC u749 is used, must be
I
connected from pins 1 to 7 and
7
to 13 on IC
I
*R135, R235 lOK ohm
1
/4 watt 10% 2631 When IC u739 is used and in-
stability occurs, resistor must
be
connected from pins 1 to 7 and
I
7 to 13 on IC
R5
1.5K ohm 1 watt 10% 3497
R13
I
Transisto rs
Q102, Q202
PN4250A
3786
I
Q104, Q204
2N3859A selected
2961
Q105, Q205
Q106, Q206
Qll4 , Q214
•
I
Q107, Q207
2N4125 selected
3625
Q108, Q208 MPSA06
3528
I
Q109, Q209
MPSA56
3954
QUO , Q210
2N6175
3501
I
Qll2 , Q212
Diodes
I
0101, 0201 1N4148
3181
0102 , 0202
0106
, 0206
I
0103, 0203 1N270
3447
0104 , 0204
1N4003 2851
I
0105, 0205
07 , 08
1N961B, lOV zener 3549
I
