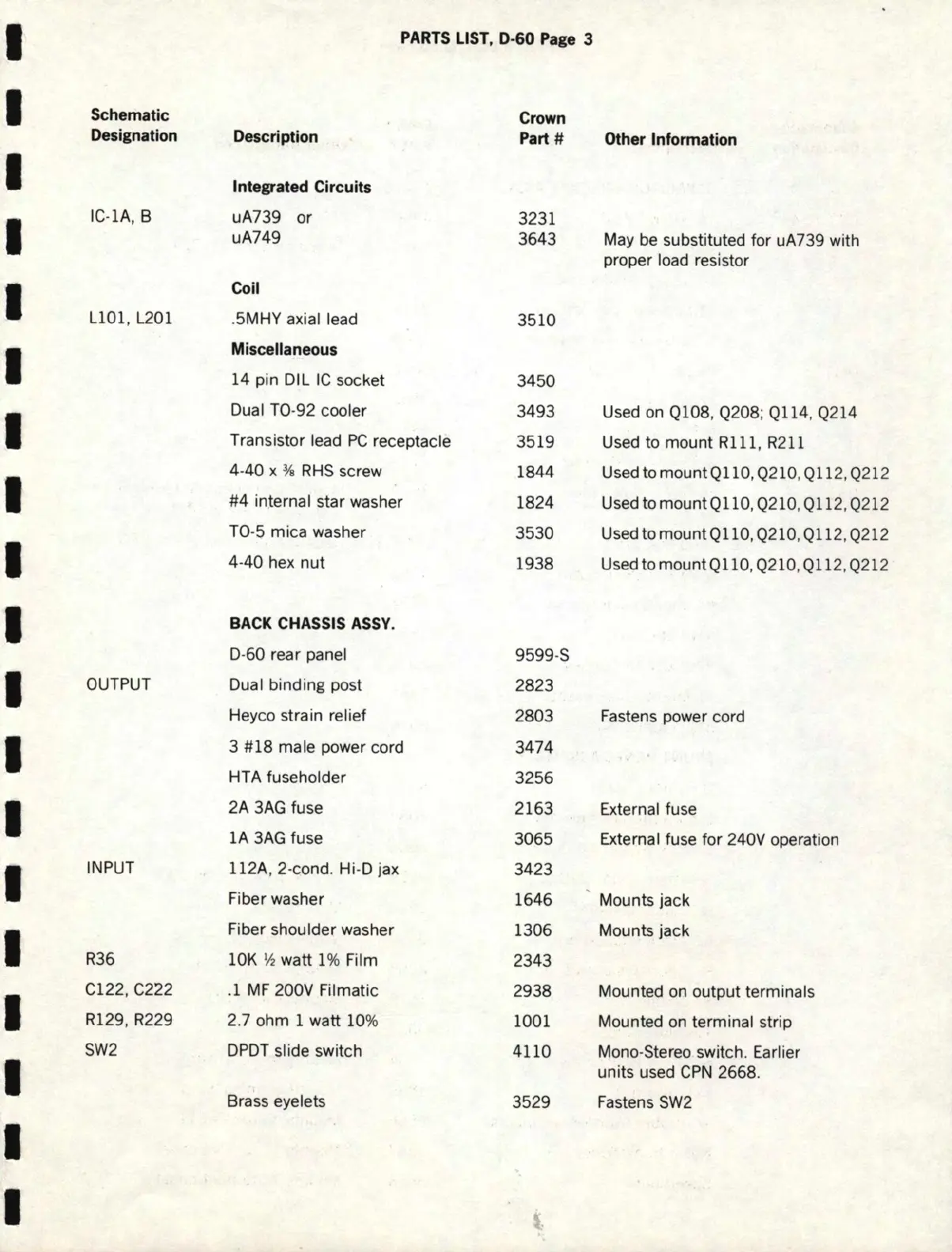

PARTS LIST , D-60 Page 3
I
Schematic
Crown
Designation
Description
Part #
Other Information
I
Integrated Circuits
I
IC - lA, B
uA739
or
3231
uA749
3643
May be substituted for uA739 with
proper load resistor
I
Coil
LlOl , L201
.5MHY axial lead
3510
I
Miscellaneous
14 pin OIL IC socket
3450
I
Dual T0 -92 cooler
3493
Used on
Ql08 , Q208; Ql 14, Q214
Transistor lead
PC receptacle
3519
Used
to mount Rlll, R211
4-40 x 3/a RHS screw
1844
Used to mountQl 10, Q210, Q112, Q21 2
I
#4 internal star washer
1824
Used to mountQl 10, Q210, Ql 12 , Q212
T0 -5 mica washer
3530
UsedtomountQllO, Q210, Qll2 , Q212
I
4- 40 hex nut
1938
UsedtomountQllO , Q210, Q112, Q21 2
I
BACK CHASSIS ASSY .
D- 60 rear panel
9599-S
I
OUTPUT Dual binding post
2823
Heyco strain relief
2803
Fastens power cord
I
3 #18 male power cord
3474
HTA fuseholder
3256
I
2A 3AG fuse
2163
External fuse
lA 3AG fuse
3065 External fuse for 240V operation
I
INPUT
112A, 2-cond.
Hi -D jax
3423
Fiber washer
1646
Mounts jack
I
Fiber shoulder washer
1306 Mounts jack
R36
lOK ½ watt 1 % Film
2343
I
Cl22 , C222 .1 MF 200V Filmatic
2938 Mounted on output terminals
Rl29, R229 2.7 ohm 1 watt 10%
1001 Mounted on terminal strip
SW2
DPDT slide switch
4110
Mono-Stereo switch. Earlier
I
units used CPN 2668.
Brass eyelets
3529 Fastens
SW2
I
