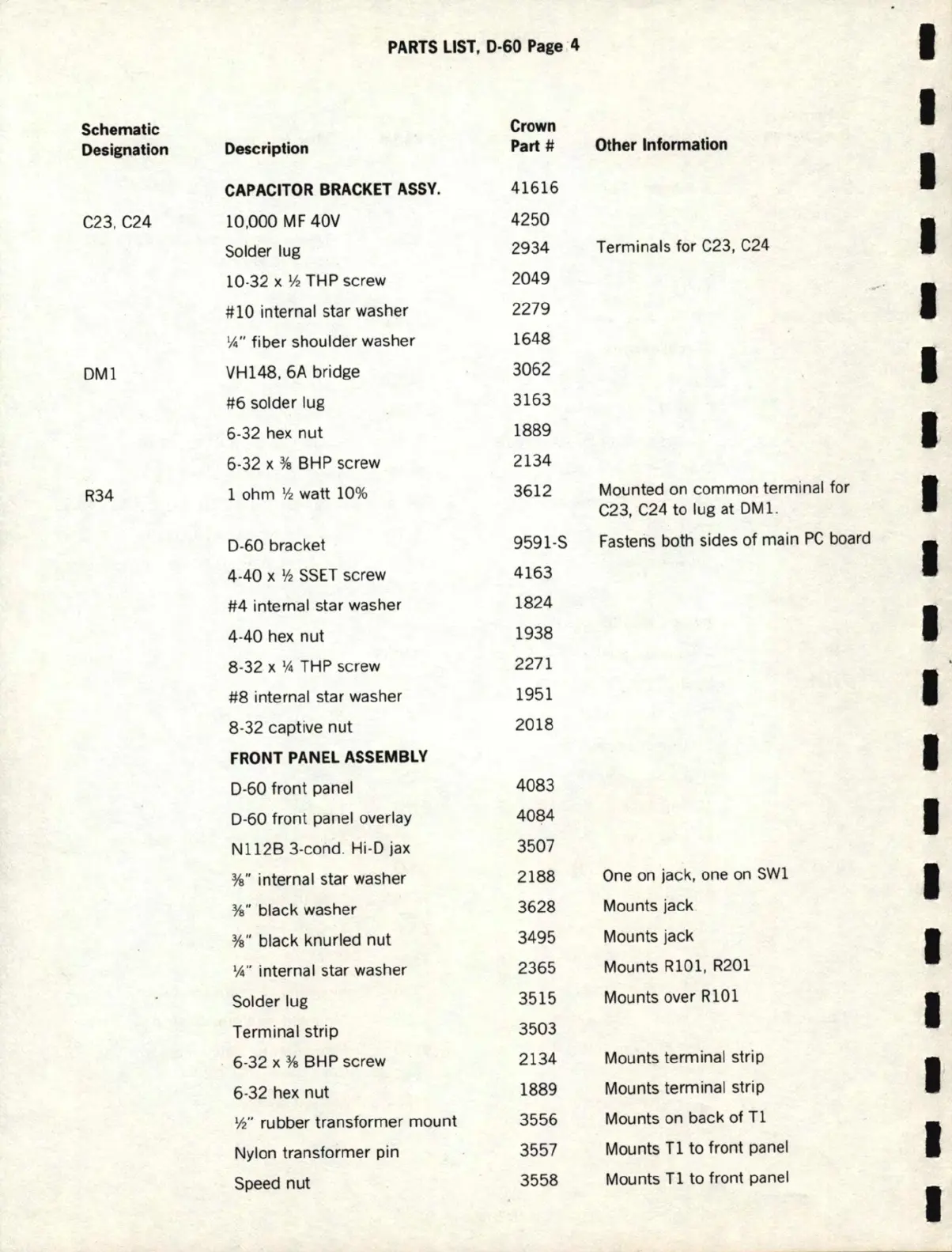

PARTS
LIST
, 0-60
Page
4
I
Schematic
Crown
I
Designation
Descr
i
ption
Part
# Other Information
CAPACITOR
BRACKET
ASSY
.
41616
I
C23,C24
10,000
MF
40V
4250
I
Solder lug
2934 Terminals for C23,
C24
10-32 x
½
THP screw
2049
#10
internal star washer
2279
I
¼"
fiber shoulder washer 1648
DMl
VH148, 6A
br
idge
3062
I
#6
solder
lug
3163
6-32 hex
nut
1889
I
6-32 x
¾
BHP screw
2134
R34
1 ohm
½
watt 10%
3612 Mounted on common terminal for
I
C23, C24 to lug at
OM
1.
D-
60
bracket 9591-S Fastens both sides of main
PC
board
I
4-40 x
½
SSET
screw 4163
#4
internal star washer 1824
4-
40
hex
nut
1938
I
8-32 x
¼
THP screw 2271
#8
internal star washer 1951
I
8-32 captive nut
2018
FRONT
PANEL
ASSEMBLY
I
D-60 front panel
4083
D-
60
front panel overlay 4084
I
Nl12B
3-cond. Hi-D jax 3507
¾"
internal star washer
2188 One on jack, one on
SWl
I
¾"
black washer
3628
Mounts jack
¾"
black knurled nut
3495 Mounts jack
I
¼"
internal star washer
2365 Mounts
RlOl,
R201
Solder lug
3515
Mounts
ove
r
RlOl
I
Terminal strip
3503
6-32 x
¾
BHP screw
2134 Mounts terminal strip
I
6-32 hex
nut
1889
Mounts terminal
str
ip
½"
rubber transformer mount
3556 Mounts on back of T 1
Nylon transformer pin
3557 Mounts
Tl
to
front panel
I
Speed nut
3558
Mounts
Tl
to
front panel
I
