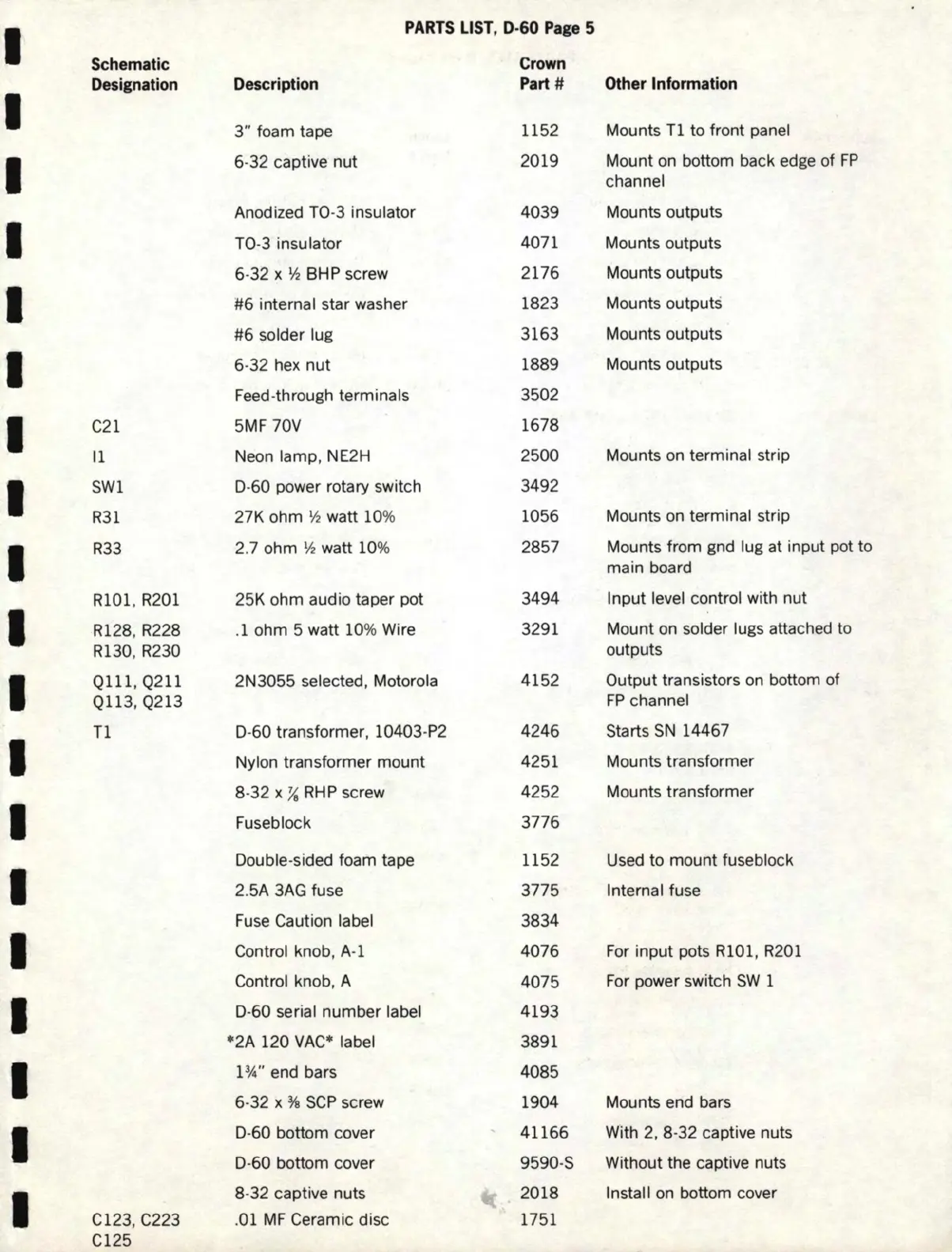

PARTS LIST, 0 -
60
Page 5
Schematic
Crown
Designation Descripti
on
Part # Other Information
I
3"
foam tape
1152 Mounts
Tl
to
front panel
I
6-32 captive nut
2019 Mount on bottom back edge
of
FP
channel
Anodized T0-3 insulator 4039 Mounts outputs
I
T0
-3
insulator
4071 Mounts outputs
6-32 x
½ BHP screw
2176
Mounts outputs
I
#6 internal star washer
1823 Mounts outputs
#6 solder lug
3163 Mounts outputs
I
6-32 hex
nut
1889 Mounts outputs
Feed-through terminals 3502
I
C21
5MF 70V
1678
11
Neon lamp, NE2H 2500
Mounts on terminal st
rip
I
SWl
D-60 power rotary switch
3492
R31
27K ohm ½ watt 10%
1056
Mounts on terminal strip
I
R33
2.7 ohm ½ watt 10%
2857
Mounts from gnd lug at input pot to
main board
RlOl,
R201
25K ohm audio taper pot
3494
Input level control with nut
I
Rl28,
R228
.1
ohm
5 watt 10% Wire
3291
Mount on solder lugs attached
to
Rl30,
R230
outputs
I
Qlll,
Q211
2N3055 selected, Motorola 4152
Output transistors on bottom of
Q113, Q213
FP
channel
Tl
D-
60
transformer, 10403-P2
4246 Starts
SN
14467
I
Nylon transformer
mount
4251
Mounts transformer
8-32 x
¼
RHP
screw 4252
Mounts transformer
I
Fuseblock
3776
Double-sided foam tape
1152
Used
to
mount fuseblock
I
2.5A
3AG
fuse 3775 Internal fuse
Fuse
Caution label 3834
I
Control knob,
A-1
4076
For
inp
ut
pots
RlOl,
R201
Control knob, A
4075
For power switch
SW
1
I
0-60 serial number label 4193
*2A
120 VAC* label
3891
I
l ¾" end bars 4085
6-32 x
¾
SCP
screw 1
904
Mounts end bars
I
0-60 bottom cover 41166 With 2, 8-32 captive nuts
0-60 bottom cover 9590-S Without the captive nuts
I
8-32 captive nuts 2018 Install on bottom cover
Cl
23,C223
.01
MF
Ceramic disc 1751
Cl25
